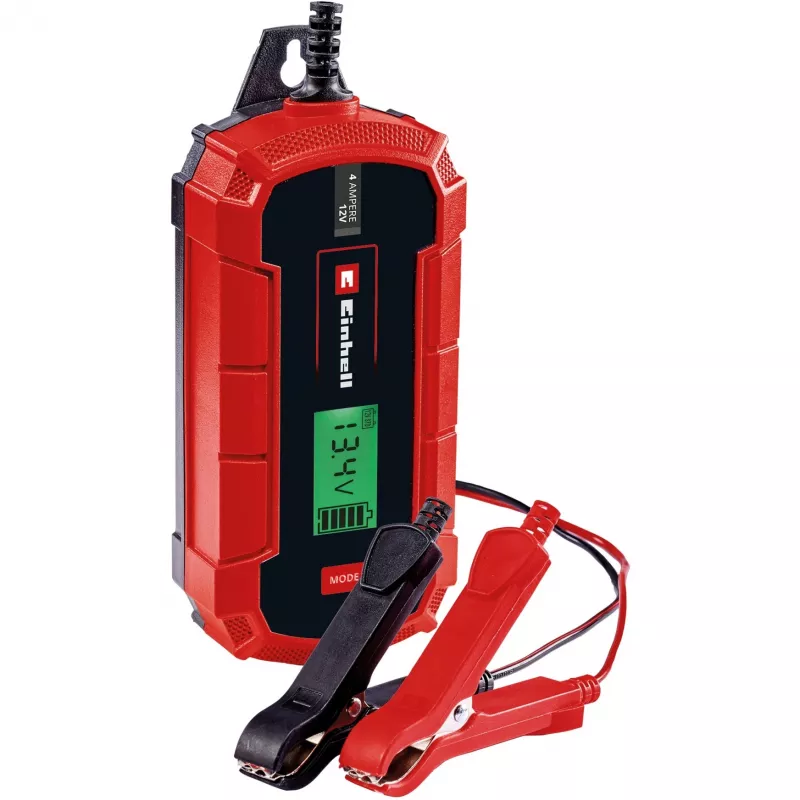

Cargador Einhell CE-BC 4 M 12 V negro rojo

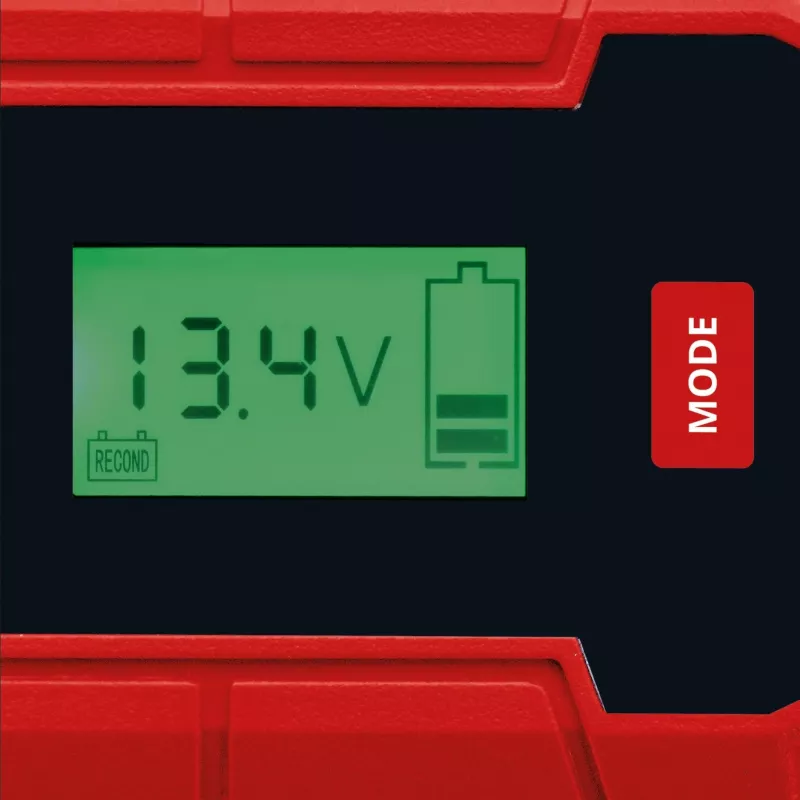

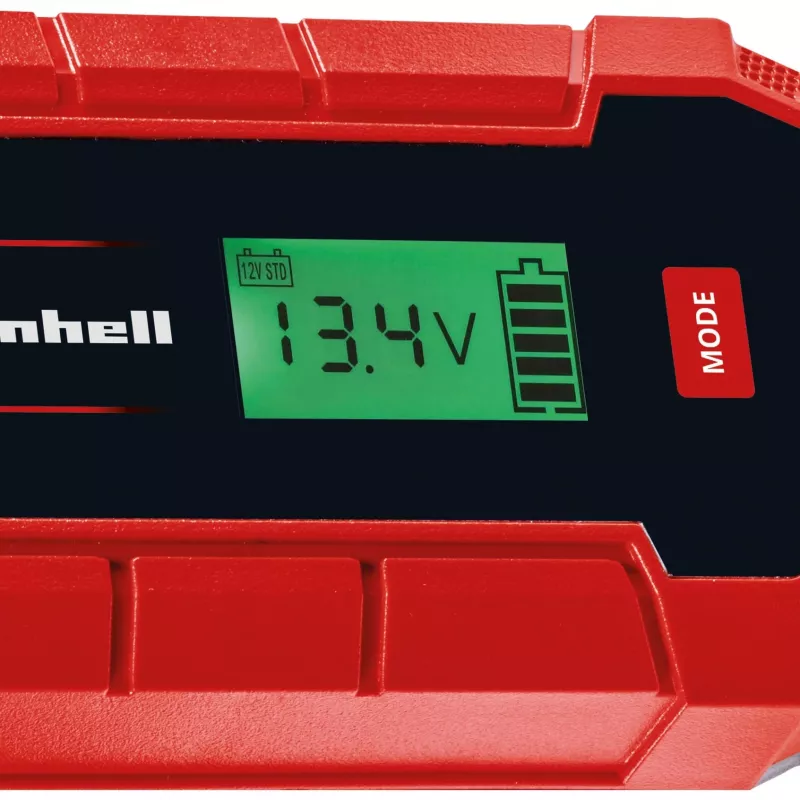

The Einhell CE-BC 4 M 12 V charger is an intelligent microprocessor-controlled battery charger designed for modern high-performance vehicle batteries. It supports 12 V lead-acid battery types including gel, AGM, zero- and low-maintenance batteries, and offers multi-stage charging, trickle charge and special modes to maximize service life while maintaining full performance. The compact unit includes an LCD that displays battery voltage, charge status and charger mode, and it meets IP65 protection for dust and water jets.

Advantages

The CE-BC 4 M analyzes the connected battery and condition automatically, then selects the optimum charging mode to enable fast, low-stress charging. Special functions include trickle charge for long idle periods, a winter mode for temperatures below 5 °C, a recondition mode for deeply discharged batteries and a supply mode to use the charger as a power source. Built-in protections against overcharge, short circuit and reversed polarity plus fully insulated clamps improve safety during use.

Suitable for

• 12 V car batteries (lead-acid, gel, AGM)
• Motorcycle and scooter batteries
• Seasonal or stored vehicles requiring long-term maintenance charging

Key specifications

• Brand: EINHELL
• Model: CE-BC 4 M (MPN 1002225)
• EAN: 4006825640311
• Input: 220–240 V ~ 50 Hz
• Battery voltage: 12 V
• Protection class: IP65
• Functions: multi-stage charging, trickle charge, winter mode, recondition mode, supply mode
• Display: LCD for battery voltage, charge status and mode

How to use

Connect the charger to the mains (220–240 V, 50 Hz) and attach the insulated clamps to the battery terminals, observing correct polarity. The CE-BC 4 M will automatically detect battery voltage and condition and select the appropriate charging program; monitor the LCD to follow charge progress and mode. Use the trickle charge mode to maintain batteries during long idle periods, and the winter mode when ambient temperature is below 5 °C. For deeply discharged batteries, select the recondition mode before normal charging.

Recommendations

Ensure clamps are connected correctly; the display indicates reversed polarity and fault conditions. Mount the charger using the suspension eyelet for secure placement and keep the device protected from heavy water exposure despite its IP65 rating. Use the trickle charge for seasonal storage to extend battery life and avoid deep discharges.
