Cargador para dispositivos móviles RAM Mounts RAM-GDS-CHARGE-V7B1U — cargador USB para interior, entrada 10–30 V, salida máx. 9 V, 2,5 A, cable de 1,2 m, negro/rojo

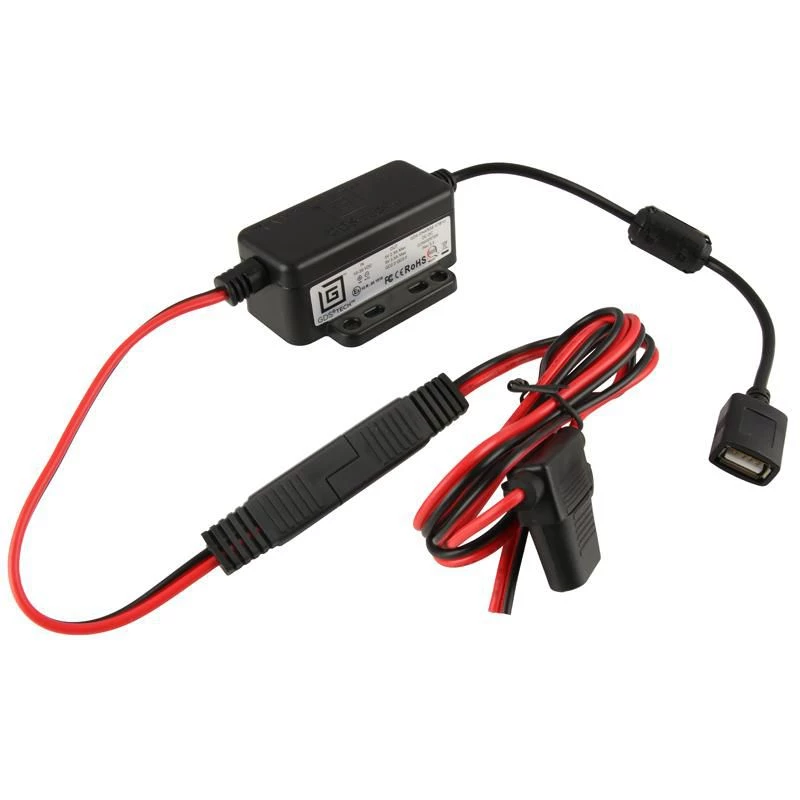

The RAM Mounts GDS® Modular Hardwire Charger (RAM-GDS-CHARGE-V7B1U) is an indoor USB Type A power solution designed for vehicle interiors and fixed indoor installations. It accepts a 10–30 V DC input and supplies up to 9 V output for compatible devices, with a maximum supported current of 2.5 A. The charger features built-in protections against over-voltage, reverse polarity and short circuits and is supplied with a 1.2 m cable in black and red.

Advantages

The modular hardwire design allows quick disconnect of the female USB Type A connector so any USB Type A charging cable can be attached or removed without rewiring. Built-in protection circuits provide safety for connected devices. The unit supports a broad input voltage range (10–30 V), making it suitable for various vehicle electrical systems and indoor 12/24 V installations.

Suitable for

• Powering mobile devices that accept 5 V and draw 2.5 A or less
• Vehicle interiors, fleet vehicles and other 12/24 V installations
• Fixed indoor installations requiring a hardwired USB power outlet

Key specifications

• Model: RAM-GDS-CHARGE-V7B1U
• Connector: Female USB Type A
• Input voltage: 10–30 V DC
• Maximum output voltage: 9 V
• Maximum current (adapter): 2.5 A
• Cable length: 1.2 m
• Colors: black/red
• Protections: over-voltage, reverse polarity, short-circuit

How to use

Install the charger by hardwiring the input leads to the vehicle or installation power source within the specified 10–30 V DC range. Attach a USB Type A charging cable to the female USB Type A connector and plug the cable into the mobile device. To replace or upgrade the charger components, use the quick disconnect to unplug the power connector and attach the new module without rewiring.

Recommendations

Use only devices that accept 5 V USB input and draw 2.5 A or less. Verify vehicle or installation voltage is within 10–30 V before hardwiring. Avoid exposing the unit to moisture and consult a qualified installer for permanent hardwire installations.
