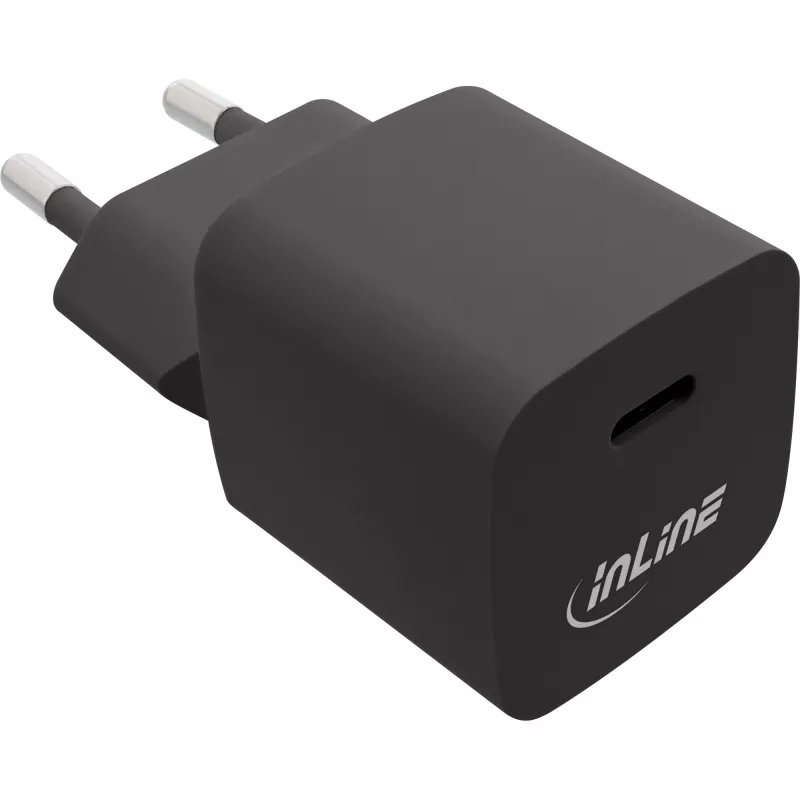

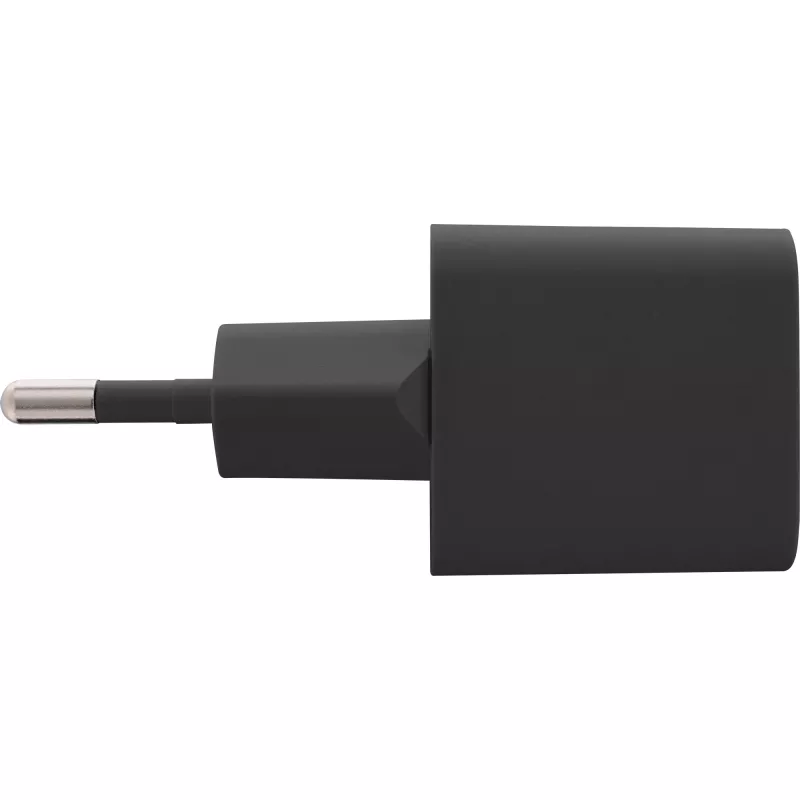

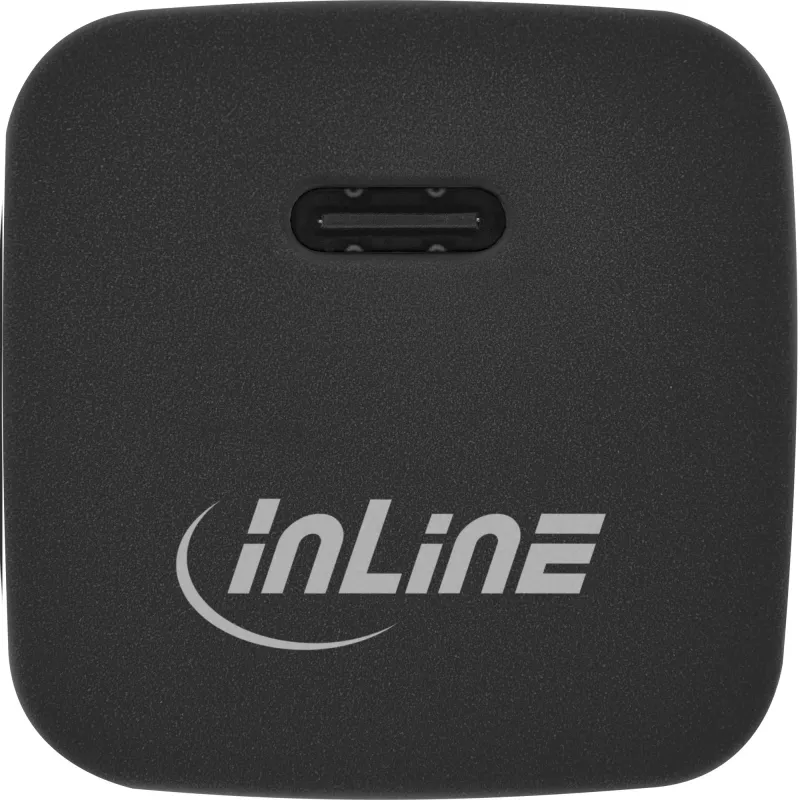

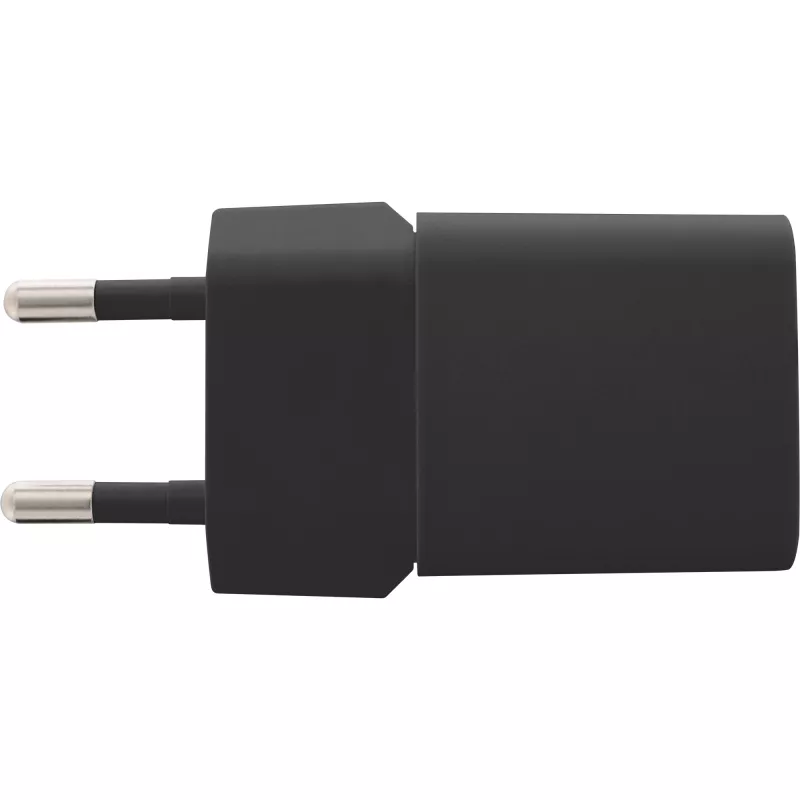

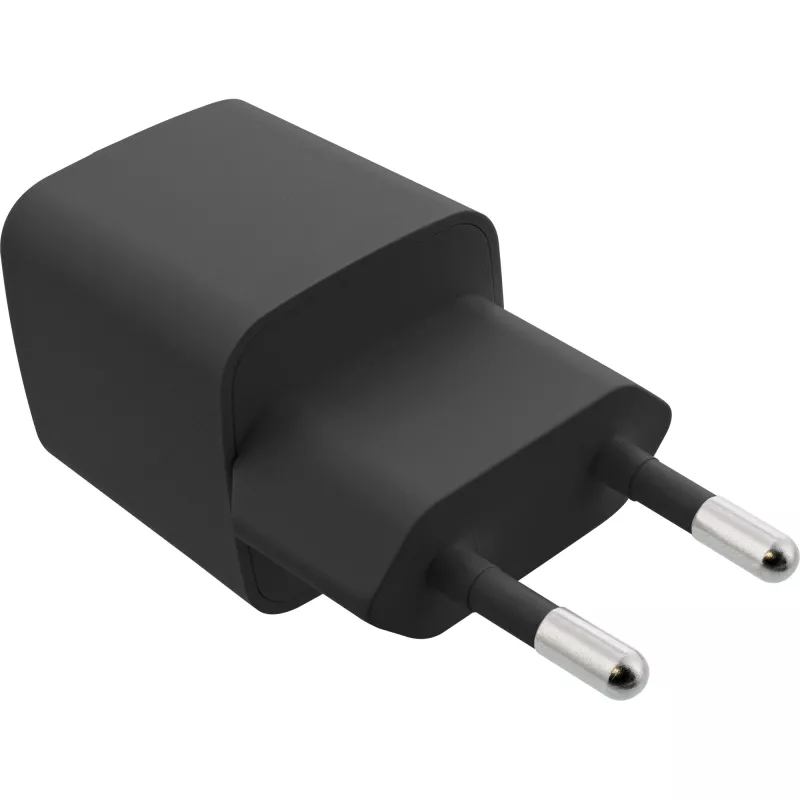

Cargador USB InLine Single USB-C, Power Delivery, PPS, 33W, negro

Powerful thanks to GaN technology:Delivers up to 33 W via USB-C with particularly high energy efficiency and a compact design.
Supports Power Delivery 3.0 & PPS:Flexible fast charging for a wide range of devices – automatically optimises voltage and current.
Integrated intelligent protection functions:Protection against overheating, overvoltage and short circuits – for permanently safe operation.
Universal input voltage 100–240 V:Can be used worldwide – ideal for travelling, field service or international projects.
Compact design for maximum mobility:Extremely space-saving – fits comfortably in any bag or laptop bag.

The InLine® GaN USB-C power supply with 33 W output combines state-of-the-art charging electronics with a compact design for mobile and professional use. The gallium nitride (GaN) technology used enables particularly efficient charging with minimal heat generation.
Power Delivery 3.0 and Programmable Power Supply (PPS) are supported via the USB-C socket. This makes the power supply compatible with a wide range of modern devices – from smartphones and tablets to notebooks with USB-C charging ports. The charger dynamically adjusts the voltage and delivers exactly the power required.
Intelligent protection functions ensure maximum safety during charging: in the event of overheating, the device switches off automatically and resumes charging as soon as a non-critical temperature is reached. The power supply is also protected against overvoltage and short circuits.

Input voltage: 100-240 VAC, 50/60 Hz
USB-C output voltage (PD 3.0): DC 5.0 V / 3.0 A; 9.0 V / 3.0 A; 12.0 V / 2.5 A; 15.0 V / 2.0 A; 20.0 V / 1.5 A
Output voltage (PPS): DC 3.3-11.0 V / 3.0 A; 3.3-16.0 V / 2.0 A
Average operating efficiency: up to 90.95%
Efficiency at low load (10%): up to 84.31%
Power consumption at zero load: up to 0.06 W
Dimensions: 70 x 31 x 31 mm
Weight: approx. 51 g

InLine USB Charger Single USB-C, Power Delivery, PPS, 33W, black. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 11 V. USB Type-C ports quantity: 1, Power protection features: Short circuit, Surge protection. Product colour: Black

How to use

Plug the charger into a compatible 100–240 V AC wall outlet, then connect your device using a USB-C cable. The charger will negotiate the appropriate voltage and current with the connected device using Power Delivery and PPS. Monitor the device during the first use to confirm proper charging behaviour. Unplug the charger from the outlet when not in use.

Recommendations

Use a high-quality USB-C cable rated for the required power. Avoid exposing the charger to moisture or extreme temperatures and do not use it outdoors. If a device does not charge as expected, verify cable compatibility and connection, and consult the device manufacturer for supported charging profiles.
