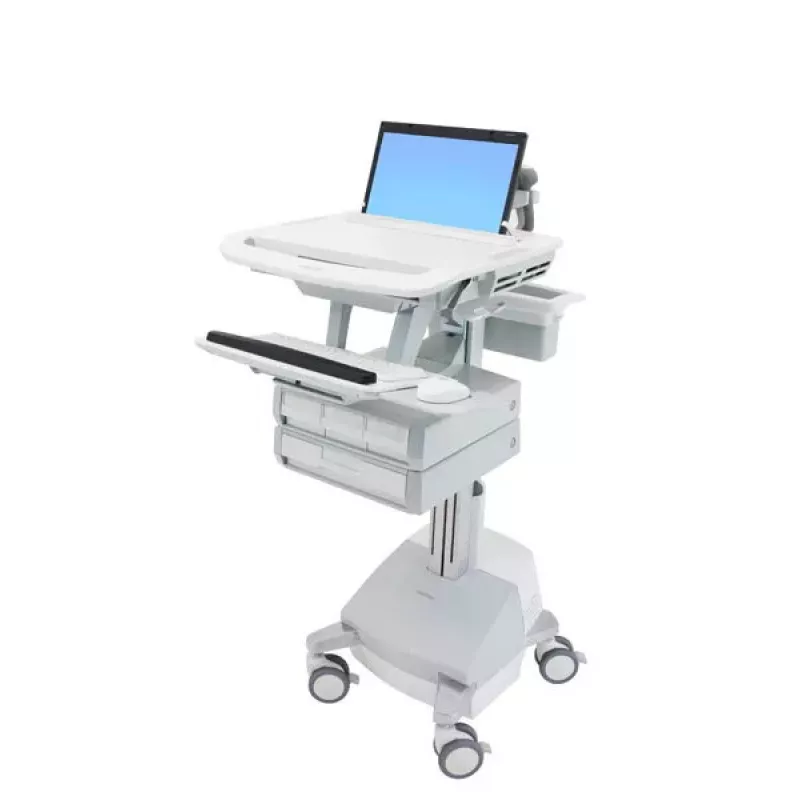

Carro multimedia Ergotron StyleView Aluminio Gris Blanco

The Ergotron StyleView Multimedia Cart in aluminium grey and white is a certified, mobile power system designed for healthcare and mobile workstation use. Constructed from aluminium, plastic and zinc steel, it supports multimedia hardware including laptops up to 17.3" diagonal and provides up to 51 cm of sit-to-stand height adjustment while carrying up to 68.5 kg. The cart’s compact footprint, ultra-smooth gliding casters and fifth-generation power system with replaceable batteries make it suitable for space-constrained clinical environments and presentations. The entire cart and power system comply with UL/EN/IEC 60601-1 and meet EMI limits of FCC Part 15 Class A; the unit operates on 230 V AC and is RoHS-compliant.

Advantages

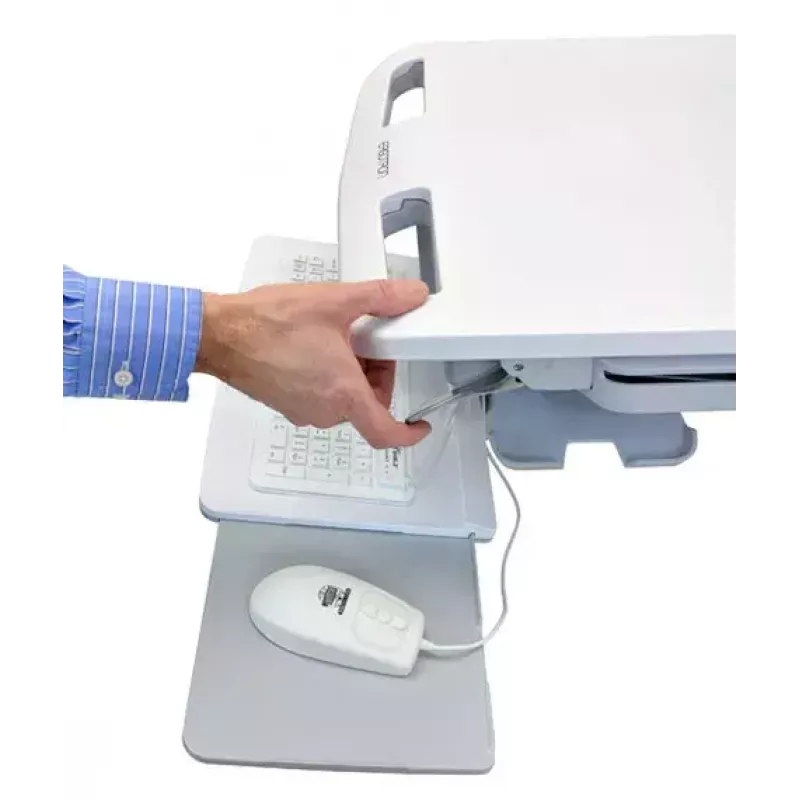

StyleView offers an ergonomic, single-motion sit-to-stand adjustment and an adjustable back-tilt keyboard tray to support users working seated or standing. The cart maneuvers easily across carpeted or hard floors and has an open-architecture design that accommodates most laptops including widescreen models up to 17.3". An auto-locking drawer system enables secure, efficient non-controlled medication management with support for up to 1,000 user PINs when paired with StyleLink software (100 users without StyleLink). Additional drawer rows can be added up to five rows total. The cart has passed Ergotron’s 10,000-cycle motion test for reliable long-term height adjustment.

Suitable for

• Mobile clinical workflows and point-of-care documentation
• Medication dispensing and restocking in non-controlled medication areas
• Multimedia presentations and mobile workstations in hospitals and clinics
• Environments requiring a certified medical power system (UL/EN/IEC 60601-1)

Key specifications

• Brand: ERGOTRON, Model: StyleView (SV44-1141-2)
• Materials: aluminium, plastic, zinc steel
• Height adjustment range (sit-to-stand): up to 51 cm
• Maximum load capacity: 68.5 kg
• Compatible laptop size: up to 17.3" diagonal
• Power: 230 V AC; certified to UL/EN/IEC 60601-1; EMI: FCC Part 15 Class A
• RoHS compliant

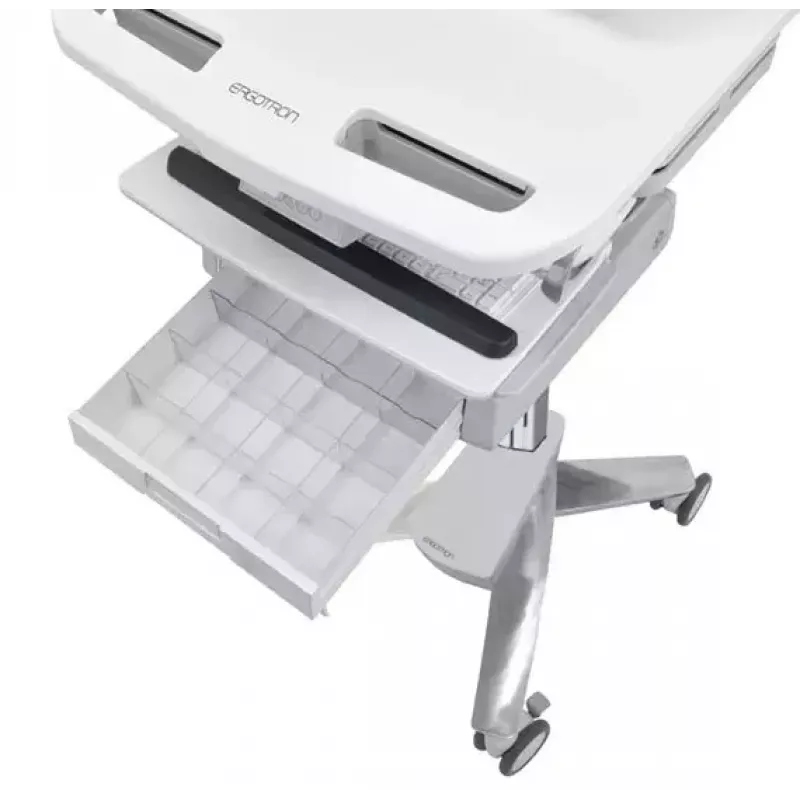

• Auto-locking drawer system; supports up to 1,000 PIN users with StyleLink (100 without)

How to use

Place the cart where clinical access or presentation is required and secure any connected devices. Adjust the workstation height using the single-motion sit-to-stand control to the desired position and set the keyboard tray tilt as needed. Use the smooth casters to move the cart between locations; lock wheels if a fixed position is required. Operate drawers with the auto-locking mechanism for controlled access to medication; when using StyleLink software, configure user PINs according to facility procedures. Follow manufacturer guidance for battery replacement of the fifth-generation power system.

Recommendations

For safety and reliable operation, verify that connected equipment does not exceed the cart’s maximum load (68.5 kg), follow local electrical codes when connecting to 230 V AC, schedule routine checks of casters and the sit-to-stand mechanism, and replace batteries using approved Ergotron parts.
