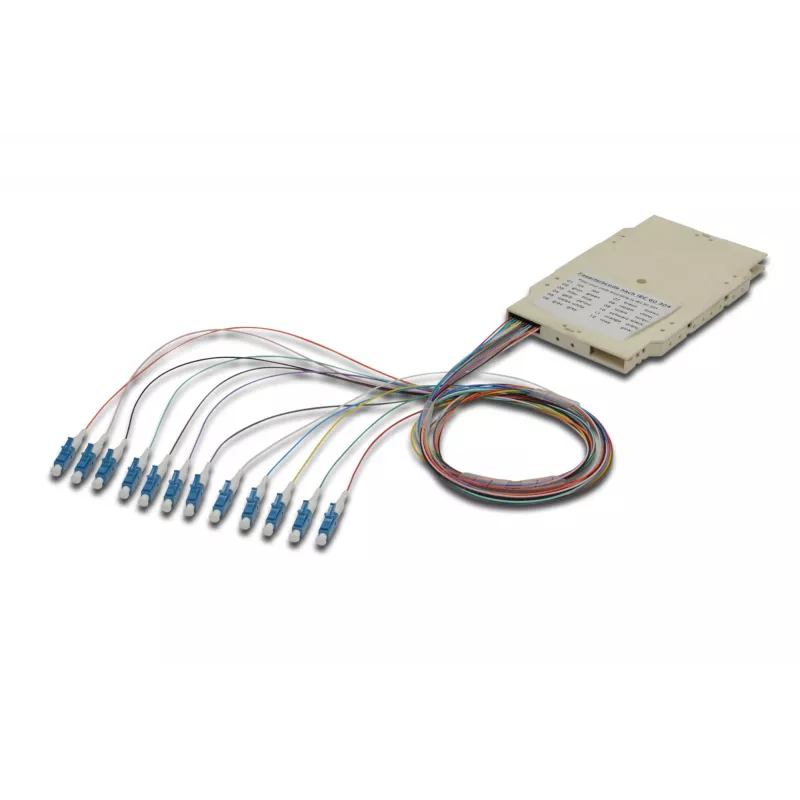

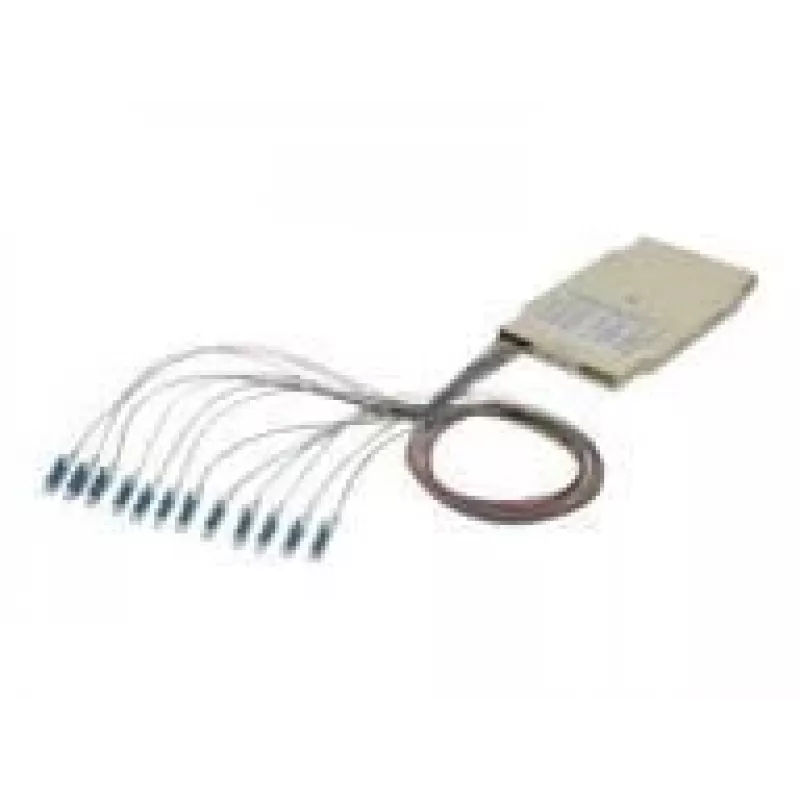

Casete de empalme Digitus A-96933-02-APC con 12 pigtails

The Digitus Splice cassette A-96933-02-APC contains 12 pre-assembled LC (APC) pigtails for single-mode fiber installations. The cassette is supplied with pigtails cut to the correct length and arranged according to the IEC 60304 color code; a sticker on the top indicates the color code used. Each cassette includes a test protocol for the pigtail set and is intended to simplify installation and ensure consistent optical performance.

Advantages

Pre-assembled pigtails reduce installation time and minimize handling errors. Color-coded arrangement following IEC 60304 simplifies identification and cable management. Included test protocol documents measured parameters for traceability. Beige housing and standard LC (APC) connector type make the cassette compatible with typical single-mode network equipment.

Suitable for

• Single-mode fiber splicing and panel integration
• Telecommunications and data center fiber runs
• FTTx and backbone fiber assemblies

Key specifications

• Model: Digitus A-96933-02-APC
• Connector type: 12 × LC (APC) pigtails
• Fiber type: Single-mode
• Color: Beige
• Standards: IEC 60304 color coding for pigtails
• Origin: Manufactured in China
• Package quantity: 1 cassette
• MPN: A-96933-02-APC
• EAN: 4016032319191

How to use

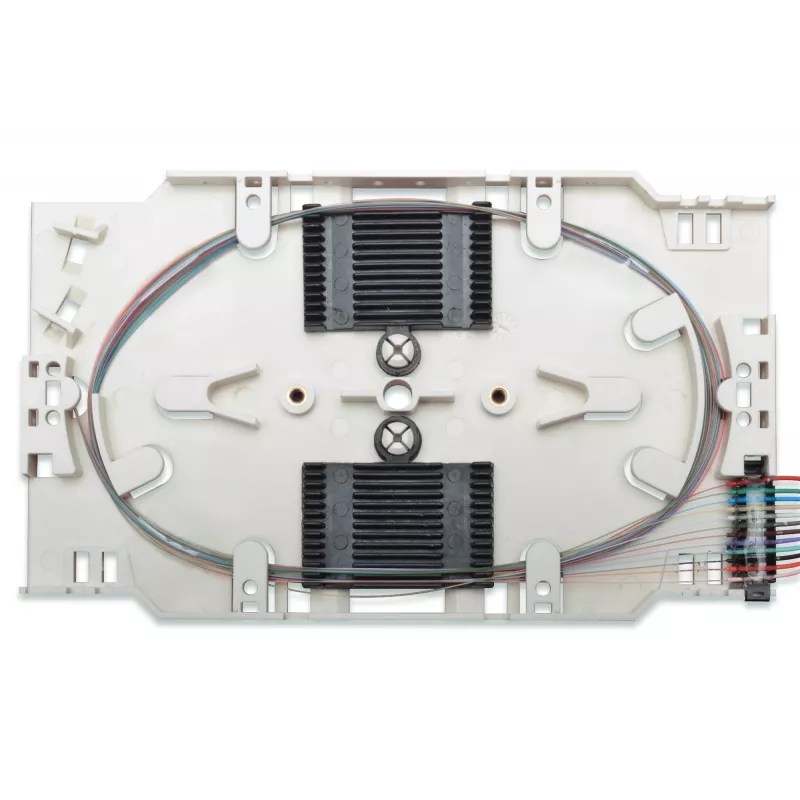

Mount the splice cassette in the compatible patch panel or enclosure, route the incoming fiber to the cassette entry point and perform fusion splicing between the incoming fiber and the pre-assembled pigtails. Use the color code sticker to verify pigtail mapping. After splicing, secure fibers and close the cassette according to the enclosure instructions to protect splices and maintain bend radii.

Recommendations

Handle pigtails and fiber ends with appropriate ESD precautions and use recommended splice protectors. Verify connector end-face quality and review the provided test protocol after installation to confirm performance.
