Cassette de empalme Digitus A-96911-02-UPC con 12 pigtails ST OS2

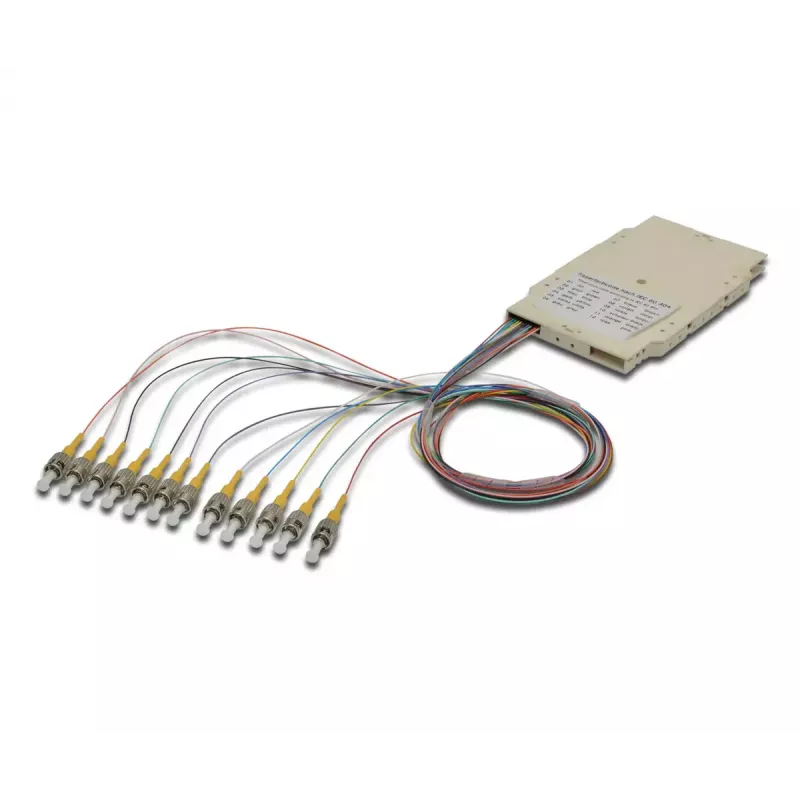

The Digitus Splice cassette A-96911-02-UPC with 12 pigtails ST OS2 is a pre-assembled fiber optic splice cassette designed for single-mode networks. It contains twelve factory-terminated pigtails with ST connectors, color-coded to IEC 60304 standards and supplied with a test protocol. The cassette simplifies installation and ensures consistent fiber length and quality for patching and splicing applications.

Advantages

Pre-assembled pigtails reduce on-site termination time and risk of errors. Color coding according to IEC 60304 enables quick identification and orderly cable management. Each cassette includes a test protocol that documents the fiber set, providing traceability and assurance of performance. The ST UPC connectors and OS2 fiber type are suitable for long-distance single-mode links.

Suitable for

• Single-mode fiber trunk and distribution panels
• Data centers and server rooms
• Telecommunications closets and MDF/IDF racks
• Quick splice installations and network expansions

Key specifications

• Brand: DIGITUS
• Model / MPN: A-96911-02-UPC
• EAN: 4016032319146
• Connector type: ST UPC
• Fiber type: Single-mode OS2
• Pigtails: 12 pre-assembled, color-coded (IEC 60304)
• Country of manufacture: China

How to use

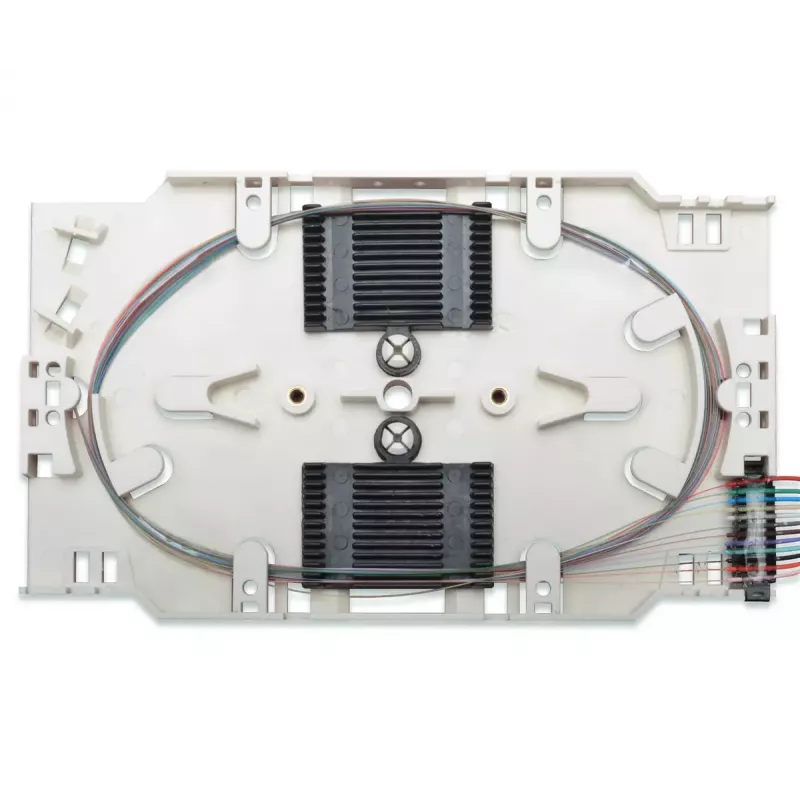

Install the splice cassette into a compatible patch or distribution panel following the rack or cabinet manufacturer's instructions. Route incoming fiber into the cassette, splice incoming fibers to the pre-assembled pigtails inside the cassette, and secure splices in the splice tray. Connect the ST UPC pigtail connectors to the patch panel or equipment as required. Refer to the included test protocol to verify continuity and performance after installation.

Recommendations

Store and handle the cassette and pigtails in a clean, dust-free environment. Use appropriate fiber tools and follow safety procedures for fiber handling and splicing. Verify connector cleanliness before mating and consult the test protocol supplied with each cassette for baseline performance data.
