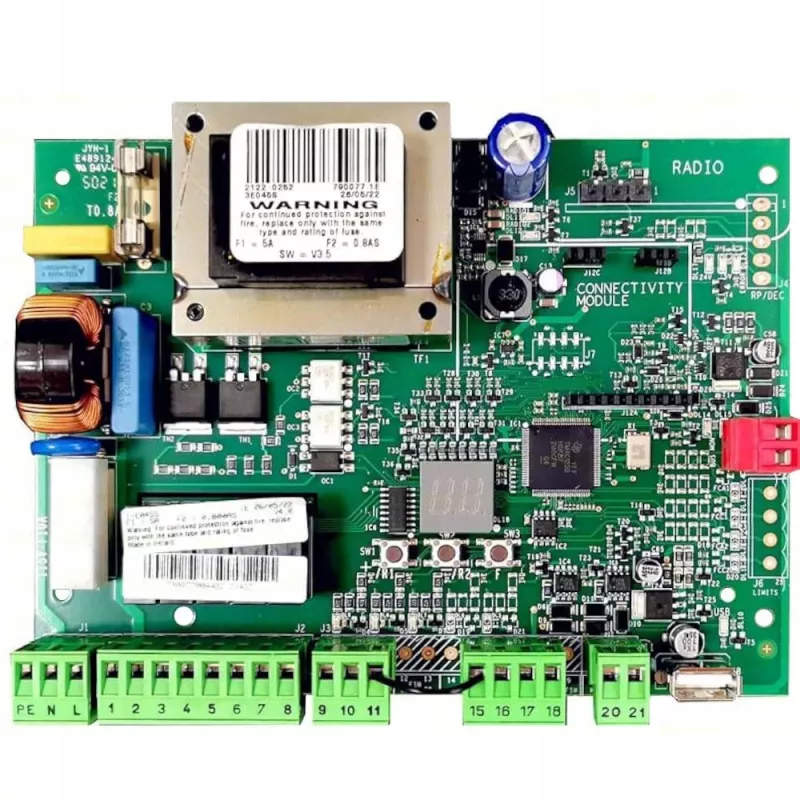

Centralita FAAC E045S (sustituye a 790005) - 790077

The FAAC E045S control unit is a microprocessor-based controller designed for 230V AC swing and sliding gate operators. It replaces the previous model 790005 and offers enhanced reliability and performance. This unit features a built-in 433.92 MHz radio receiver with two channels, safety inputs for photocells and edges, and outputs for a flashing light and electric lock. Programming is done via dip-switches and potentiometers, allowing easy adjustment of force, speed, and automatic closing times. The control unit supports obstacle detection, soft start/stop, self-learning, and pedestrian opening functions. It is housed in a compact, removable terminal block design for easy installation and maintenance.

Advantages

Direct replacement for FAAC 790005 with improved features. Built-in radio receiver eliminates the need for an external module. Adjustable force and soft start/stop ensure smooth and safe operation. Self-learning function simplifies setup. Compatible with a wide range of FAAC 230V operators.

Suitable for

• FAAC 230V swing gate operators
• FAAC 230V sliding gate operators
• Residential and light commercial gate automation systems

Key specifications

• Input Power Supply: 230V AC (50/60 Hz)
• Motor Output Power Supply: 230V AC
• Max Motor Power: 800 W
• Logic Type: Microprocessor-based
• Built-in Radio Receiver: Yes (FAAC RP/LC, 433.92 MHz)
• Number of Radio Channels: 2
• Max Accessories Current: 500 mA (24V DC)
• Safety Inputs: 2 (e.g., photocells, safety edges)
• Flashing Light Output: Yes (230V AC, max 40W)
• Electric Lock Output: Yes (24V AC, max 15W)
• Operating Temperature: -20°C to +55°C
• Protection Rating: IP55 (when housed in appropriate enclosure)
• Number of Motors Controlled: 1
• Terminal Block Type: Removable

Recommendations

For optimal performance, use with FAAC 230V operators and ensure proper enclosure for IP55 protection. Always follow local electrical codes and safety regulations during installation.
