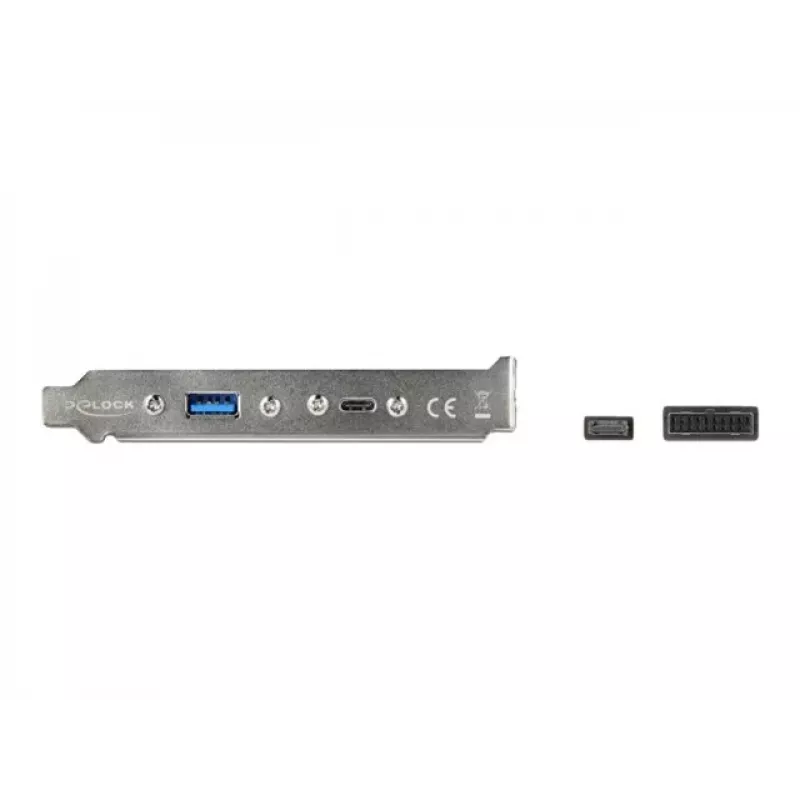

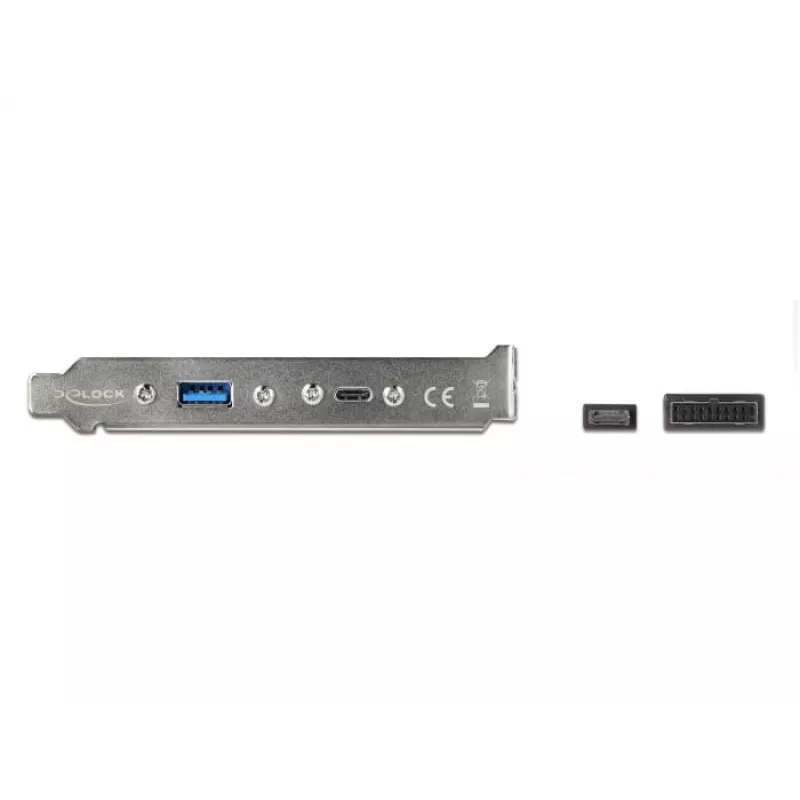

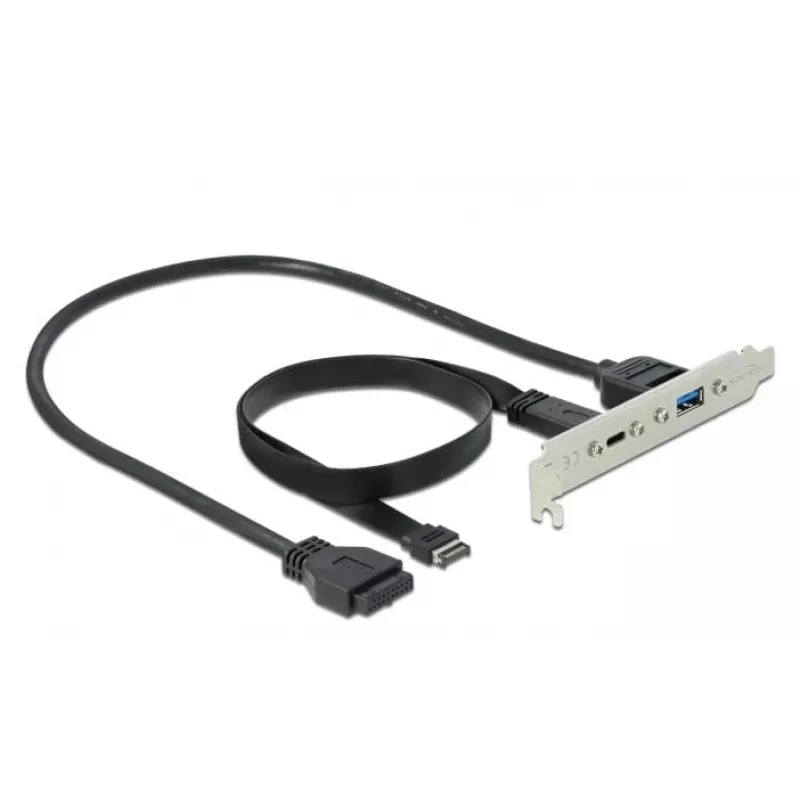

Chapa de ranura DeLOCK 89934 con 1 x conector USB Type-C y 1 x conector USB Type-A

The DeLOCK Slot Bracket 89934 adds one USB Type-C and one USB Type-A port to a PC via a rear slot bracket. It connects internally to the system using the included cable (0.5 m) and supports USB 3.2 Gen 2 transfer speeds for fast data exchange. The bracket is intended for installation in a standard expansion slot and is manufactured in China.

Advantages

This slot bracket provides an external USB Type-C port with up to 20 V / 3 A power delivery and up to 10 Gbps data transfer, plus a USB Type-A port supplying up to 5 V / 900 mA and up to 5 Gbps data rate. Its 0.5 m internal cable offers straightforward connection to compatible internal headers, enabling quick expansion of rear-panel connectivity without modifications to the chassis.

Suitable for

• Adding modern USB Type-C connectivity to a desktop PC
• Expanding rear USB ports for peripherals and external drives
• Systems requiring a combination of USB Type-C and USB Type-A ports

Key specifications

• Brand: DELOCK
• Model / MPN: 89934
• EAN: 4043619899340
• Ports: 1 x USB Type-C, 1 x USB Type-A
• Data transfer: USB Type-C up to 10 Gbps (USB 3.2 Gen 2), USB Type-A up to 5 Gbps (USB 3.2 Gen 1)
• Power: USB Type-C up to 20 V / 3 A, USB Type-A up to 5 V / 900 mA
• Cable length: 0.5 m
• Category: PC Internal Cables
• Country of origin: China

How to use

Power off the PC and open the case. Insert the slot bracket into an available rear expansion slot and secure it with the screw. Connect the internal cable to the matching motherboard header as specified by the board manual. Close the case and power on the computer; the new USB ports will be available to the operating system and connected devices.

Recommendations

Use the USB Type-C port for devices that require higher power delivery or faster data rates (e.g., external NVMe enclosures), and use the USB Type-A port for legacy peripherals. Verify motherboard header compatibility before installation.
