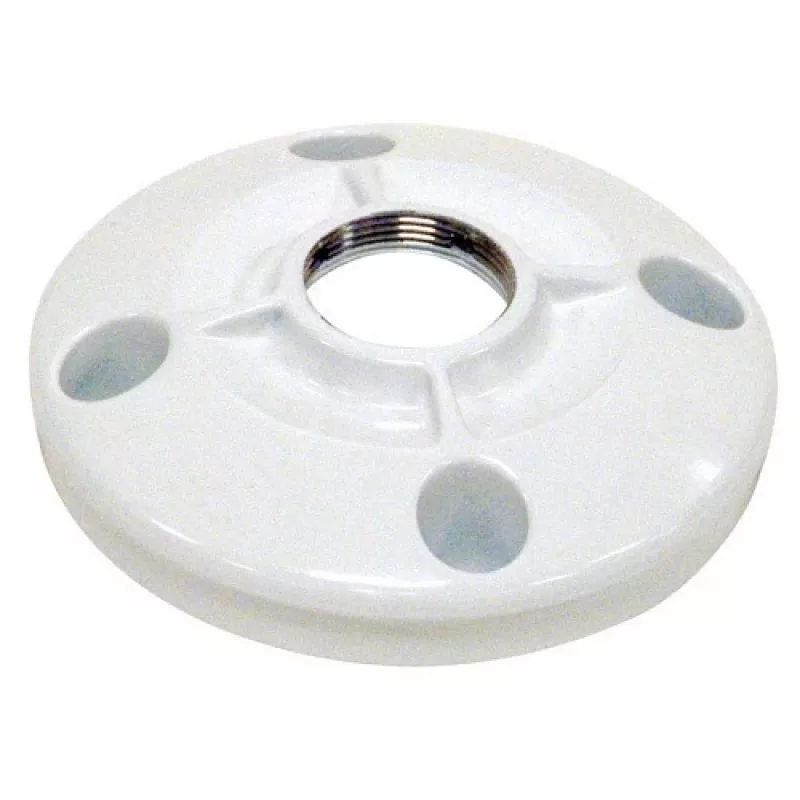

Chief CMS115W soporte para proyector accesorio placa de techo aluminio blanco

The Chief CMS115W ceiling plate is an aluminum mounting accessory designed for projector installations. Measuring 165 mm x 165 mm x 46 mm and weighing 910 g, the white low-profile plate provides sturdy, lightweight support and integrates with Chief mounting systems. It features a top cable exit for tidy wiring and is compatible with 1.5” NPT connections, offering reliable attachment for projection equipment up to the specified load capacity.

Advantages

The CMS115W combines an aesthetic, low-profile design with integrated cable management that lets cables exit through a dedicated top port. Its aluminum construction delivers strength while keeping weight minimal, and the All-Points Security System locking hardware at the column connection point helps protect the mounted equipment from theft. The white finish is intended to blend with ceilings for a clean appearance.

Suitable for

• Mounting projectors in offices, classrooms, or conference rooms
• Installations requiring a discreet, low-profile ceiling attachment
• Setups that benefit from top cable routing and theft-deterrent locking

Key specifications

• Model: Chief CMS115W
• Material: Aluminum
• Dimensions: 165 mm x 165 mm x 46 mm
• Weight: 910 g
• Colour: White
• Compatibility: 1.5” NPT
• Maximum weight capacity: 226.8 kg
• Security: All-Points Security System locking hardware

How to use

Position the CMS115W on the ceiling at the desired mounting point and secure it using appropriate fasteners for your ceiling type. Attach the compatible Chief column or mount to the plate, ensuring the All-Points Security System lock engages at the connection point for theft resistance. Route projector cables through the integrated top cable exit port to keep wiring concealed and tidy. Verify that the total load does not exceed the specified maximum weight capacity before completing the installation.

Recommendations

Use suitable ceiling anchors and hardware rated for the combined weight of the plate, mount, and projector. For safety and warranty compliance, follow Chief installation instructions and, when in doubt, have the ceiling plate installed by a qualified technician.
