Chief LCM1U Soporte para pantalla de señalización 152,4 cm (60") negro

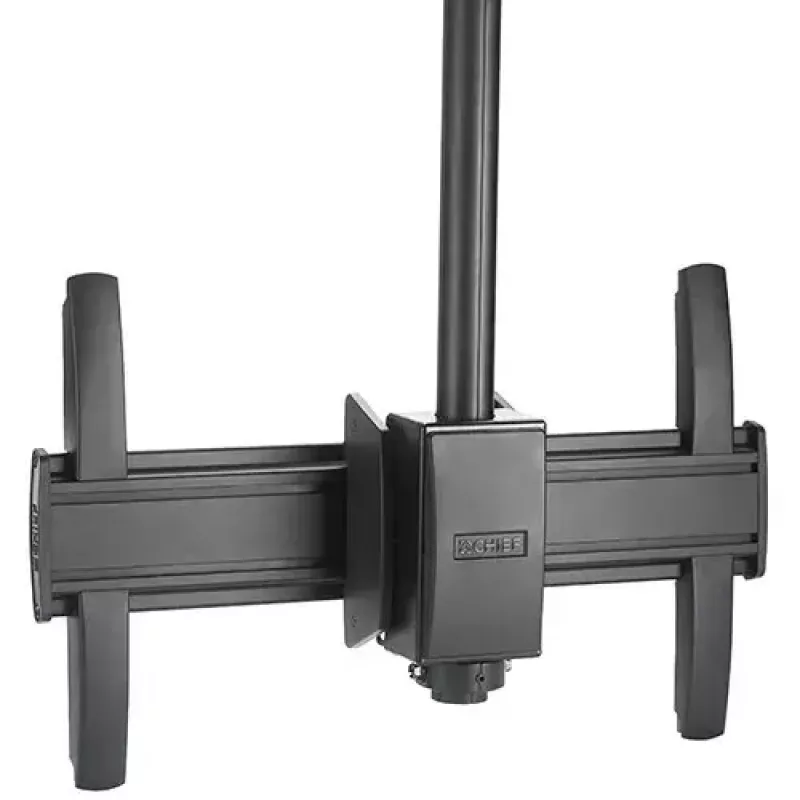

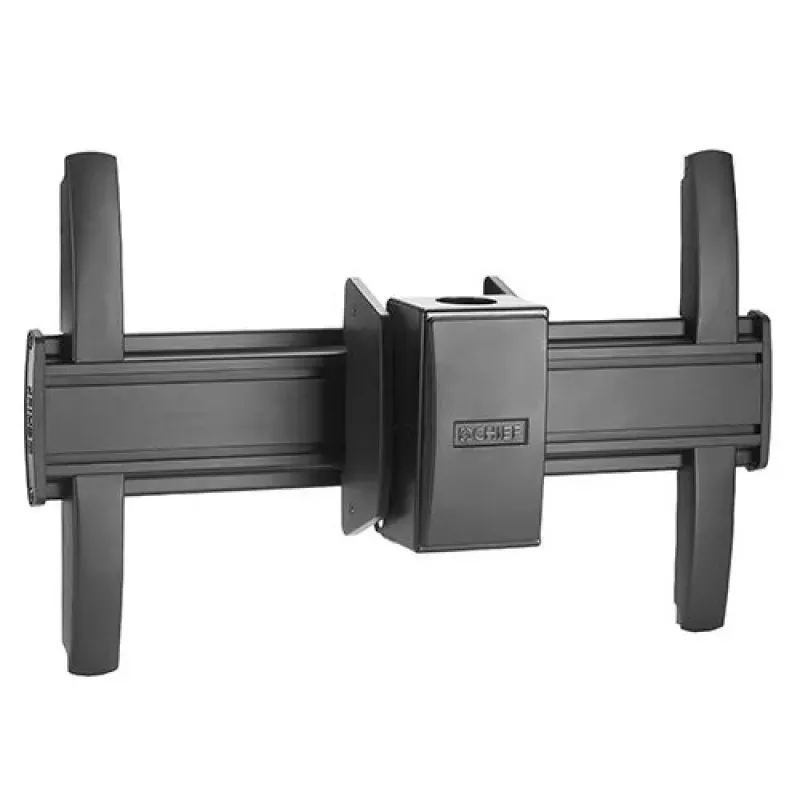

Chief LCM1U Signage Display Mount (Black) is a ceiling mount designed for large flat panel screens and digital signage. The mount supports up to 56.7 kg and fits displays with VESA up to 200 x 100. Ceiling plate and extension column are required and sold separately; the LCM1U is compatible with traditional 1.5" NPT and with CPA pinned ceiling plate/column systems when the appropriate plate or column is selected.

Advantages

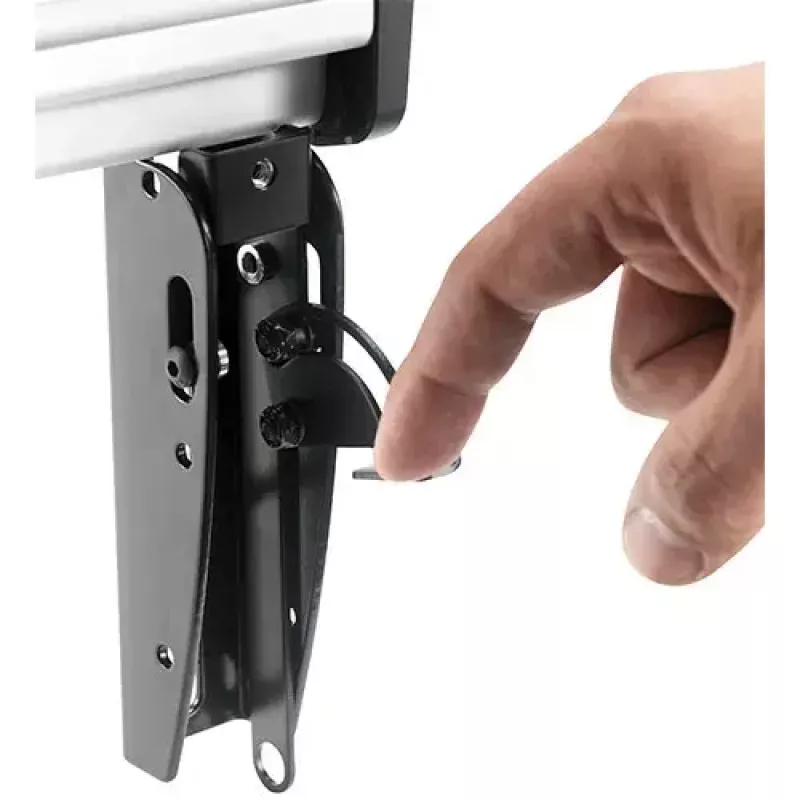

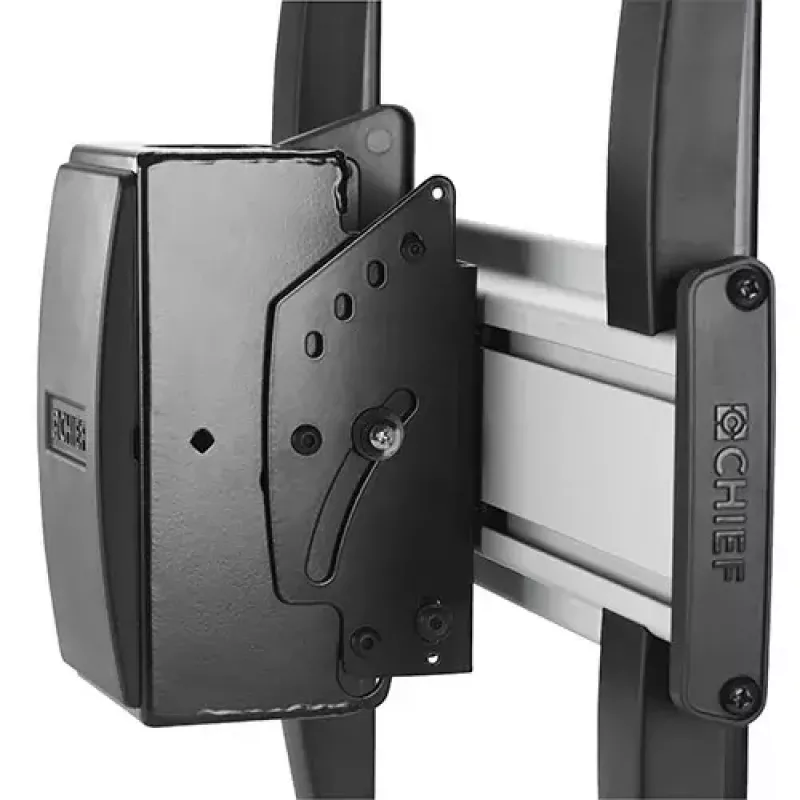

The LCM1U offers continuous tilt with four set locking points for repeatable adjustment across multiple screens, Centris fingertip tilt for easy angle changes, and tool-free screen engagement with optional padlock security. It provides swivel capability for flexible viewing angles and simple on/off connection for straightforward installation and service.

Suitable for

• Commercial digital signage installations
• Retail displays and point-of-sale screens
• Conference rooms and public information displays

Key specifications

• Maximum weight capacity: 56.7 kg
• Number of displays supported: 1
• Maximum VESA mount: 200 x 100
• Product colour: Black
• Compatible ceiling connection types: 1.5" NPT or CPA pinned systems (ceiling plate and extension column sold separately)

How to use

Choose and order the appropriate ceiling plate and extension column (1.5" NPT or CPA pinned) before installation. Secure the chosen ceiling plate to the structure, attach the extension column, then connect the LCM1U mount using the on/off connection. Mount the display to the bracket using the compatible VESA pattern, set the desired tilt using Centris fingertip tilt and lock using the preset locking points; swivel to the preferred viewing angle. Use the optional padlock feature if additional security is required.

Recommendations

For safe and reliable operation, confirm the ceiling structure and mounting hardware are rated to support the combined weight of the extension column, mount and display (maximum 56.7 kg). Use the compatible ceiling plate or column for either 1.5" NPT or CPA pinned systems and follow local building codes and installation guidelines.
