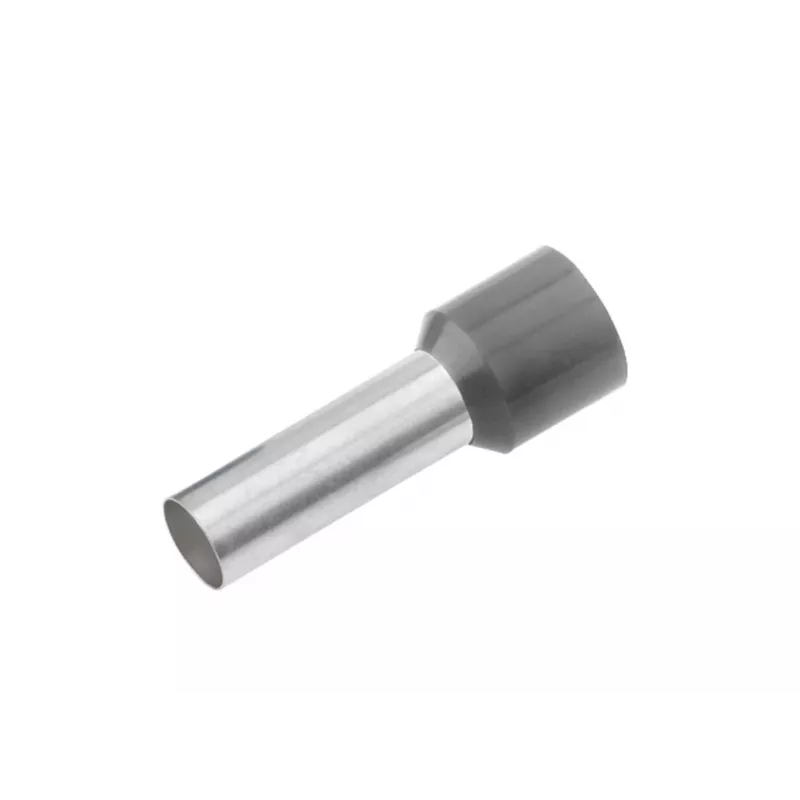

Cimco 187006 Terminal tubular parcialmente aislado 0,75 mm² gris 100 unidades

Partially insulated wire end ferrule for fine-stranded conductors with a nominal cross-section of 0.75 mm². The flared entry ensures easy wire insertion and reliable crimping.

Advantages

Tin-plated electrolytic copper sleeve provides excellent conductivity and corrosion resistance. Polypropylene insulation collar offers reliable electrical isolation and mechanical protection. Compliant with DIN 46228 Part 4 for consistent quality and compatibility.

Suitable for

• Terminating fine-stranded conductors in control cabinets
• Industrial wiring and panel building
• Applications requiring vibration-resistant connections

Key specifications

• Nominal cross-section: 0.75 mm²
• Insulation type: Partially insulated
• Colour: Grey
• Quantity: 100 pieces
• Material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Metal sleeve length: 8 mm
• Total length: 14 mm
• Temperature resistance: up to 105 °C
• Connection method: Crimp

Recommendations

Use with a crimping tool designed for wire end ferrules to achieve a secure, gas-tight connection. Select the ferrule size according to the conductor cross-section and insulation diameter.
