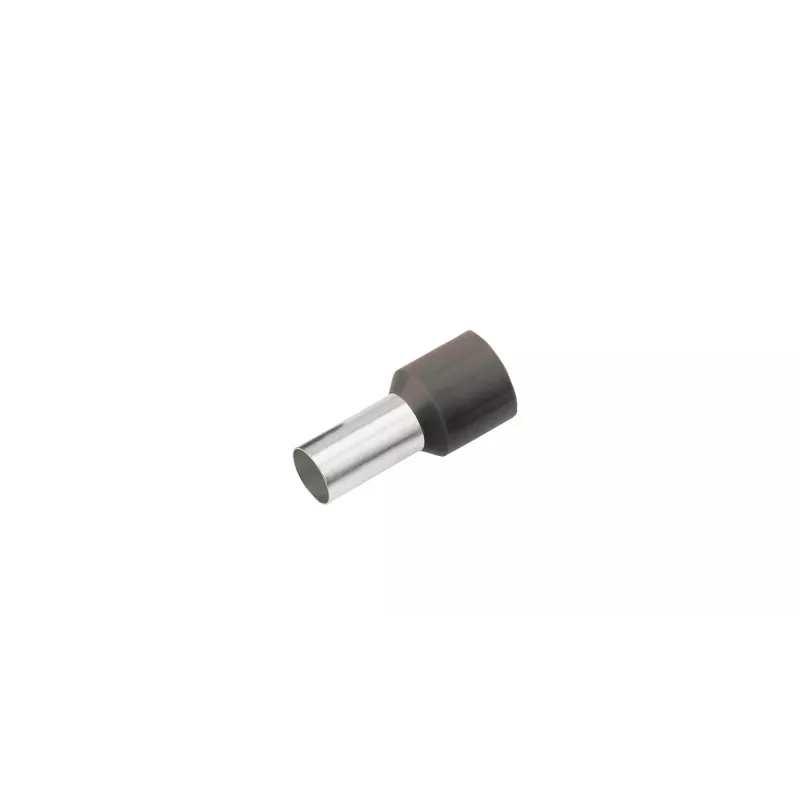

Cimco 187119 Terminal tubular 1,5 mm² semiaislado negro 100 uds.

Wire end ferrule with partial insulation for reliable conductor termination. The tin-plated electrolytic copper sleeve ensures a secure, low-resistance crimp connection for stranded copper conductors with a nominal cross-section of 1.5 mm². The funnel-shaped wire entry simplifies insertion, while the black polypropylene insulation collar provides strain relief and prevents strand splaying. Supplied in a pack of 100 pieces.

Advantages

Partial insulation allows visual inspection of the crimp area while maintaining insulation integrity. The halogen-free polypropylene collar withstands temperatures from -40°C to +105°C, making it suitable for demanding industrial environments. Tin plating on the copper ferrule offers excellent corrosion resistance and reliable conductivity. The funnel-shaped entry reduces assembly time and prevents wire strand damage.

Suitable for

• Terminating stranded copper conductors in control cabinets
• Industrial automation and machine building applications
• Electrical installations requiring DIN 46228 Part 4 compliant ferrules
• Use with square, hexagonal, or indent crimping tools

Key specifications

• Nominal cross-section: 1.5 mm² (16 AWG)
• Ferrule length (L1): 8 mm
• Total length (L2): 14 mm
• Insulation length: 6 mm
• Material: Electrolytic copper, tin-plated
• Insulation: Polypropylene (PP), black
• Temperature range: -40°C to +105°C
• Max. voltage rating: 300 V
• Halogen-free: Yes
• Pack quantity: 100 pieces

Recommendations

Pair with a crimping tool designed for 1.5 mm² ferrules to achieve a gas-tight connection. Verify the crimp die profile (square, hexagonal, or indent) matches your tooling for optimal results.
