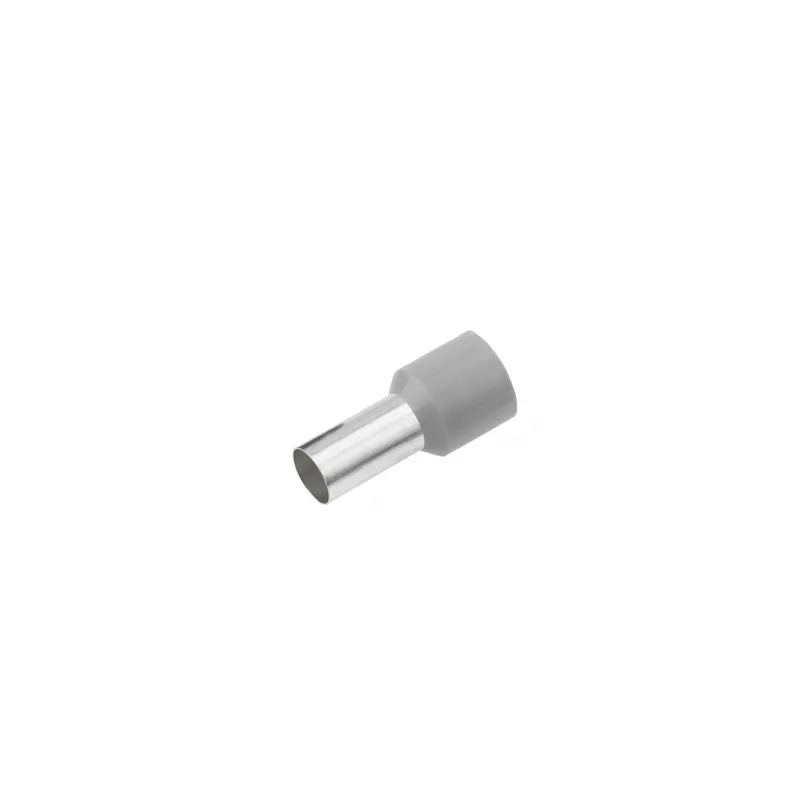

Cimco 187201 Terminal tubular 0,14 mm² parcialmente aislado gris 100 uds.

This Cimco wire end ferrule stands out with its conical, funnel-shaped entry that guides fine-stranded conductors smoothly into the metal sleeve, reducing insertion effort and preventing strand breakage. The partial insulation leaves the metal sleeve visible for a reliable crimp and easy inspection, while the grey polypropylene collar provides a secure grip and colour coding for 0.14 mm² conductors.

Highlights

• Nominal cross-section: 0.14 mm²
• Partially insulated with grey polypropylene collar
• Conical entry for easy wire insertion
• Tin-plated electrolytic copper sleeve
• Pack of 100 pieces

In daily use

Designed for fine-stranded conductors, these ferrules ensure a durable, gas-tight crimp connection in terminal blocks and connectors. The funnel-shaped entry simplifies assembly, especially in tight spaces or when working with flexible wires. The grey insulation identifies the conductor size at a glance, supporting efficient wiring in control cabinets and industrial installations.

Full specifications

• Product type: Wire end ferrule
• Insulation type: Partially insulated
• Nominal cross-section: 0.14 mm²
• Colour: Grey
• Quantity per pack: 100 pieces
• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Standard compliance: DIN 46228 Part 4
• Temperature range: -40°C to +105°C
• Voltage rating: 600 V
• Overall length: approx. 14 mm
• Metal sleeve length: approx. 8 mm
• Flange shape: Conical / funnel-shaped
• Halogen-free: Yes
• RoHS compliant: Yes
• Application: For fine-stranded conductors

Final note

With its precise 0.14 mm² sizing and reliable crimp performance, this ferrule is a practical choice for professional wiring tasks.
