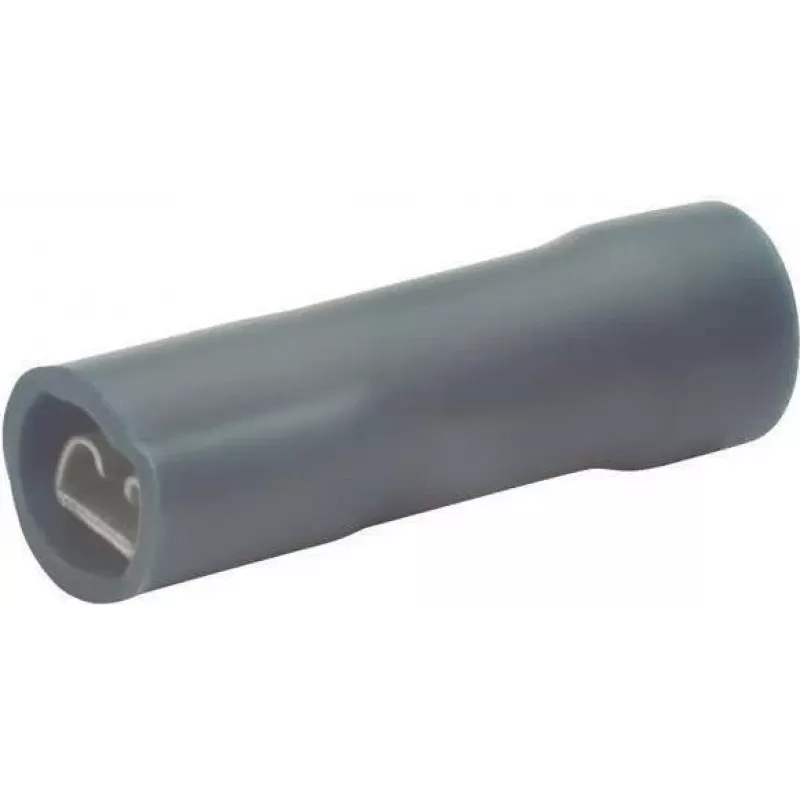

Klauke Terminal plano de crimpado 1,5-2,5 mm² azul 8301V

Secure reliable electrical connections in automotive and industrial wiring with the Klauke 8301V flat receptacle terminal. This crimp terminal is engineered for wires with a cross-section of 1.5 to 2.5 mm² (16-14 AWG), providing a durable and conductive interface for 6.3 mm tabs. Its blue polyamide insulation offers mechanical protection and clear color coding for easy identification.

Who is it for

Electricians, automotive technicians, and maintenance professionals who need a dependable crimp connection for medium-duty wiring tasks. Ideal for harness building, appliance repair, and control panel assembly where vibration resistance and long-term performance are required.

Main features

• Fits wire cross-sections from 1.5 to 2.5 mm² (16-14 AWG)
• Compatible with 6.3 mm flat tabs (Faston type)
• Blue polyamide insulation for durability and easy identification
• Tin-plated electrolytic copper conductor for excellent conductivity and corrosion resistance
• Crimp connection method ensures a gas-tight, vibration-proof joint
• Maximum operating temperature up to 105 °C
• Rated for up to 600 V
• Flammability rating UL 94 V-2
• Complies with DIN 46247 standard

Specifications

• Connector type: Flat receptacle (Faston / spade terminal)
• Wire cross-section: 1.5 - 2.5 mm²
• AWG: 16 - 14
• Insulation colour: Blue
• Insulation material: Polyamide (PA)
• Conductor material: Electrolytic copper
• Surface treatment: Tin-plated
• Tab width: 6.3 mm
• Tab thickness: 0.8 mm
• Max. operating temperature: 105 °C
• Max. voltage rating: 600 V
• Connection method: Crimp
• Flammability rating: UL 94 V-2
• Standard compliance: DIN 46247

Tips

Use a calibrated crimping tool designed for insulated terminals to achieve a reliable connection. Ensure the wire is stripped to the correct length and fully inserted into the barrel before crimping. For best results, match the terminal colour to the wire gauge: blue for 1.5-2.5 mm².
