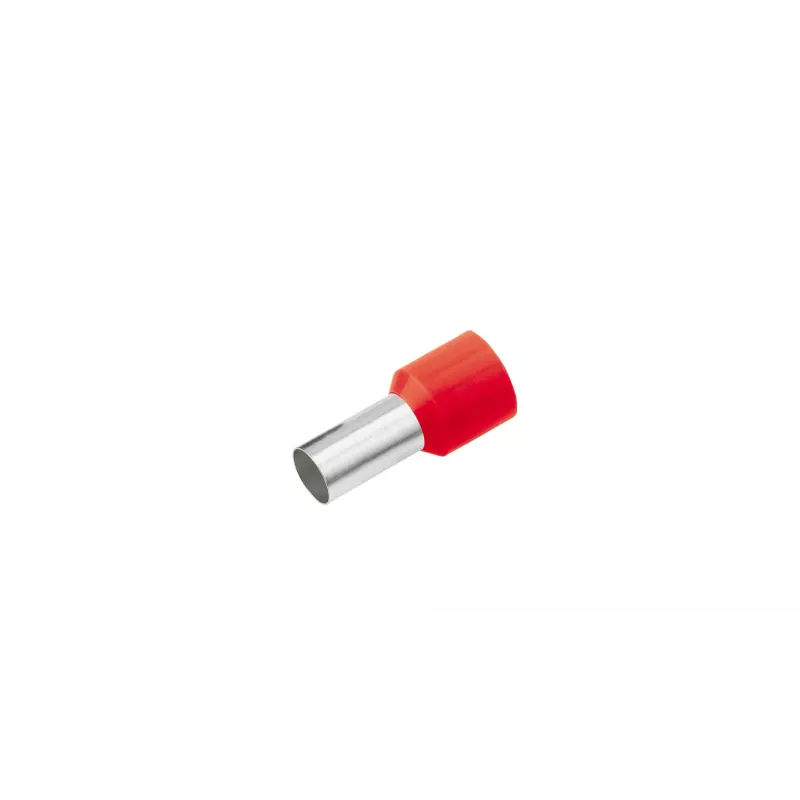

Cimco 187220 Terminal tubular semiaislado 1,5 mm² rojo, 100 uds.

Electricians and panel builders terminating fine-stranded conductors will find the Cimco 187220 ferrule ideal for creating reliable, gas-tight connections in terminal blocks and industrial controls. Each red ferrule accepts a 1.5 mm² conductor and features a tin-plated electrolytic copper sleeve for excellent conductivity and corrosion resistance.

Key specifications

• Wire cross-section: 1.5 mm²
• Insulation: partially insulated, polypropylene (PP), red
• Sleeve material: electrolytic copper, tin-plated
• Metal sleeve length (L1): 8 mm
• Total length (L2): 14 mm
• Max operating temperature: 105 °C
• Voltage rating: 300 V
• Flammability rating: UL 94 V-2 (insulation)
• Standard: DIN 46228 Part 4
• Pack quantity: 100 pieces

Why choose it

The polypropylene insulation collar provides strain relief and prevents fraying, while the tin plating ensures low contact resistance. Compliant with RoHS and REACH, these ferrules are suitable for professional use.

Ideal use cases

• Terminal block wiring in control cabinets
• Industrial machinery and automation systems
• Building installation with fine-stranded conductors

Good to know

Designed for fine-stranded conductors, these ferrules should be crimped with a suitable tool to ensure a secure connection.
