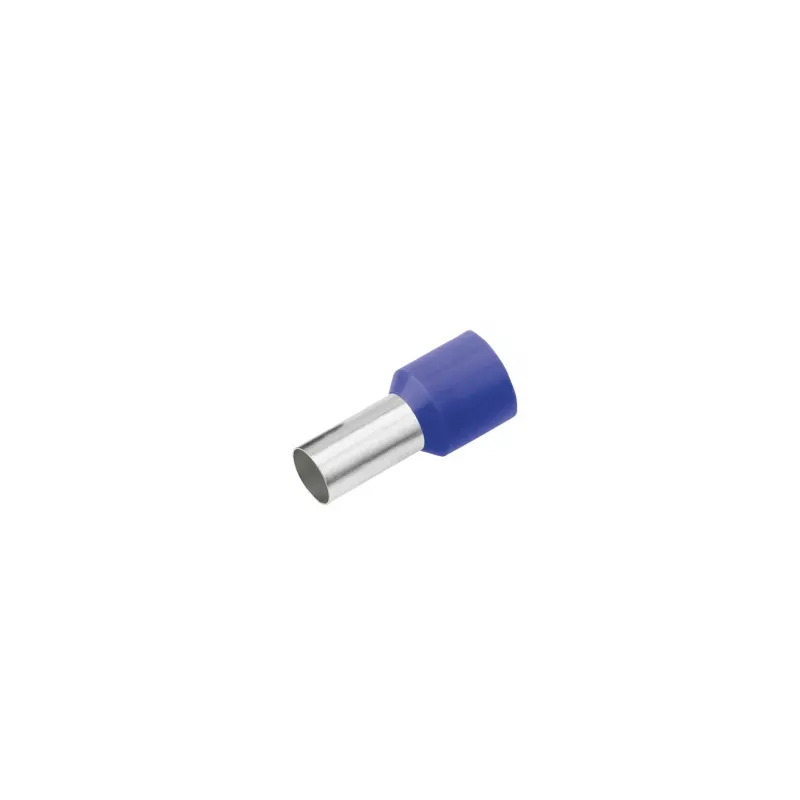

Cimco 187224 Terminal tubular 2,5 mm² parcialmente aislado azul 100 unidades

Wire end ferrule for reliable termination of fine-stranded conductors in control cabinet construction and switchgear. The tin-plated electrolytic copper sleeve ensures secure crimping and corrosion resistance.

Advantages

Conical flange design simplifies conductor insertion and prevents strand breakage. Polypropylene insulation provides electrical isolation and strain relief. Standard dimensions per DIN 46228 Part 4 ensure compatibility with common crimping tools.

Suitable for

• Fine-stranded copper conductors
• Wire cross-section 2.5 mm²
• Control cabinet wiring
• Switchgear assembly
• Electrical installations

Key specifications

• Type: Wire end ferrule
• Insulation: Partially insulated
• Colour: Blue
• Cross-section: 2.5 mm²
• Sleeve length: 8 mm
• Overall length: 14.5 mm
• Material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Pack quantity: 100 pieces

Recommendations

Use with standard crimping pliers for ferrules. Verify crimp quality by pull test. Store in a dry environment to maintain tin plating integrity.
