Cimco 187605 Surtido de terminales de empalme, parcialmente aislados, 500 uds., 0,5-6,0 mm², DIN 46228-4

Electricians and panel builders use this Cimco 187605 assortment to finish stranded conductors quickly and reliably. The set contains 500 partially insulated wire end sleeves in seven cross-sections from 0.5 mm² to 6.0 mm², colour-coded according to DIN 46228 Part 4 for easy identification. Each sleeve is made of tin-plated electrolytic copper with a polypropylene insulation collar, suitable for operating temperatures from -40 °C to 105 °C. The sleeves come in a practical assortment box, keeping the sizes organised on site.

Key specifications

• Product type: Wire end sleeve assortment
• Insulation type: Partially insulated
• Conductor material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Standard: DIN 46228 Part 4
• Cross-section range: 0.5 mm² to 6.0 mm²
• Total quantity: 500 pieces
• Included sizes: 0.5 mm² (white, 100 pcs), 0.75 mm² (grey, 100 pcs), 1.0 mm² (red, 100 pcs), 1.5 mm² (black, 100 pcs), 2.5 mm² (blue, 50 pcs), 4.0 mm² (grey, 25 pcs), 6.0 mm² (yellow, 25 pcs)
• Max. operating temperature: 105 °C
• Min. operating temperature: -40 °C

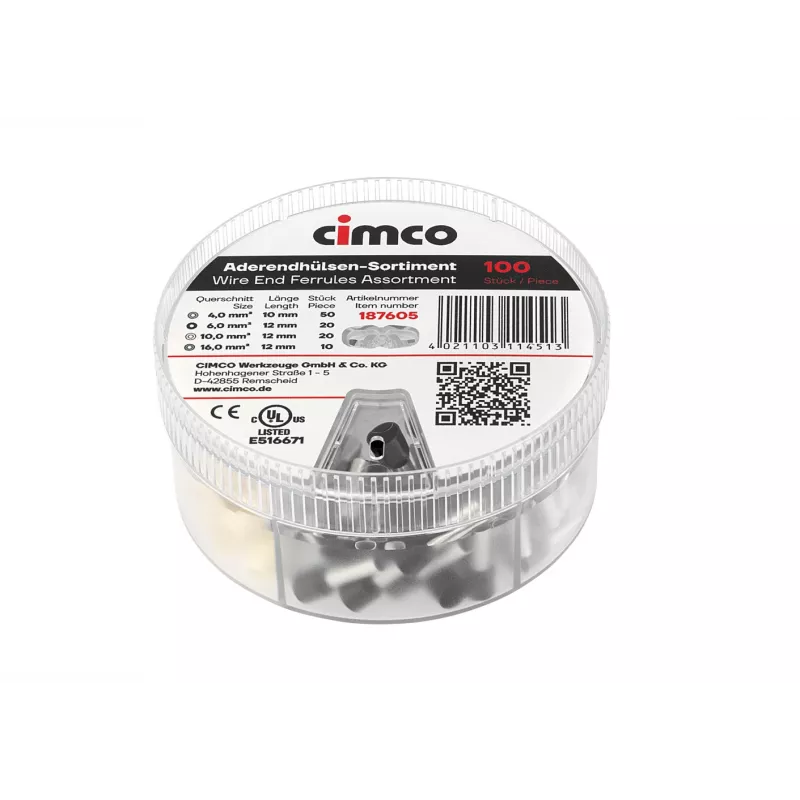

• Packaging: Assortment box

Why choose it

The DIN-standard colour coding reduces the risk of using the wrong sleeve size, and the tin-plated copper ensures a secure, corrosion-resistant crimp connection. The assortment box keeps the sleeves sorted and accessible, saving time on the job.

Ideal use cases

• Terminating stranded wires in control cabinets and distribution boards
• Preparing conductors for screw or spring clamp connections
• Maintenance and repair work where a variety of sleeve sizes is needed

Good to know

The sleeves are designed for use with standard crimping tools. The partial insulation provides strain relief and protects against short circuits at the connection point.
