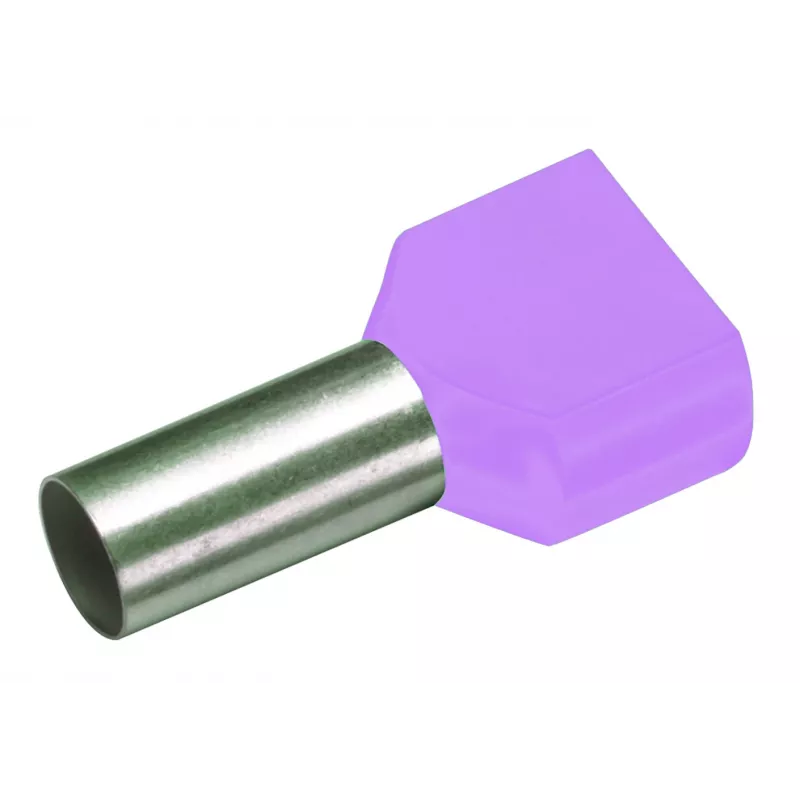

Cimco 187715 Terminal tubular doble 0,25 mm² semiaislado violeta (100 uds.)

When terminating two fine-stranded conductors into a single connection point, standard ferrules often fail to provide a secure, reliable joint. The Cimco 187715 twin wire end sleeve solves this by accommodating two 0.25 mm² wires in one sleeve, ensuring a gas-tight, vibration-resistant connection. Its violet colour coding and partial insulation make it ideal for control cabinet wiring, terminal blocks, and industrial applications where space is limited and reliability is critical.

Who is it for

Electricians, panel builders, and maintenance technicians who work with fine-stranded copper conductors and require a dependable, standards-compliant termination method. Suitable for use in industrial control systems, automation, and electrical installations.

Main features

• Designed for two fine-stranded conductors with a total cross-section of 0.25 mm²
• Partially insulated with violet polypropylene for easy identification
• Tin-plated electrolytic copper sleeve ensures excellent conductivity and corrosion resistance
• Complies with DIN 46228 Part 4 for consistent quality and dimensions
• Pack of 100 pieces for convenient stocking

Specifications

• Product type: Twin wire end sleeve
• Nominal cross-section: 0.25 mm²
• Insulation type: Partially insulated
• Colour: Violet
• Sleeve material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Total length (L1): 12 mm
• Insulation length (L2): 6 mm
• Internal diameter (d1): 0.8 mm
• External diameter (d2): 1.3 mm
• Insulation diameter (d3): 2.5 mm
• Temperature resistance: -40°C to +105°C
• Voltage rating: Up to 300 V
• Halogen-free: Yes

Tips

Use a crimping tool with a suitable die for twin ferrules to achieve a reliable connection. Ensure both conductors are fully inserted into the sleeve before crimping. Store in a dry environment to maintain the tin plating.
