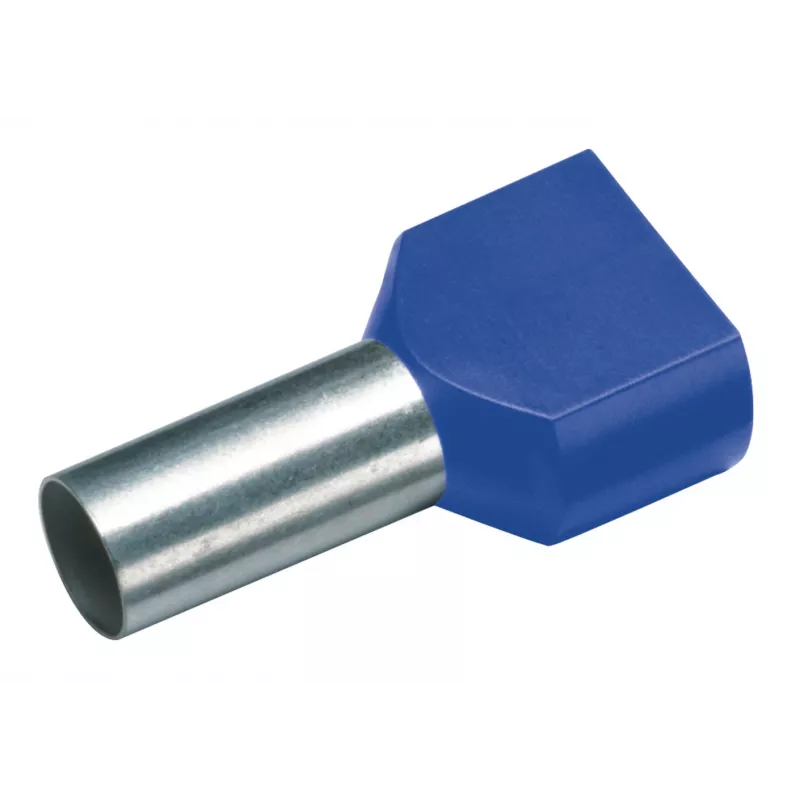

Cimco 187740 Terminal tubular doble 2,5 mm² parcialmente aislado azul 100 uds.

Twin wire end sleeve for reliable connection of two conductors with 2.5 mm² cross-section each. The partially insulated blue polypropylene sleeve provides secure strain relief and protects against contact. Electrolytic copper with tin plating ensures excellent conductivity and corrosion resistance. Supplied in a pack of 100 pieces, suitable for professional electrical installations.

Advantages

• Halogen-free insulation for safe use in fire-sensitive areas
• Tin-plated copper for low contact resistance and long service life
• Color-coded blue for quick identification according to DIN 46228 Part 4
• Wide operating temperature range from -40°C to +125°C

Suitable for

• Connecting two stranded conductors in terminal blocks and connectors
• Industrial control panels and switchgear
• Automation systems and machinery wiring
• Applications requiring vibration-resistant connections

Key specifications

• Conductor cross-section: 2.5 mm² per conductor
• Number of conductors: 2
• Insulation: partially insulated, polypropylene (PP)
• Conductor material: electrolytic copper, tin-plated
• Overall length: 18 mm
• Sleeve length: 12 mm
• Inner diameter: 2.8 mm
• Outer diameter: 4.8 mm
• Insulation diameter: 6.0 mm
• Wall thickness: 0.15 mm
• Operating temperature: -40°C to +125°C
• Standard: DIN 46228 Part 4
• Halogen-free: Yes
• RoHS compliant: Yes
• Pack quantity: 100 pieces

Recommendations

Use with appropriate crimping tools for reliable, gas-tight connections. Verify crimp quality regularly to maintain electrical safety.
