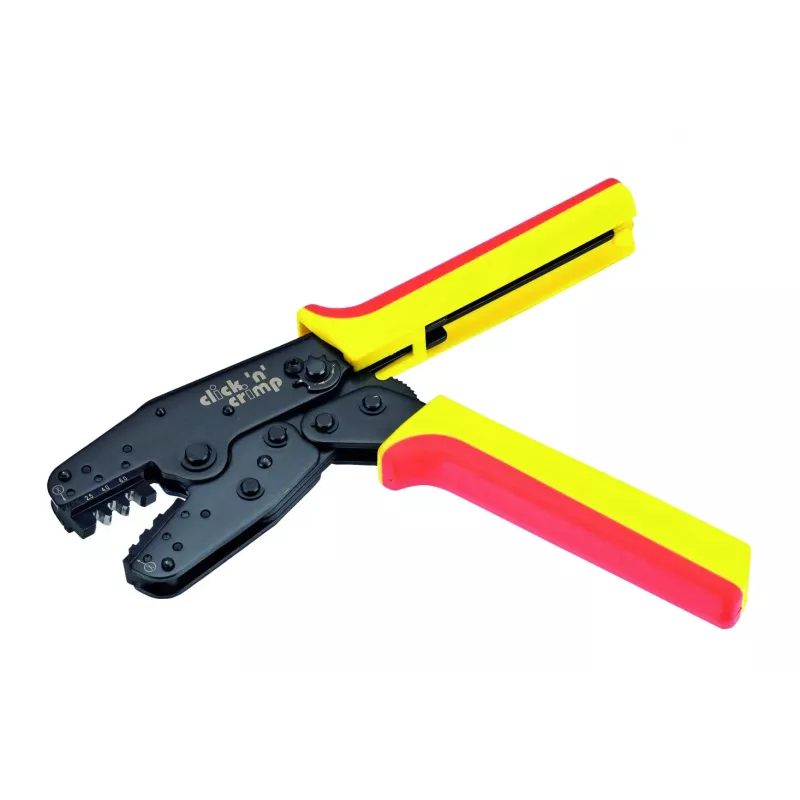

Cimco ClicknCrimp tenaza de crimpar solar MC4 para 2,5/4/6 mm² (106034)

Solar installers and PV technicians use these crimping pliers to create precise, reliable connections on MC4 solar connectors. The ClicknCrimp system with interchangeable dies handles 2.5 mm², 4 mm², and 6 mm² cables, delivering a square crimp profile that ensures optimal contact and long-term performance in photovoltaic installations.

Key specifications

• Tool type: Crimping pliers
• Application: Solar connectors
• Connector compatibility: MC4
• Wire cross-section range: 2.5 mm², 4 mm², 6 mm²
• Crimping profile: Square crimp
• Crimping system: Click'n'Crimp with interchangeable dies
• Ratchet mechanism: Self-releasing
• Tool material: High-grade special steel
• Handle design: Ergonomic two-component handles
• Length: 220 mm

Why choose it

The forced locking mechanism ensures every crimp is complete before the tool releases, eliminating partial crimps and reducing installation errors. The interchangeable die system allows quick adaptation to different connector types, while the robust steel construction withstands daily use on job sites.

Ideal use cases

• Terminating MC4 connectors on solar panel cables
• Field repairs and maintenance of photovoltaic systems
• Production of custom solar cable assemblies

Good to know

The ergonomic handles reduce hand fatigue during repetitive crimping tasks, and the compact 220 mm length provides good leverage while remaining portable. The tool is designed for professional use in solar installations.
