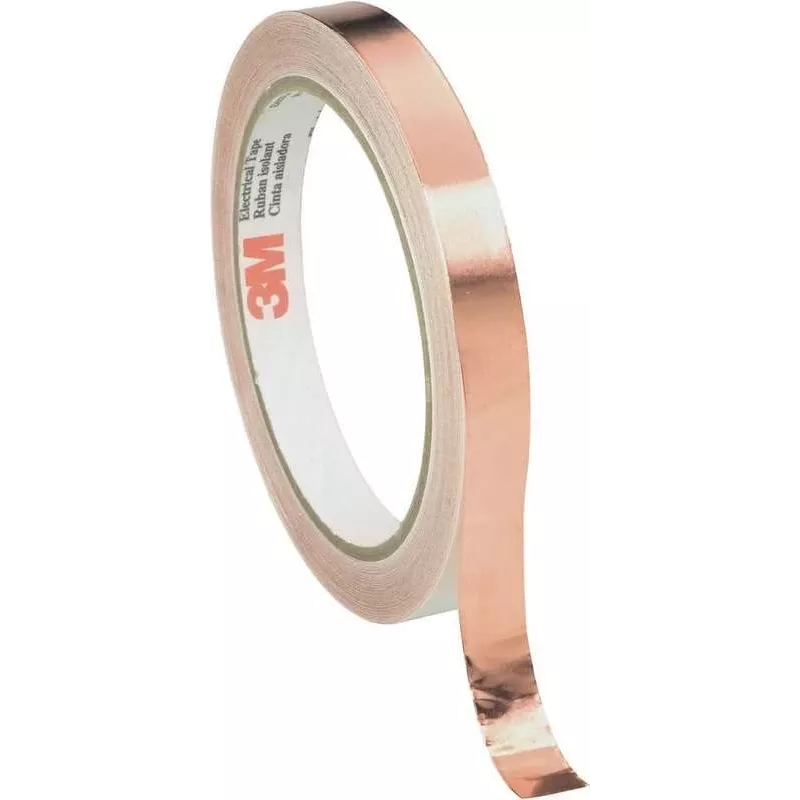

Cinta de blindaje de cobre 3M Scotch 1181, 16,5 m x 6 mm, adhesivo acrílico conductor, 1 rollo 11816

Electromagnetic interference (EMI) and radio frequency interference (RFI) can disrupt sensitive electronics, causing signal degradation and equipment malfunction. The 3M Scotch 1181 copper foil tape provides a reliable solution for shielding, grounding, and static discharge in electronic assemblies. Made from high-purity copper foil with an electrically conductive acrylic adhesive, it offers excellent conductivity through the adhesive thickness (Z-axis) for effective EMI/RFI shielding. The tape is 6 mm wide and 16.5 m long, with a total thickness of 0.066 mm, allowing it to conform to irregular surfaces while maintaining strong adhesion. It withstands temperatures from -40°C to 155°C and meets ASTM D 1000 standards, making it suitable for demanding electronic applications.

Who is it for

This tape is intended for electronics engineers, technicians, and manufacturers who need to shield components, create grounding paths, or repair circuits. It is ideal for use in prototyping, production, and maintenance of electronic devices, including computers, telecommunications equipment, and consumer electronics.

Main features

• Copper foil backing with conductive acrylic adhesive for reliable EMI/RFI shielding
• Electrically conductive through the adhesive (Z-axis) for effective grounding
• High temperature resistance: -40°C to 155°C
• Strong adhesion to steel: 3.3 N/cm
• Tensile strength: 44 N/cm
• Complies with ASTM D 1000 standard
• RoHS compliant and UL recognized

Specifications

• Tape material: Copper
• Tape width: 6 mm
• Tape length: 16.5 m
• Total tape thickness: 0.066 mm
• Foil thickness: 0.036 mm
• Adhesive type: Conductive acrylic
• Adhesion to steel: 3.3 N/cm
• Tensile strength: 44 N/cm
• Temperature range: -40°C to 155°C
• Application standard: ASTM D 1000
• Roll quantity: 1 roll

Tips

For best results, ensure the surface is clean and dry before application. Apply firm pressure to achieve maximum conductivity through the adhesive. The tape can be cut to size with scissors and is suitable for both indoor and outdoor use due to its wide temperature range.
