Adaptador activo CLUB3D USB Gen2 Type-C a HDMI™ 8K60Hz o 4K120Hz HDR10+ con DSC1.2 con Power Delivery 3.0 M/H

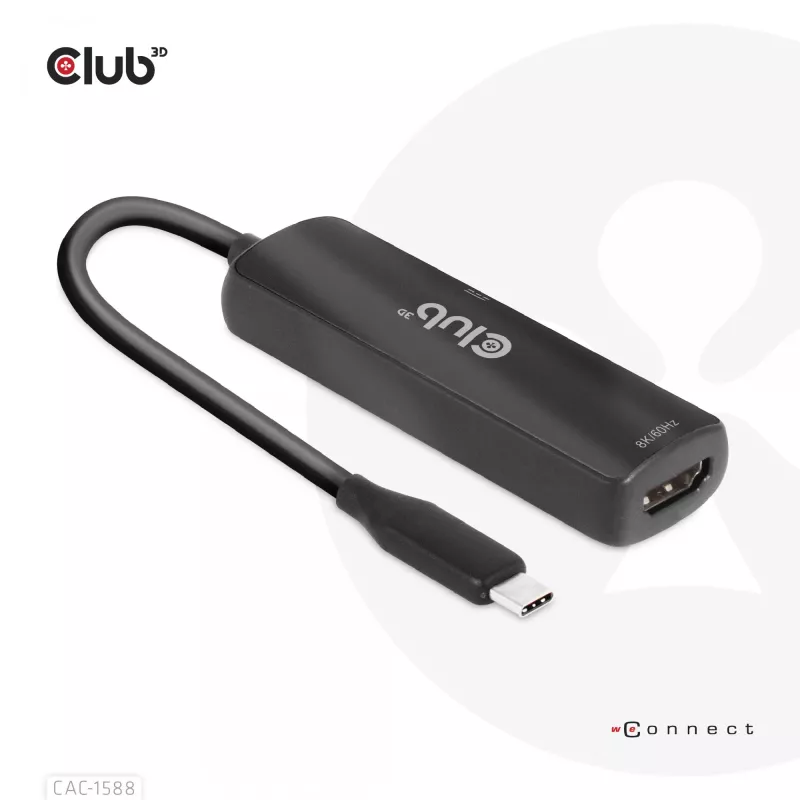

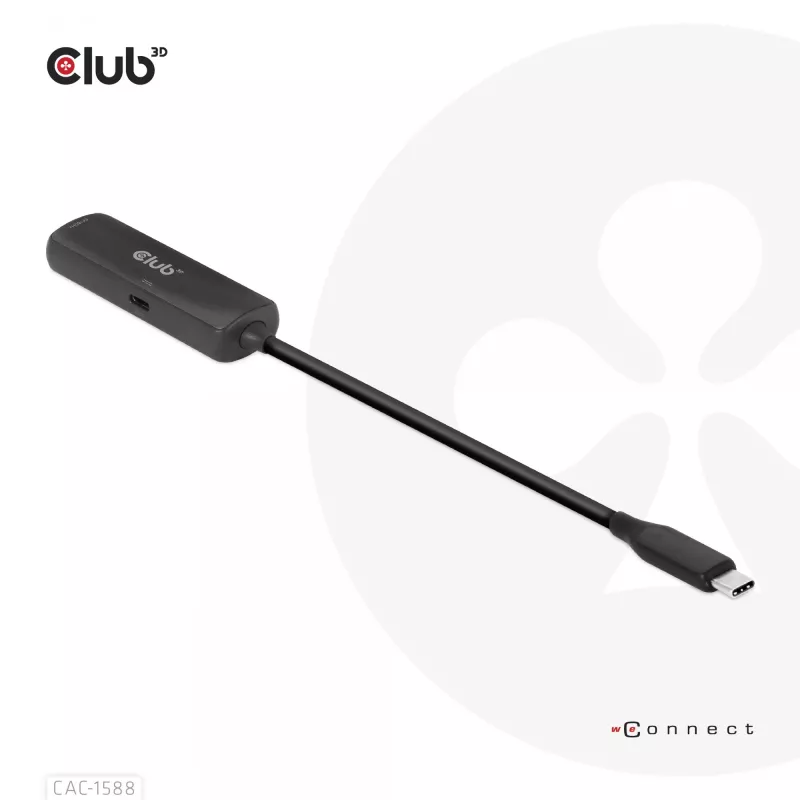

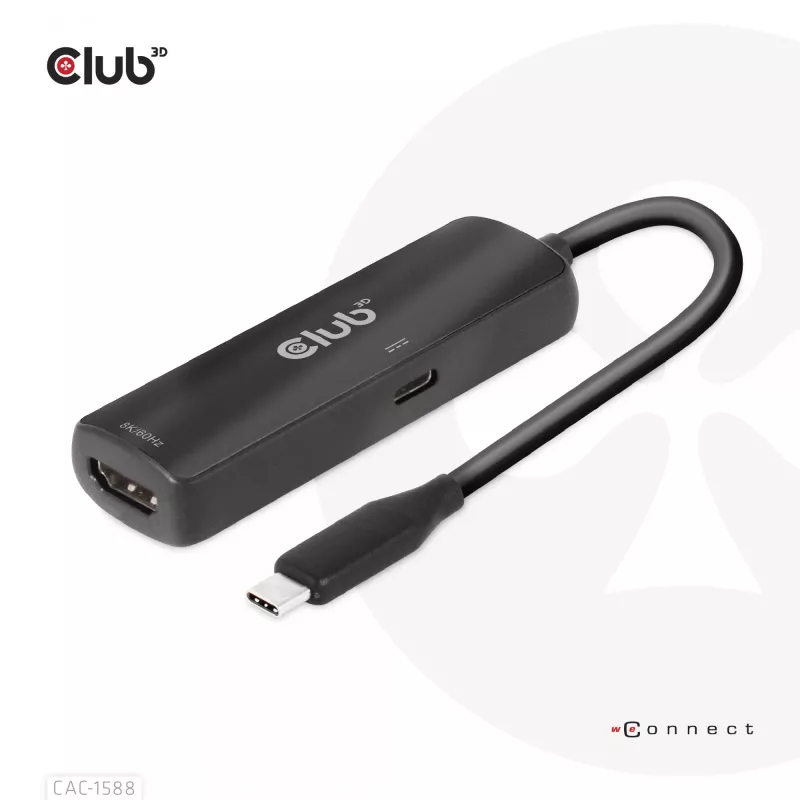

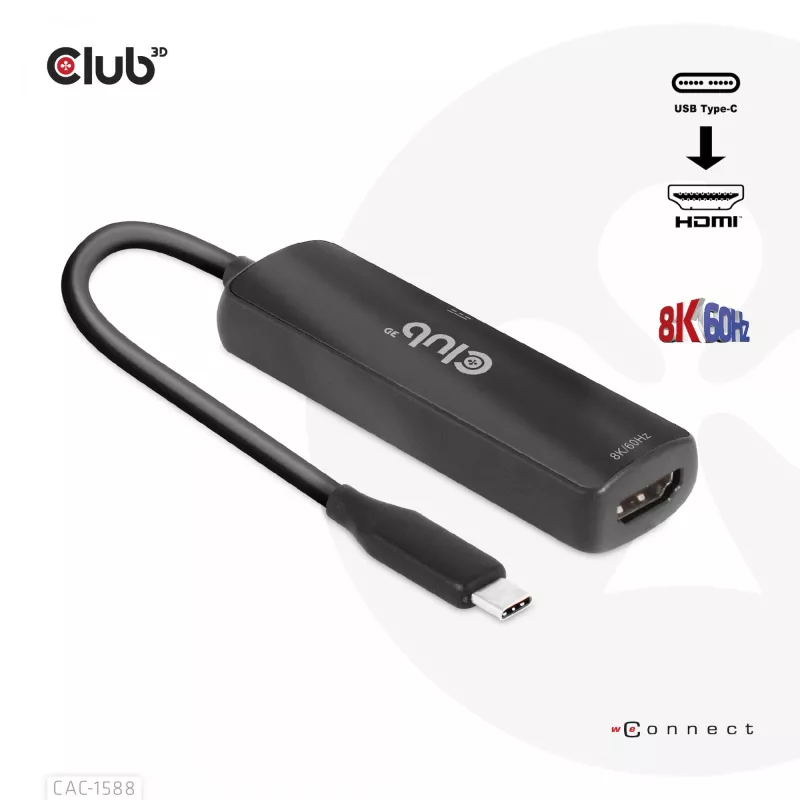

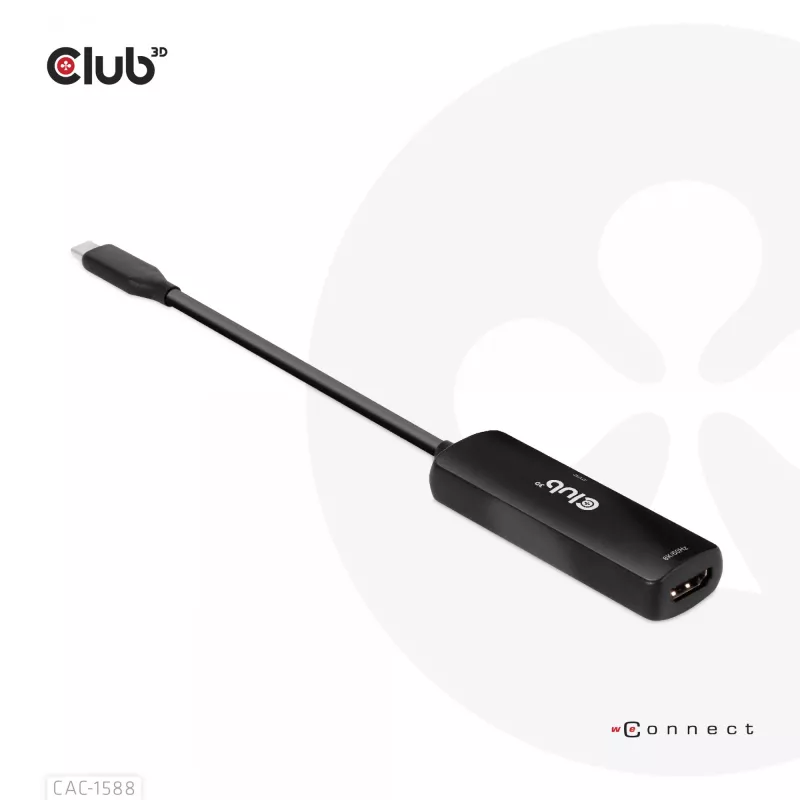

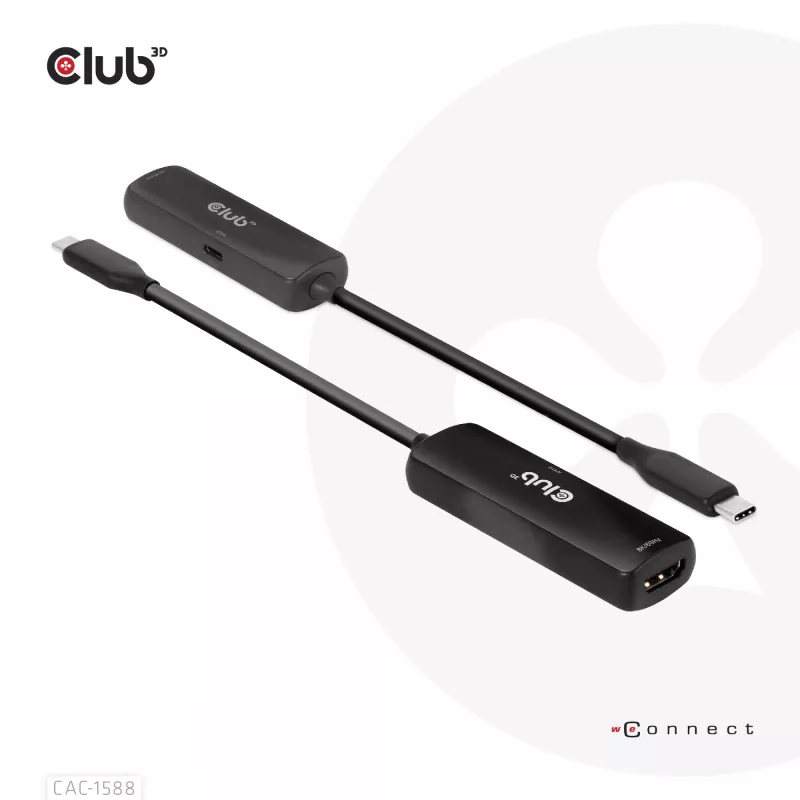

The CLUB3D CAC-1588 is a compact USB Gen2 Type-C to HDMI adapter that converts a USB-C or Thunderbolt host supporting DP1.4 Alt Mode into an HDMI output. Using DP1.4 Alt Mode with DSC 1.2, the adapter supports HDMI video resolutions up to 8K at 60 Hz or 4K at 120 Hz and is compatible with HDR10+. A separate USB-C PD port supports Power Delivery 3.0 with up to 100 W charging while the HDMI port transmits high-quality video to HDMI displays. The adapter is small, lightweight and designed to meet ROHS, FCC and CE EMI standards.

Advantages

This adapter enables high-resolution video output (8K60Hz or 4K120Hz) with HDR10+ and DSC 1.2 compression from USB-C or Thunderbolt devices that support DP1.4 Alt Mode. It includes a dedicated USB-C PD port for up to 100 W Power Delivery charging while simultaneously driving an HDMI display. The compact design and lightweight construction make it convenient for travel and desktop use, and it meets common regulatory EMI standards.

Suitable for

• Connecting laptops or tablets with USB-C/Thunderbolt (DP1.4 Alt Mode) to HDMI monitors or TVs
• Watching high-resolution video content on an external display with HDR10+
• Presentations or multimedia playback while charging the host device via PD 3.0

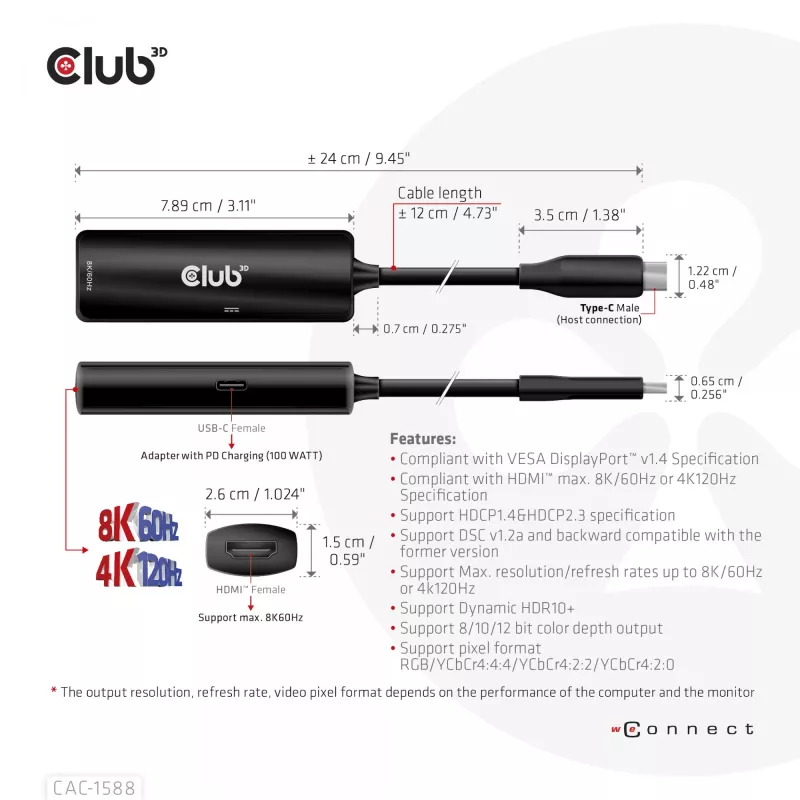

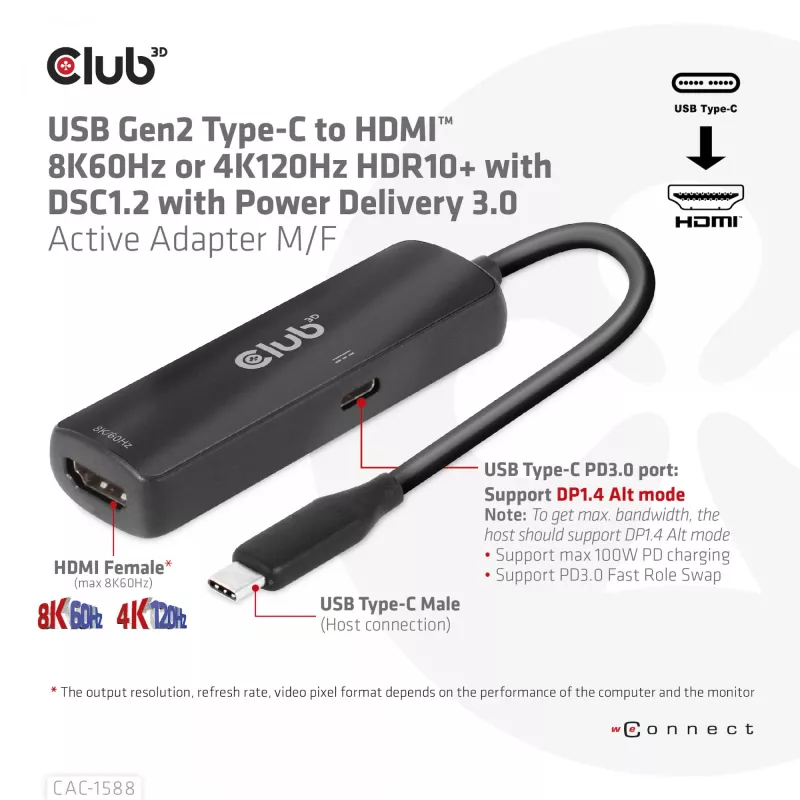

Key specifications

• Model: CLUB3D CAC-1588
• Input: USB Type-C (DP1.4 Alt Mode compatible)
• Output: HDMI (supports up to 8K@60Hz or 4K@120Hz, HDR10+ via DSC 1.2)
• Power Delivery: USB-C PD 3.0 port, up to 100 W
• Cable length: 0.17 m
• Colour: Black
• Weight: 0.04 kg
• Compliance: ROHS, FCC, CE EMI standards

How to use

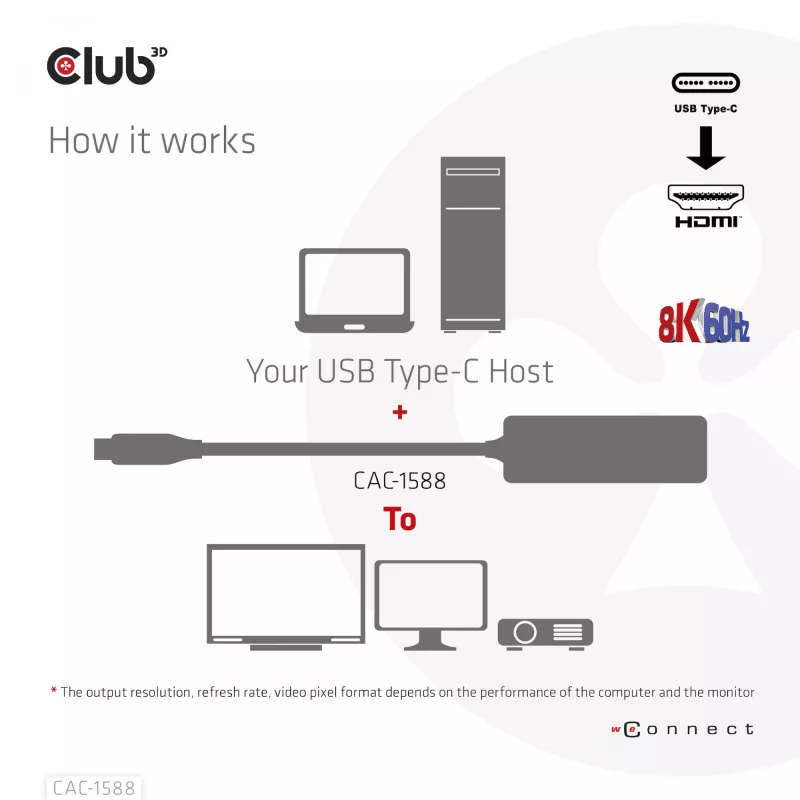

Connect the adapter's USB-C plug to a host device that supports DP1.4 Alt Mode (USB-C or Thunderbolt). Plug an HDMI cable from the adapter's HDMI port to the HDMI input on your monitor or TV. If charging is required, attach a USB-C PD charger to the adapter's PD port to deliver up to 100 W to the host while video is transmitted. Ensure display settings on the host are configured to use the external display and select the appropriate resolution and refresh rate supported by your display.

Recommendations

Use high-quality HDMI cables rated for the target resolution and refresh rate (for example, certified HDMI 2.1 cables for 8K/4K120) and a PD charger capable of delivering the required wattage to ensure stable video output and charging. Verify that your host device supports DP1.4 Alt Mode and DSC if you require higher resolutions like 8K60Hz or 4K120Hz.
