CLUB3D USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock con Fuente de Alimentación 100 Watt

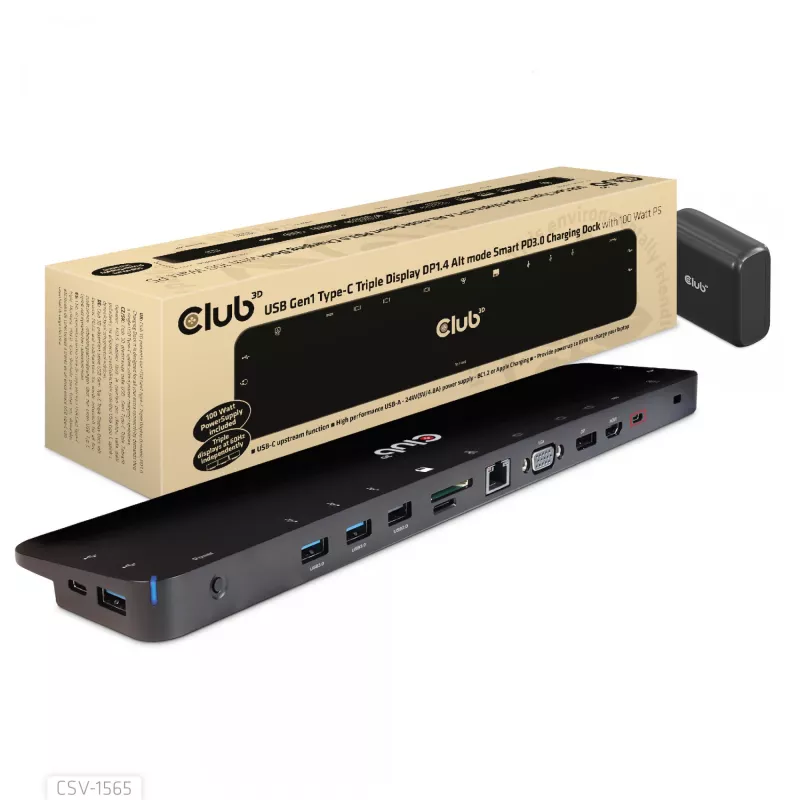

The Club-3D CSV-1565 USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock combines video, data, power, Ethernet and audio in a single compact adapter aimed at frequent travellers. It provides three different video outputs—HDMI, DisplayPort and VGA—supporting multiple monitor setups via MST: one HDMI 4K60Hz plus one DisplayPort 4K60Hz and one VGA 1920x1080@60Hz, or alternatively one 4K30Hz and two 1080p@60Hz outputs. The dock also offers several USB Type-A ports and a USB Type-C data port for peripherals, Micro SD and SD/MMC card slots for memory reading, a 3.5 mm audio jack for headphones, and a Gigabit Ethernet port for wired network access.

Advantages

The USB Type-C charging port supports PD3.0 so the dock can be powered by an external PD adapter and simultaneously charge the host notebook or device, reducing the need to carry a separate laptop power supply. Dynamic current detection and power distribution adjust charging according to the dock's actual consumption, allowing the host to receive optimal power. The adapter supports DP1.4 Alt Mode hosts (PCs, laptops, mobile phones) and provides MST multi-monitor functionality for flexible display configurations.

Key specifications

• Model: Club-3D CSV-1565
• Interface: USB Gen1 Type-C (DP1.4 Alt Mode)

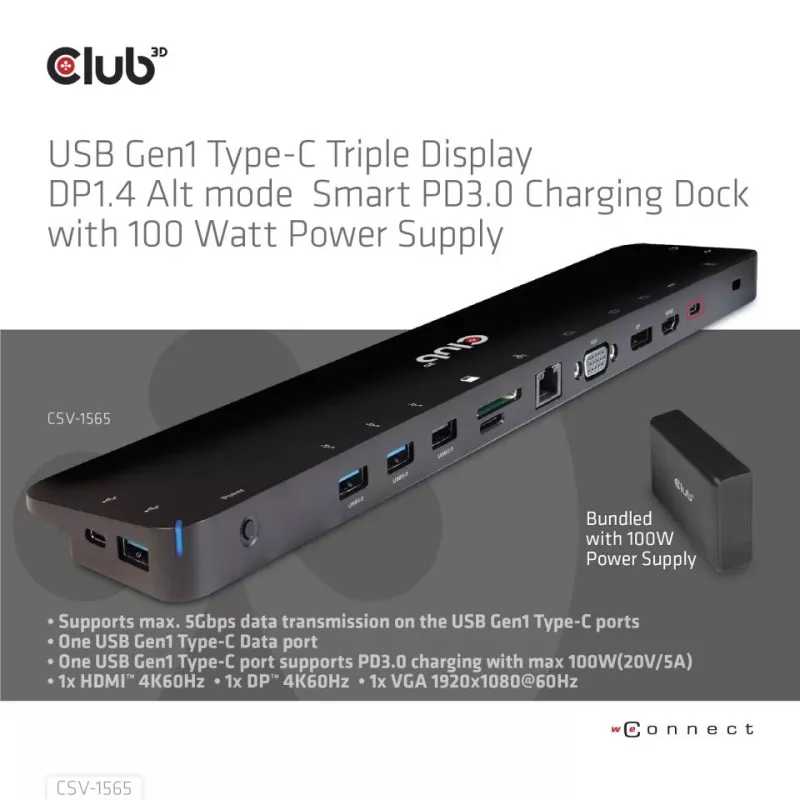

• Video outputs: 1× HDMI (up to 4K60Hz), 1× DisplayPort (up to 4K60Hz), 1× VGA (1920×1080@60Hz)
• MST modes: 1×4K60 + 1×4K60 + 1×1080p OR 1×4K30 + 2×1080p@60Hz (depending on host capability)

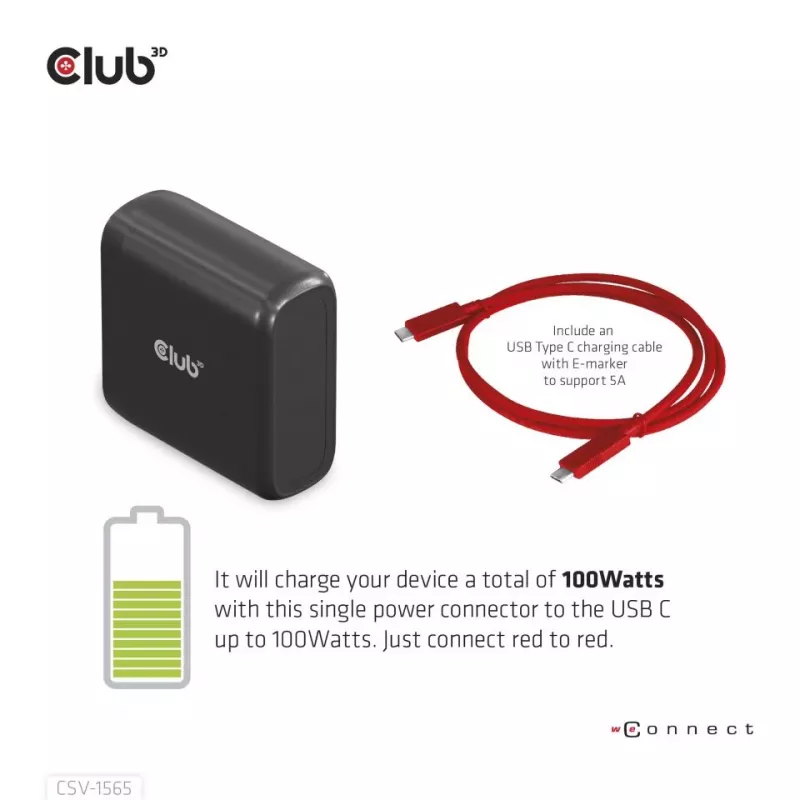

• Power delivery: USB Type-C PD3.0 charging input (supports charging host while dock is powered)
• USB ports: Multiple USB Type-A and one USB Type-C data port
• Card reader: Micro SD and SD/MMC slots
• Audio: 3.5 mm headphone jack
• Network: Gigabit Ethernet port

How to use

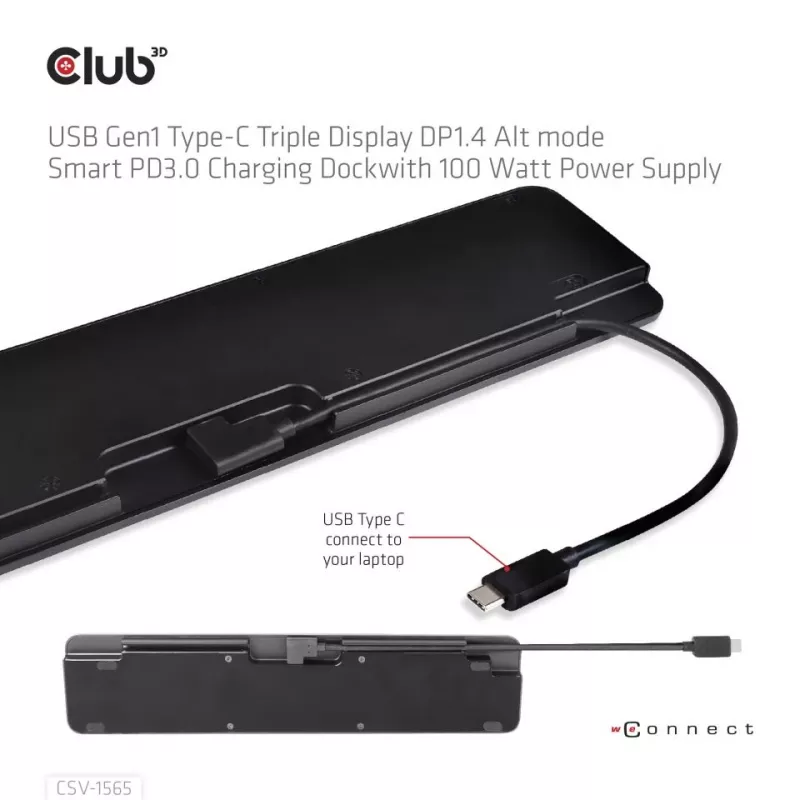

Connect the dock to a PD3.0 USB-C power adapter to provide power to the dock and optionally charge the host device. Plug the host device into the dock’s USB-C port that supports DP1.4 Alt Mode to enable video output. Attach displays to the HDMI, DisplayPort and VGA ports as needed; configure multi-monitor settings in the host operating system for MST if using multiple screens. Insert memory cards into the Micro SD or SD/MMC slots and connect USB peripherals to the Type-A or Type-C data ports. Use the 3.5 mm jack for audio output and connect a network cable to the Gigabit Ethernet port for wired internet access.

Recommendations

Ensure your host device supports DisplayPort 1.4 Alt Mode for full video functionality. Use a PD3.0-compliant power adapter with sufficient wattage to power the dock and charge the host. For best multi-display performance, verify your host GPU and OS support MST and the combined resolution/refresh rates.
