HUB CLUB3D USB Gen2 Type-C a Dual DisplayPort 4k60Hz 7-en-1

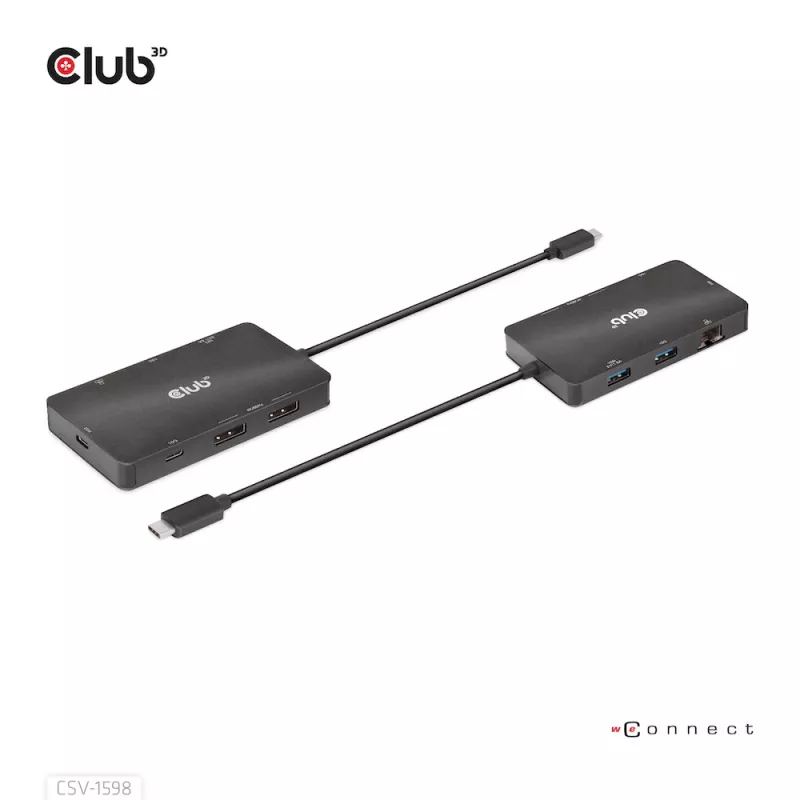

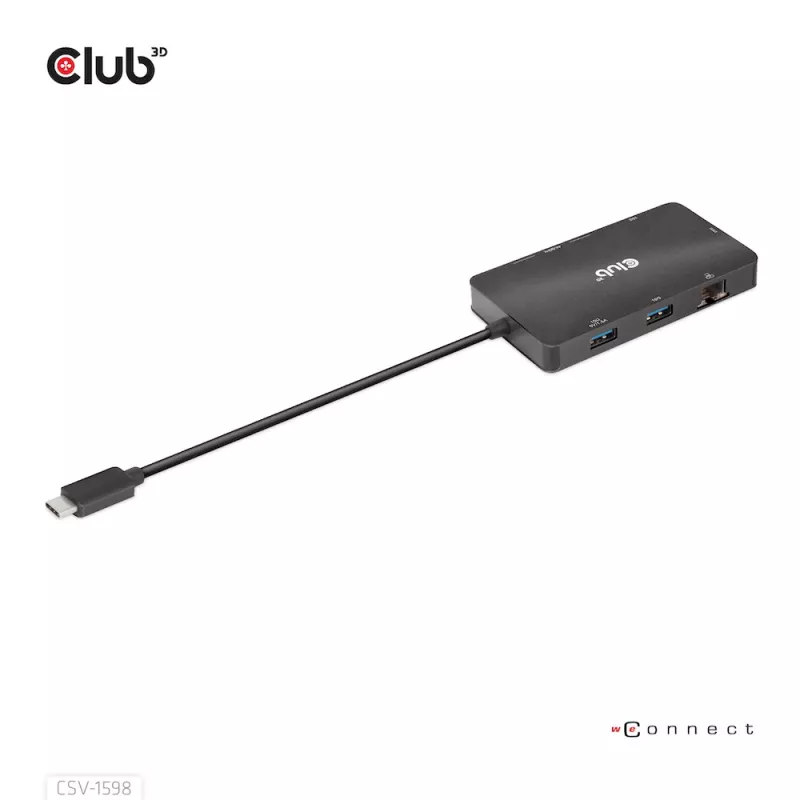

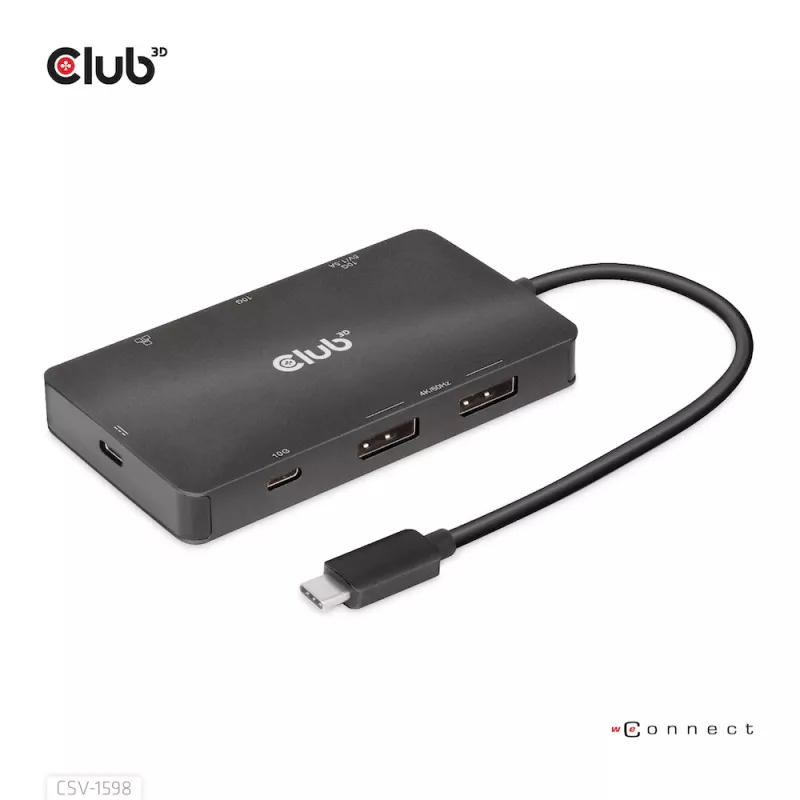

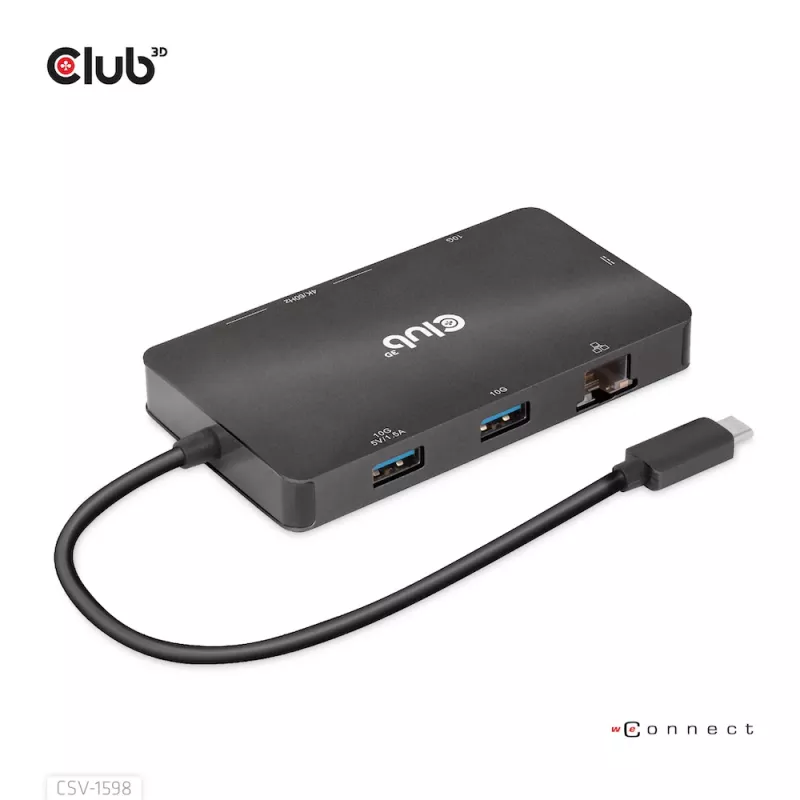

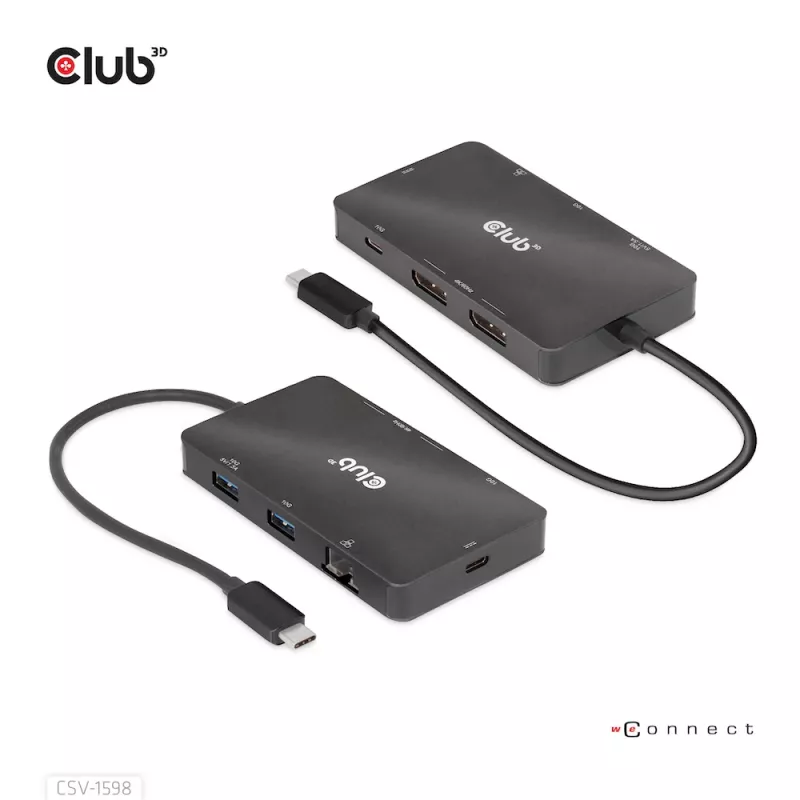

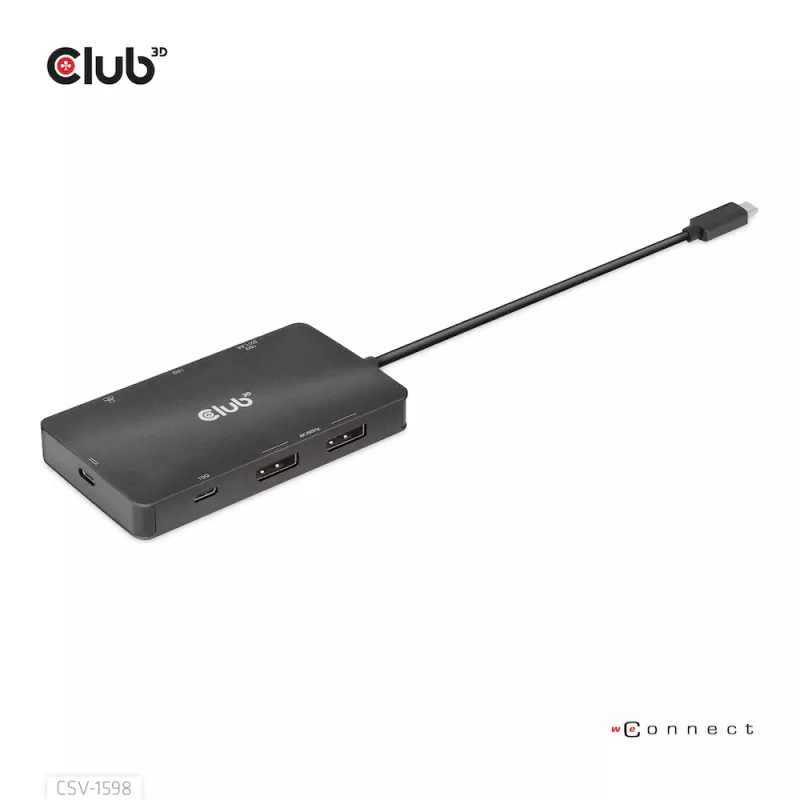

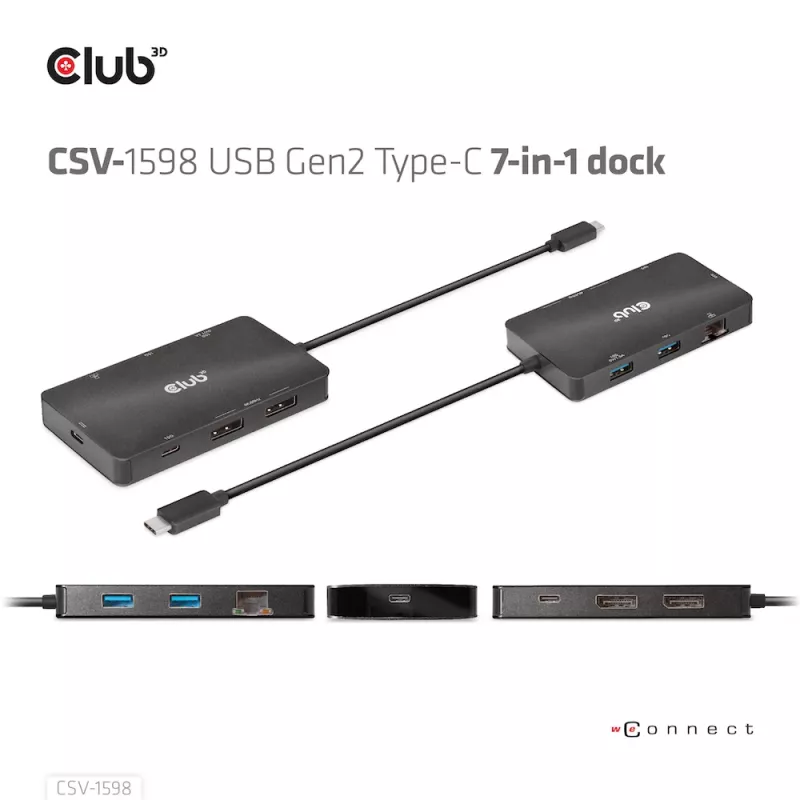

The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display portable dock with DisplayPort 1.4 Alt Mode. It expands a single USB-C port into multiple ports, combining video, data and power in one compact adapter. The dock supports connecting two DisplayPort displays at 4K 60Hz, multiple USB devices for data transfer, a wired Ethernet connection, and includes a PD charging port that supports up to 100W to power the adapter and charge the host device simultaneously. The adapter is compatible with hosts that support DP Alt Mode over USB Type-C.

Advantages

The CSV-1598 provides a simple way to add dual DisplayPort video outputs, fast USB data connections and wired network access through a single USB-C connection. Integrated PD charging up to 100W maintains device power while using the dock. Its support for DisplayPort 1.4 Alt Mode enables 4K @ 60Hz on two displays from a single USB-C port, reducing cable clutter and expanding workstation capabilities without additional power bricks.

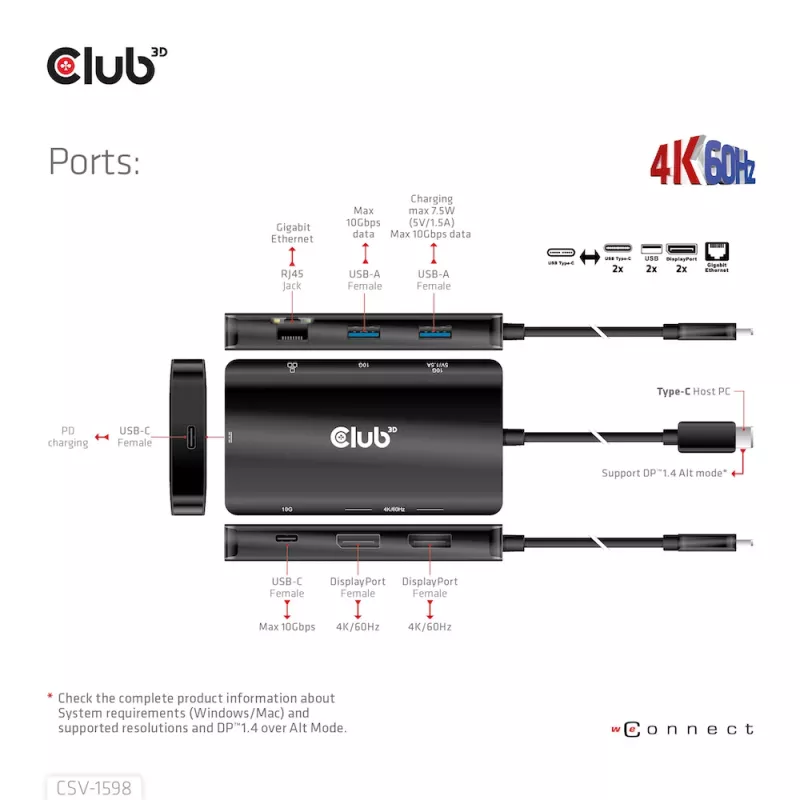

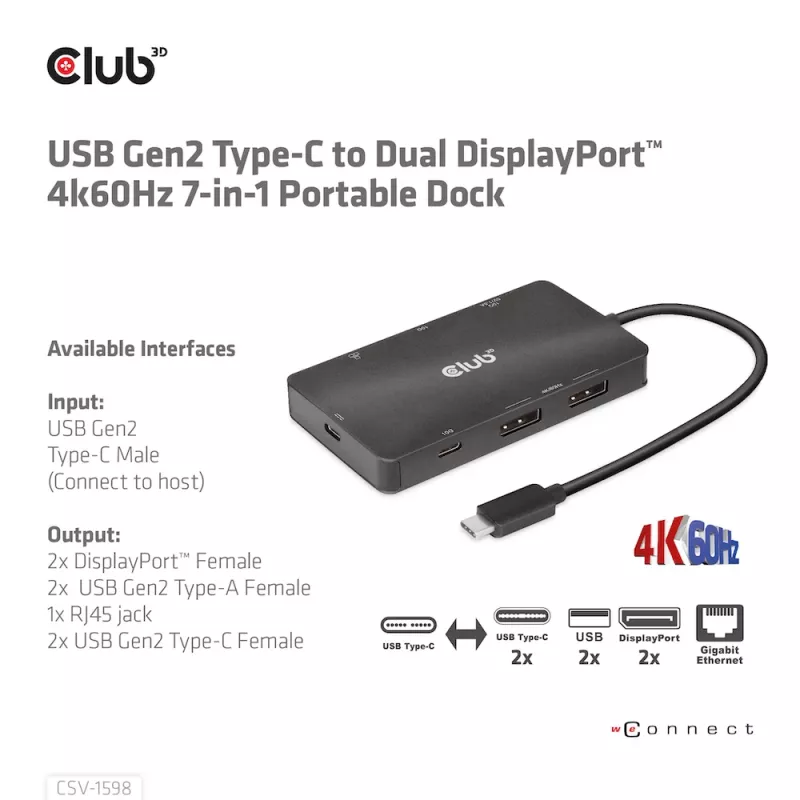

Key specifications

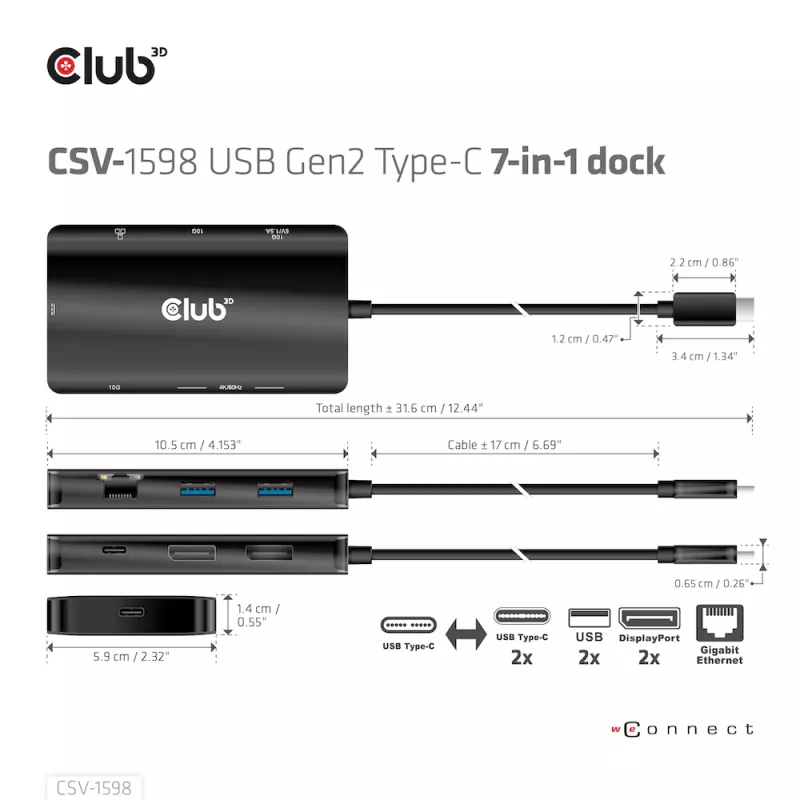

• Model: Club 3D CSV-1598
• Type: 7-in-1 USB Gen2 Type-C to Dual Display portable dock

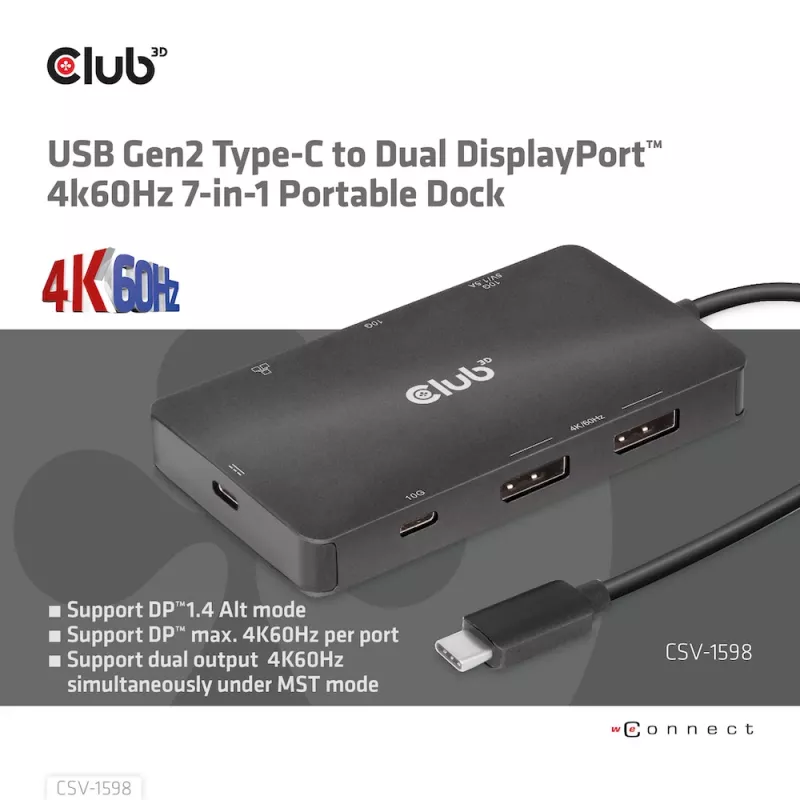

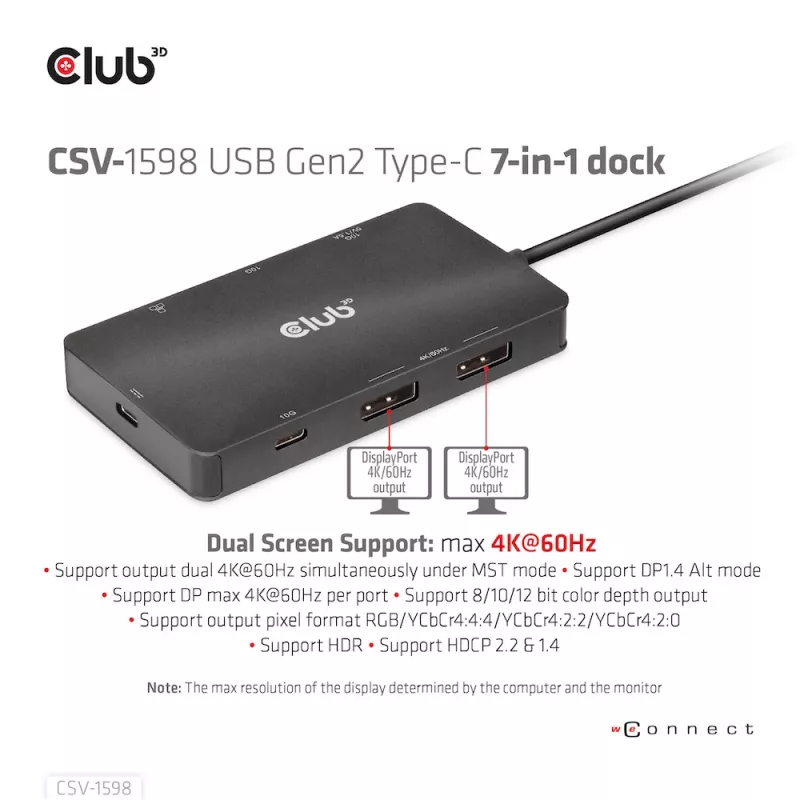

• Video: Dual DisplayPort (DP 1.4 Alt Mode), up to 4K @ 60Hz on each display
• Data: Multiple USB ports for device connection and data transfer (USB Gen2 over Type-C host)
• Network: Gigabit Ethernet (via RJ45)
• Power delivery: USB-C PD input, supports up to 100W charging
• Compatibility: Works with hosts that support DisplayPort Alt Mode over USB-C

How to use

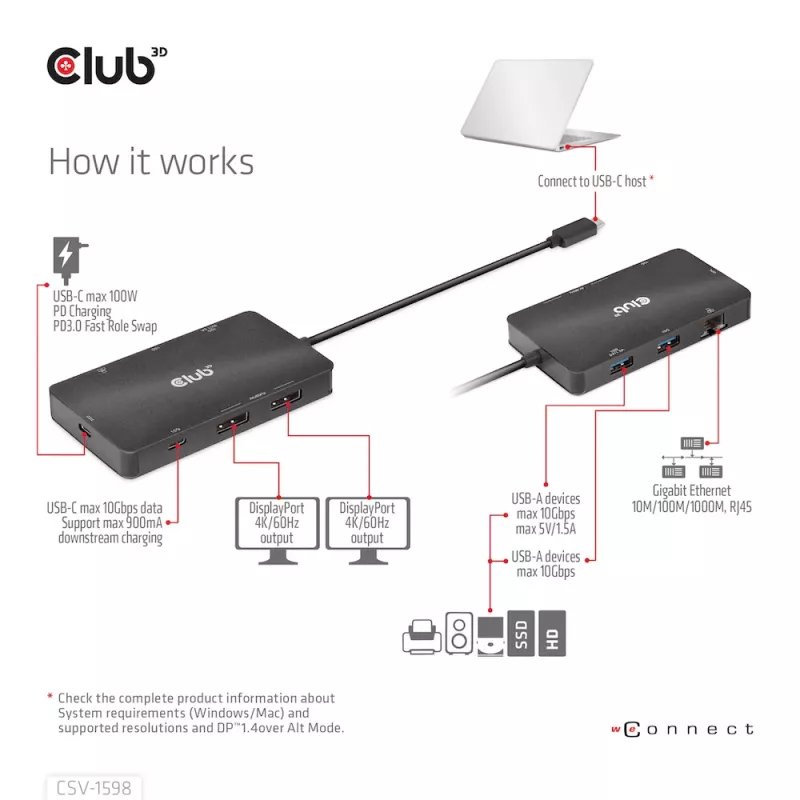

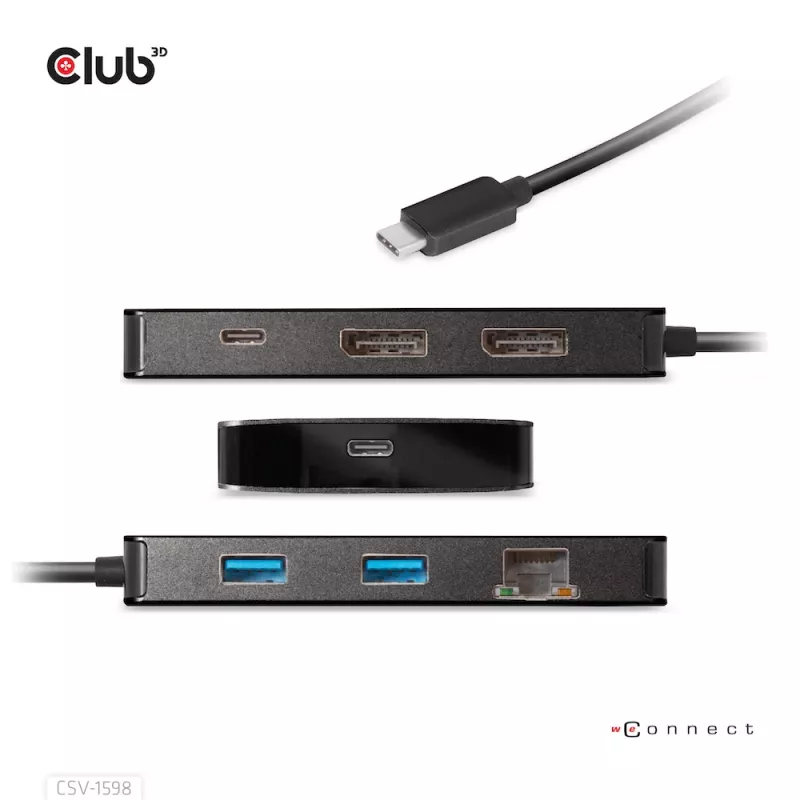

Connect the CSV-1598 to a compatible USB Type-C port on your host that supports DP Alt Mode. Attach one or two DisplayPort monitors to the dock's DisplayPort outputs. Connect USB peripherals to the available USB ports and plug an Ethernet cable into the RJ45 port if wired network is required. If charging is needed, connect a PD-capable USB-C power adapter to the PD input; the dock supports up to 100W to power the adapter and charge the host concurrently.

Recommendations

Use a host device that supports DisplayPort Alt Mode over USB-C for full video functionality. For dual 4K@60Hz output, ensure your host's USB-C port and attached displays support DP 1.4 and use high-quality DisplayPort cables. Use a PD charger rated up to 100W to maintain both adapter functions and host charging.
