Hub MST DisplayPort 1.4 a DisplayPort + HDMI 4K60Hz CLUB3D CSV-7220

The CLUB3D CSV-7220 is an MST hub that splits a single DisplayPort 1.4 output into one DisplayPort and one HDMI output, enabling multi-monitor setups from a single DP1.4 port. It supports driving one DisplayPort and one HDMI display simultaneously at up to 4K/60Hz, or a single DisplayPort at higher resolutions (up to 8K/30Hz in MST mode on supported Windows systems) when the source and displays meet DP1.4 and DSC1.2 requirements. The hub is externally powered via the included USB Type-A to Micro-USB cable and is compact and lightweight for easy integration into laptop or desktop setups.

Advantages

The MST hub provides dual-display capability from one DisplayPort 1.4 port without requiring additional graphics outputs. It supports high-resolution output (up to 4K at 60Hz per display when bandwidth allows) and is compatible with a variety of devices that have a free DP port, such as tablets, laptops and PCs. The compact grey housing, low weight (48 g) and 1 m cable length make the device portable and simple to position in small workspaces. Compliance with ROHS, FCC and CE EMI standards ensures basic regulatory conformity.

Suitable for

• Expanding a laptop or PC with a single DisplayPort 1.4 output to two external displays
• Working with one DisplayPort and one HDMI monitor at up to 4K/60Hz each (when source supports DP1.4 + DSC1.2)
• Connecting displays for productivity tasks, office work, or light content review

Key specifications

• Model: CLUB3D CSV-7220
• Input: DisplayPort 1.4
• Outputs: DisplayPort + HDMI

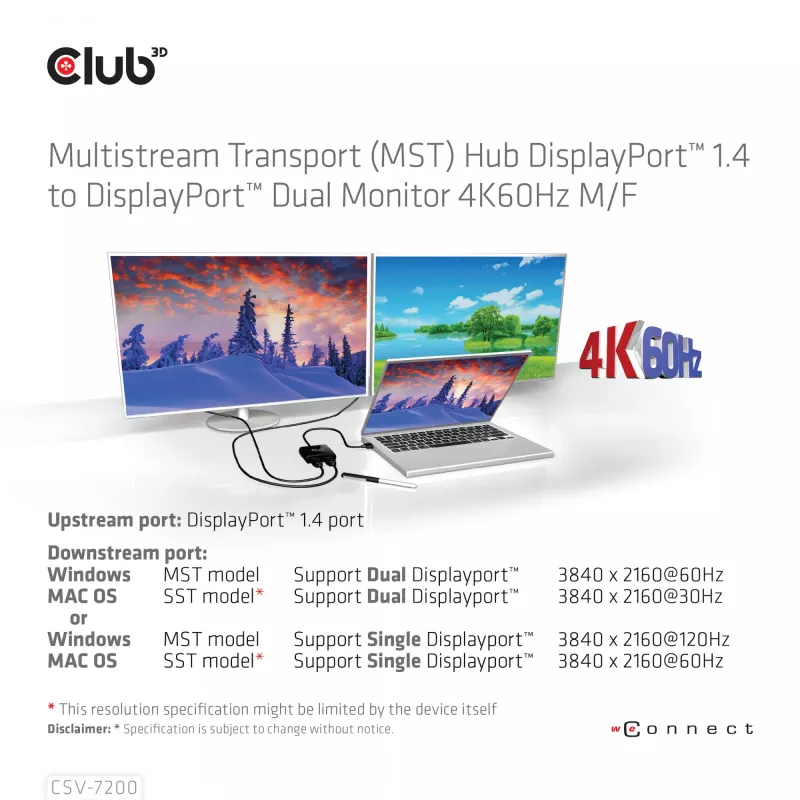

• Maximum supported: dual 4K60Hz (subject to source bandwidth and DSC support); single DP up to 8K30Hz in MST on supported Windows systems

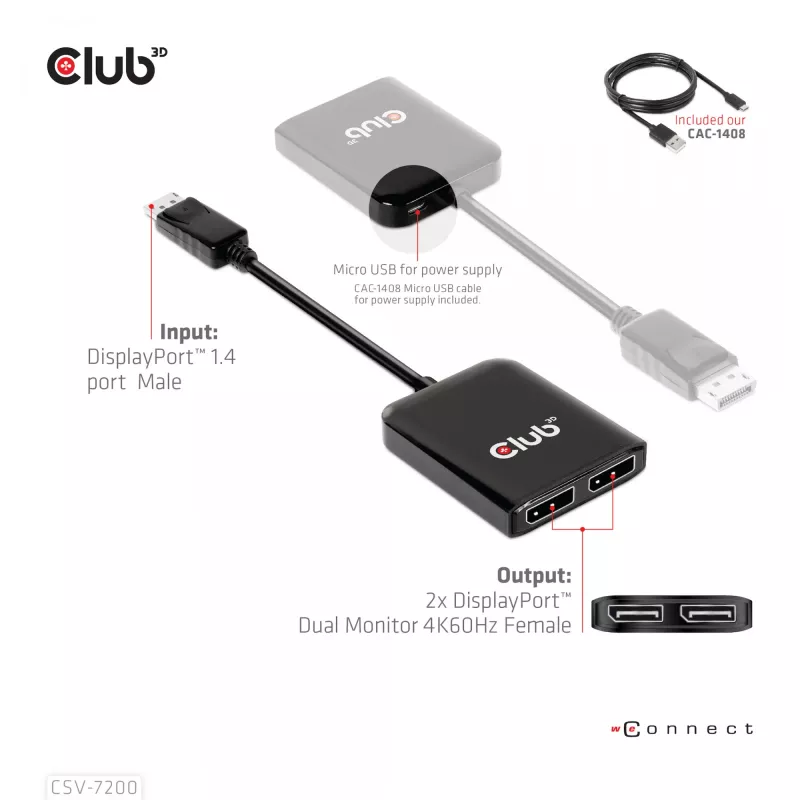

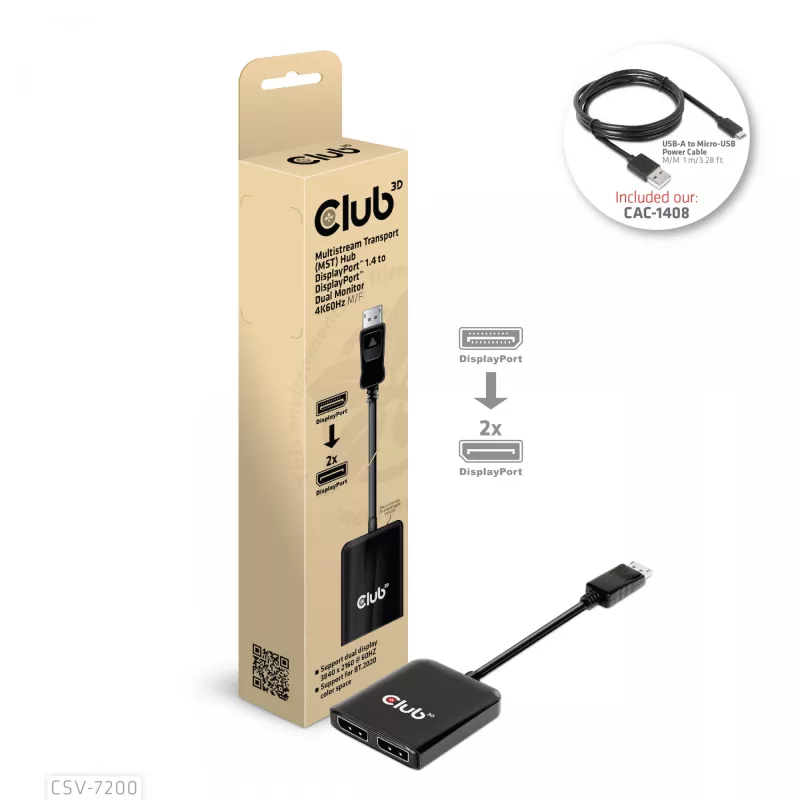

• Power: externally powered via included USB Type-A to Micro-USB cable
• Cable length: 1 m
• Weight: 0.048 kg
• Colour: Grey
• Certifications: ROHS, FCC, CE EMI

How to use

Connect the CSV-7220 hub to a free DisplayPort 1.4 port on your laptop or PC using the built-in cable. Attach one DisplayPort monitor and one HDMI monitor to the hub outputs. Connect the included USB Type-A to Micro-USB cable to a USB power source to supply the hub. On Windows systems enable MST in the display settings if needed and ensure your graphics driver and source device support DisplayPort 1.4 and DSC1.2 to reach maximum resolutions. Adjust display arrangement and resolution in the operating system display settings.

Recommendations

To achieve dual 4K@60Hz output, verify that your source device and GPU support DisplayPort 1.4 and Display Stream Compression (DSC) 1.2; otherwise, maximum resolutions may be reduced. Use quality DisplayPort and HDMI cables and connect the hub to a stable USB power source when driving high-resolution displays.
