Hub USB Gen1 Type-C 9 en 1 CLUB3D con HDMI, VGA, 2x USB Gen1 Type-A, RJ45, ranuras para tarjetas SD/Micro SD y conector hembra USB Gen1 Type-C

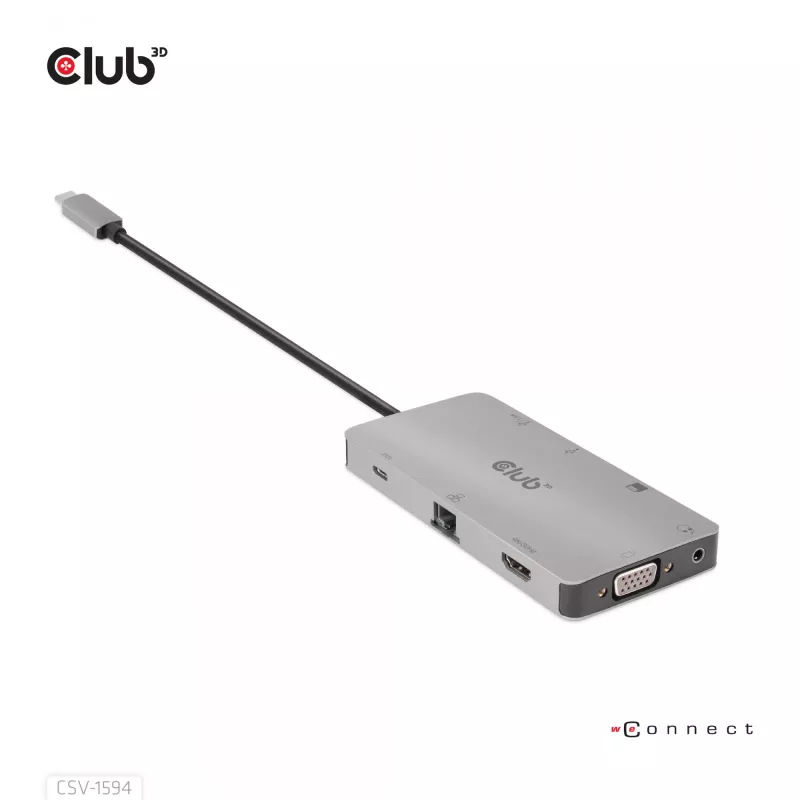

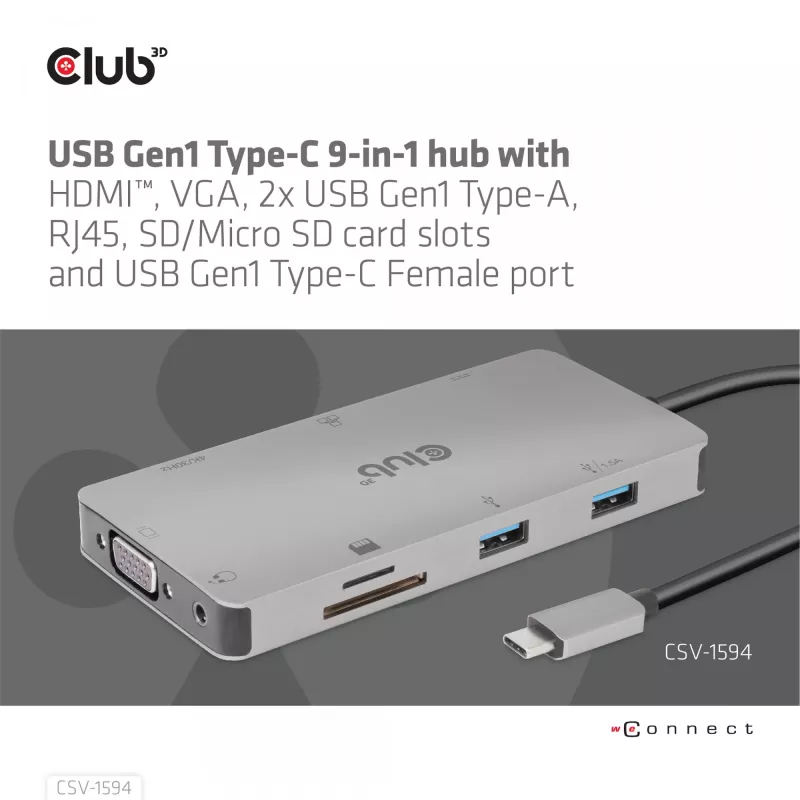

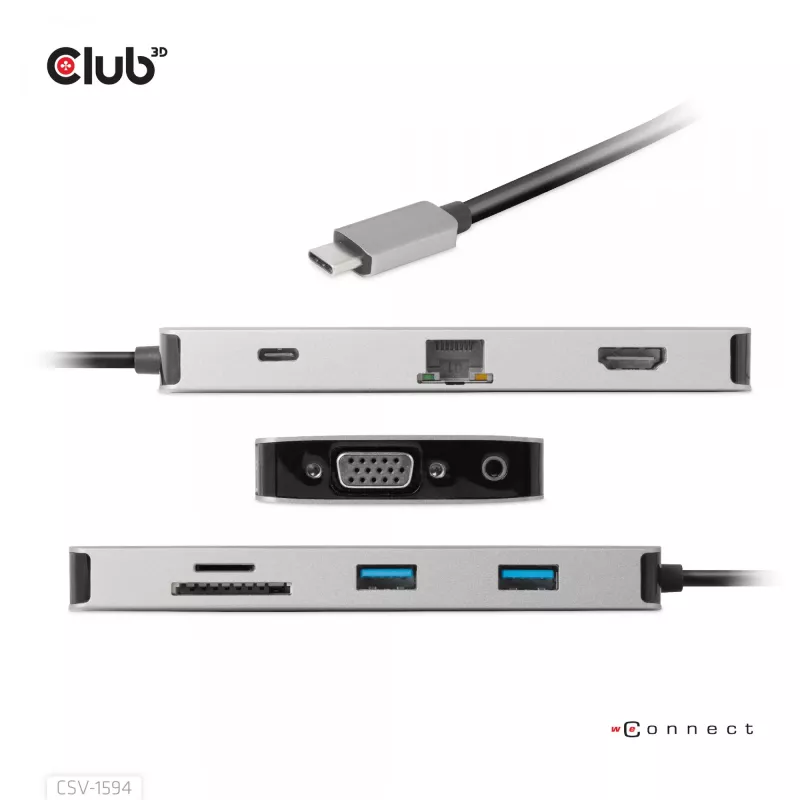

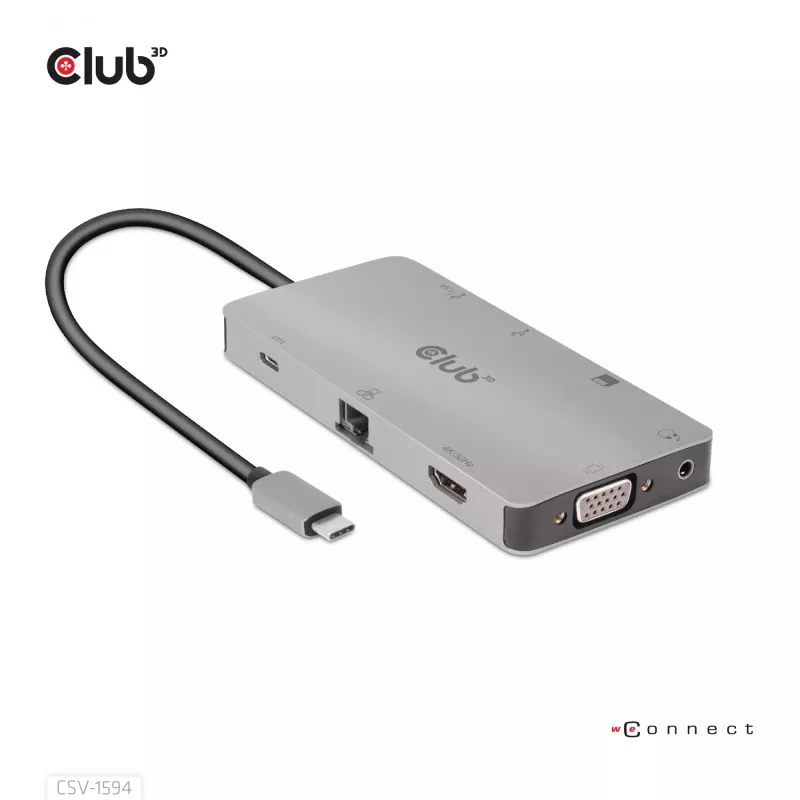

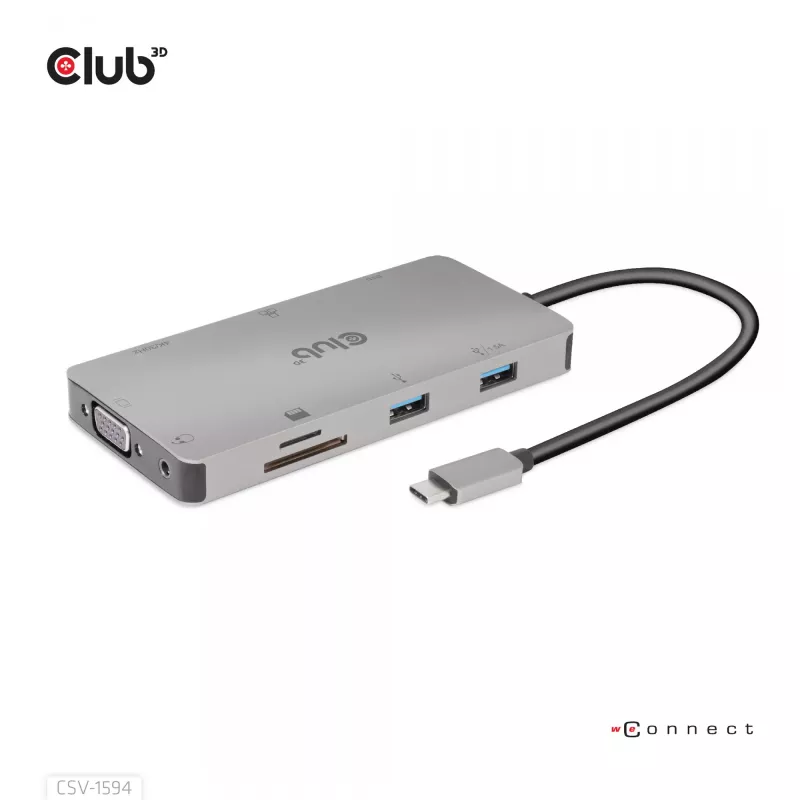

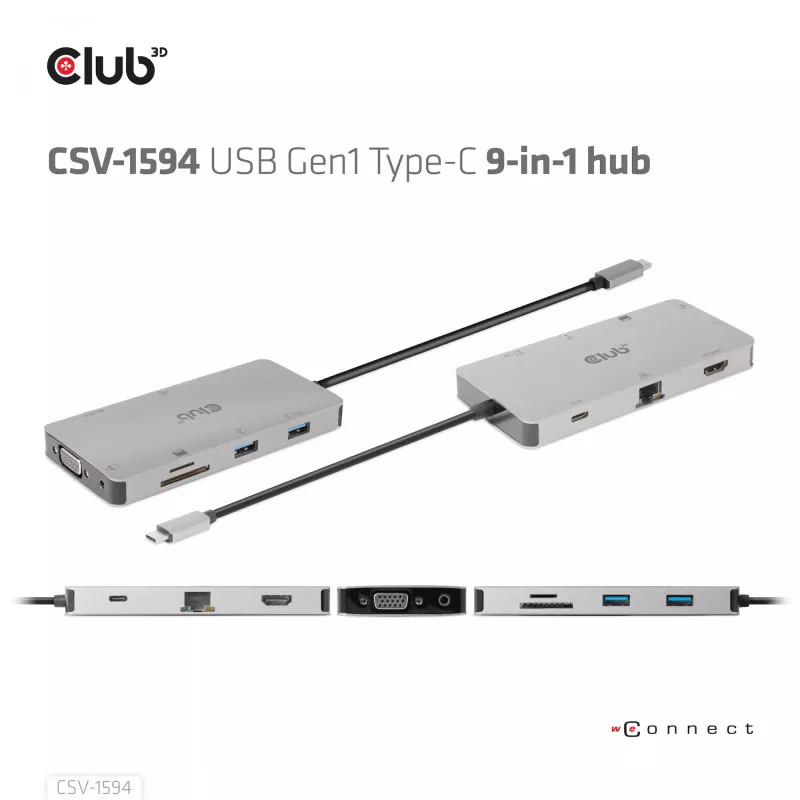

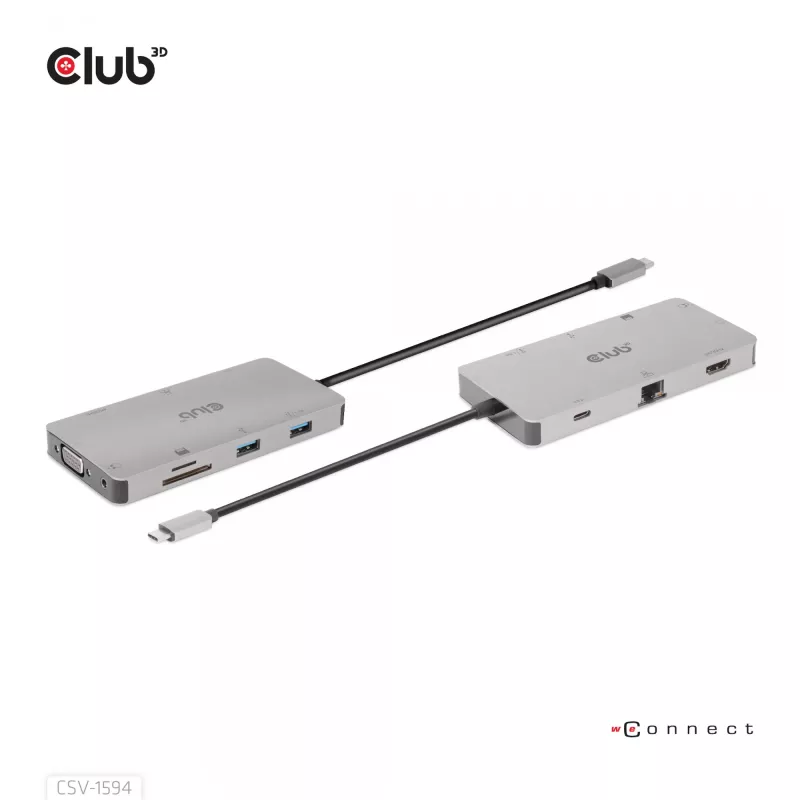

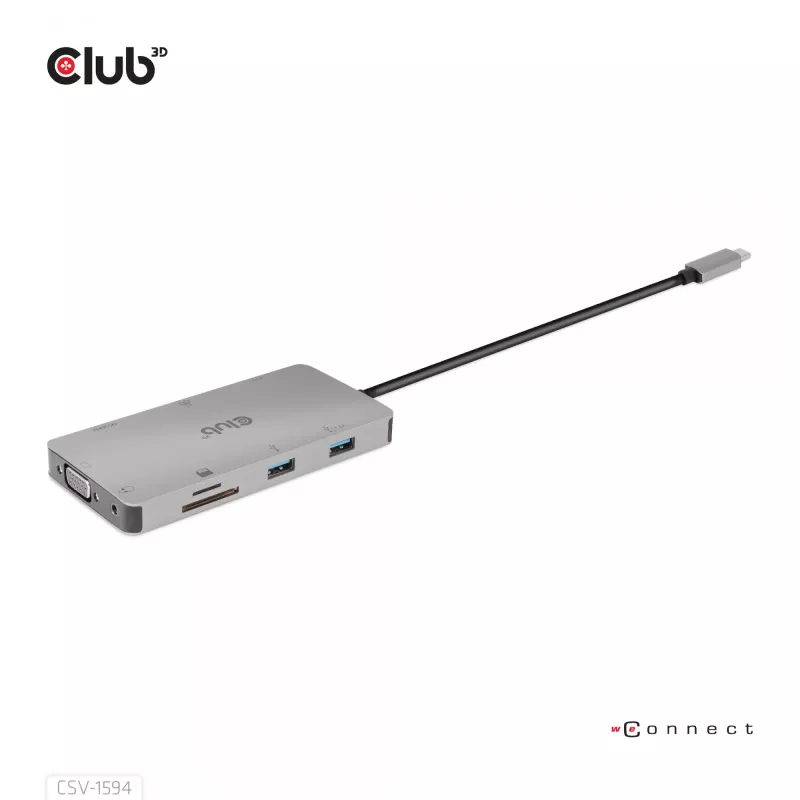

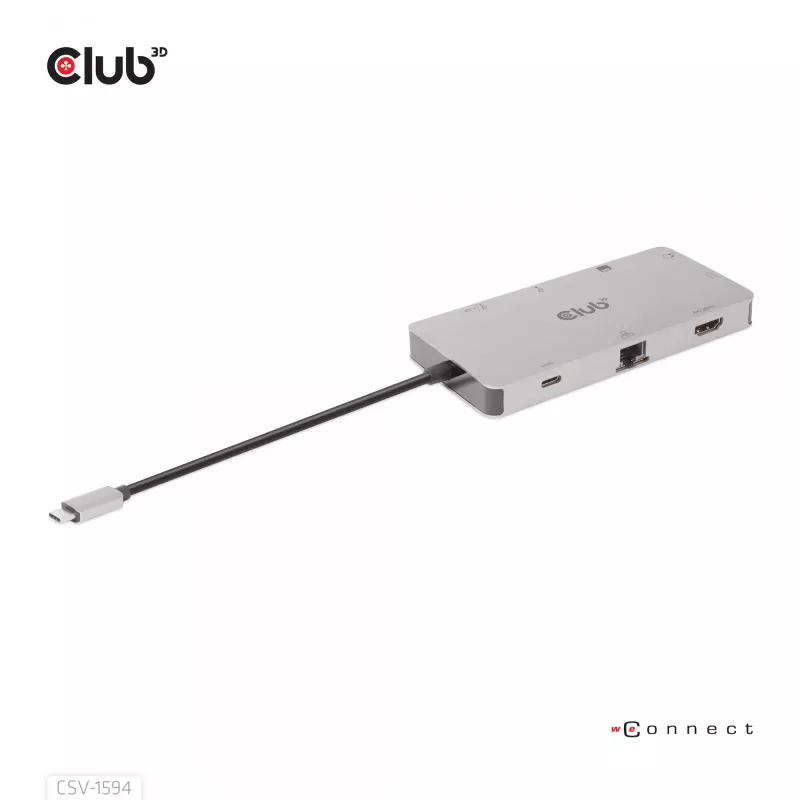

The Club 3D CSV-1594 USB Gen1 Type-C 9-in-1 hub expands a single USB Gen1 Type-C port into multiple connections including HDMI, VGA, two USB Gen1 Type-A ports, RJ45 Gigabit Ethernet, SD and microSD card slots, and a USB Gen1 Type-C female port. It combines video, data and power interfaces to support dual-display output, data transfer up to 5 Gbps on USB Gen1 ports, Gigabit wired network access and PD charging up to 100 W. The hub is compatible with hosts that support DisplayPort 1.2 Alt Mode over USB Type-C.

Advantages

The hub allows simultaneous connection of two external displays (via HDMI and VGA) while also providing multiple USB ports for peripherals and card readers for convenient file access. A Gigabit Ethernet port offers stable wired network performance, and the USB-C PD input enables pass-through charging of the host device up to 100 W, so you can power a laptop while using the hub. The compact, all-in-one design reduces the need for separate adapters.

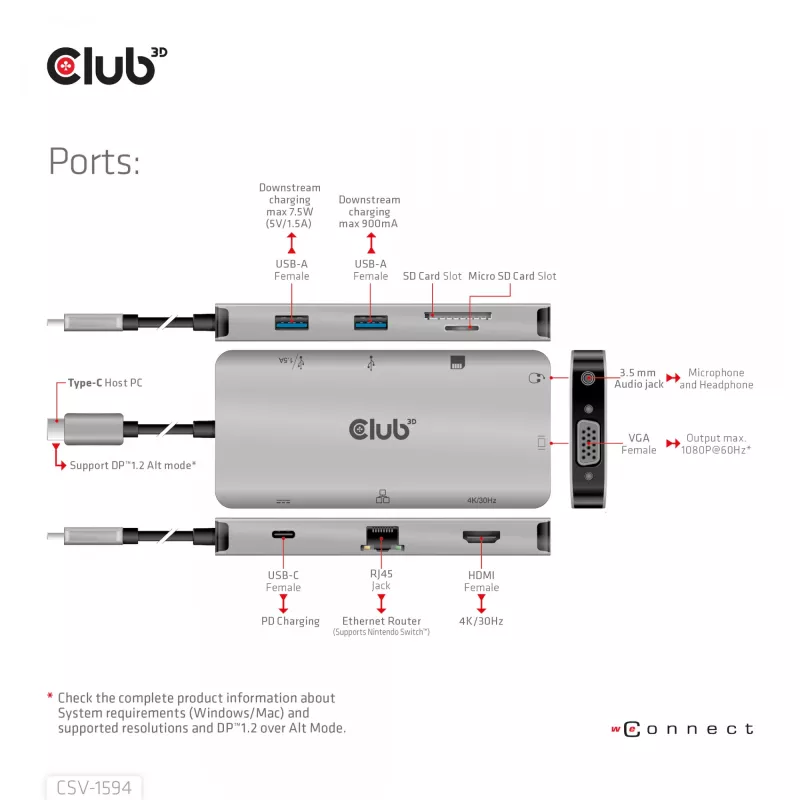

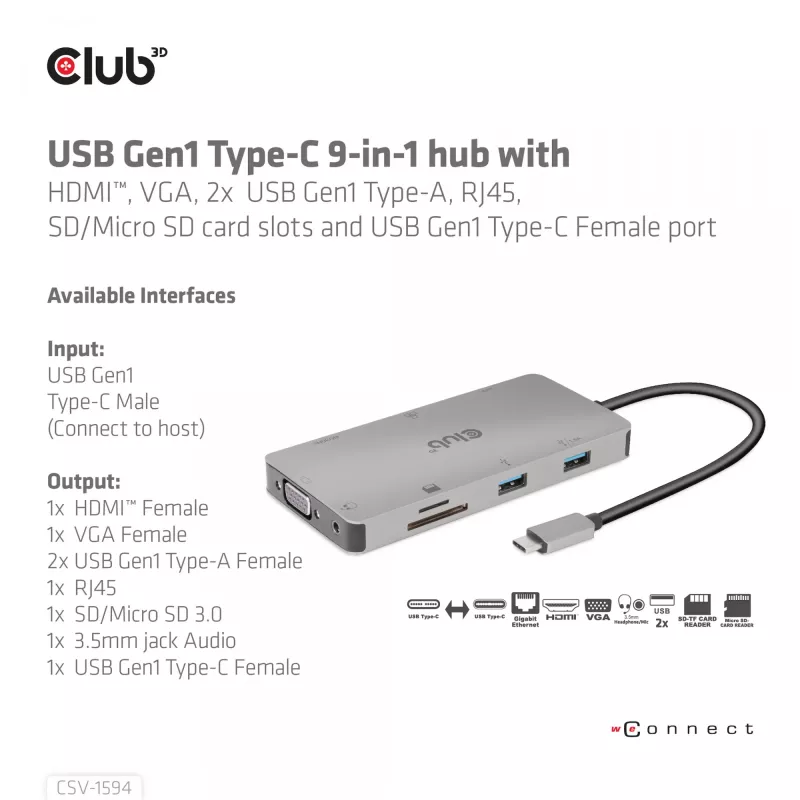

Key specifications

• Model: Club 3D CSV-1594
• Interface to host: USB Gen1 Type-C (DP 1.2 Alt Mode required for video)

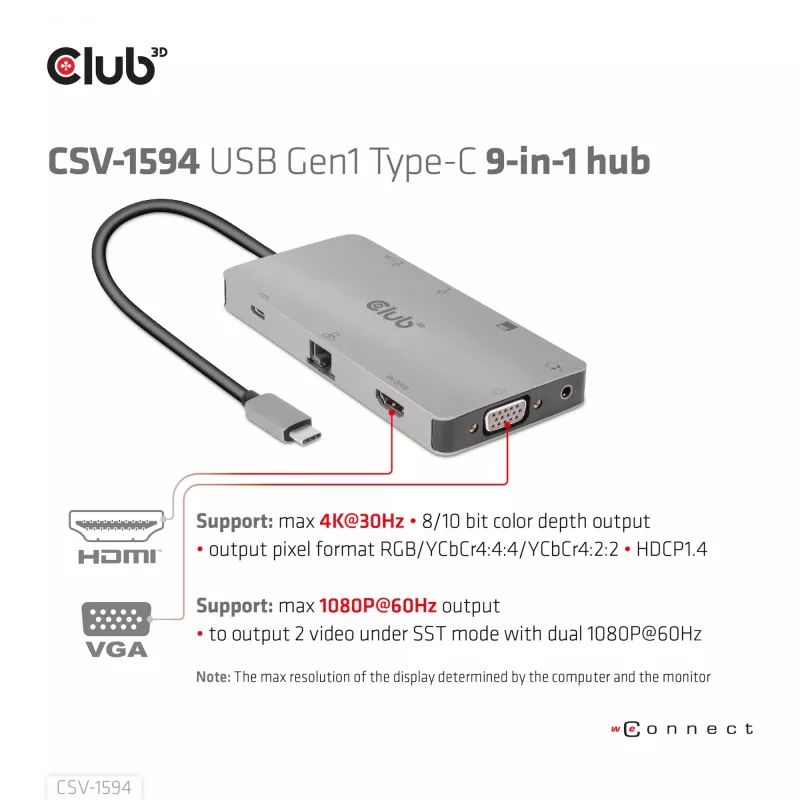

• Video outputs: HDMI and VGA (supports dual display)
• USB ports: 2× USB Gen1 Type-A, 1× USB Gen1 Type-C (female)
• Card readers: SD and microSD slots
• Network: RJ45 Gigabit Ethernet
• Data rate: up to 5 Gbps on USB Gen1 ports
• Power delivery: pass-through PD charging up to 100 W

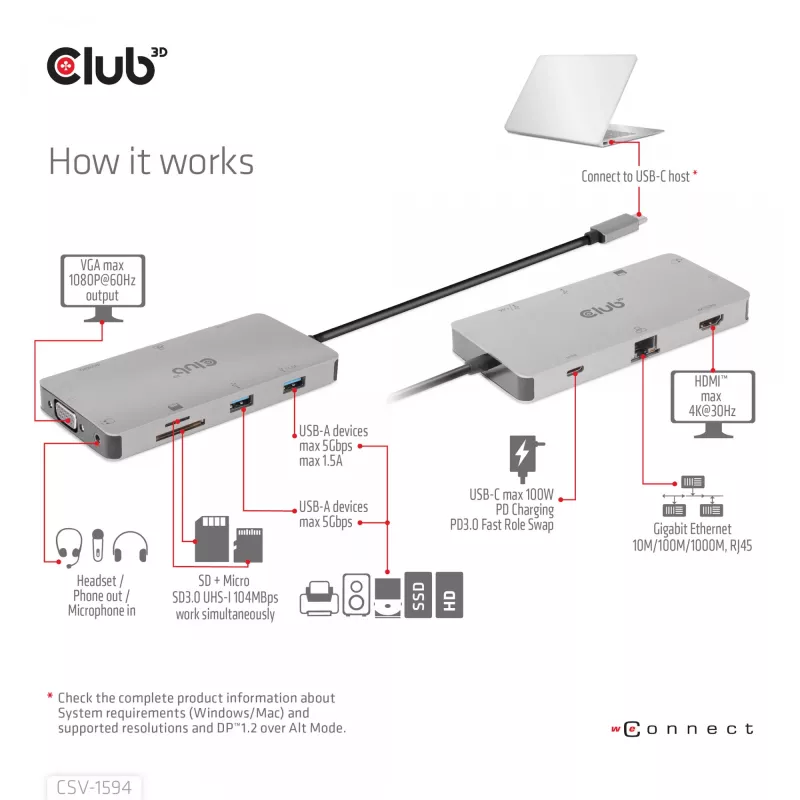

How to use

Connect the hub to a host device using the USB Type-C male connector. To use external displays, connect one monitor to the HDMI port and another to the VGA port; ensure the host supports DisplayPort 1.2 Alt Mode for video output. Plug peripherals into the USB-A ports and insert memory cards into the SD or microSD slots for file transfer. Connect an Ethernet cable to the RJ45 port for wired network access. For charging the host while using the hub, connect a USB-C PD charger to the hub’s USB-C female port (supports up to 100 W PD).
