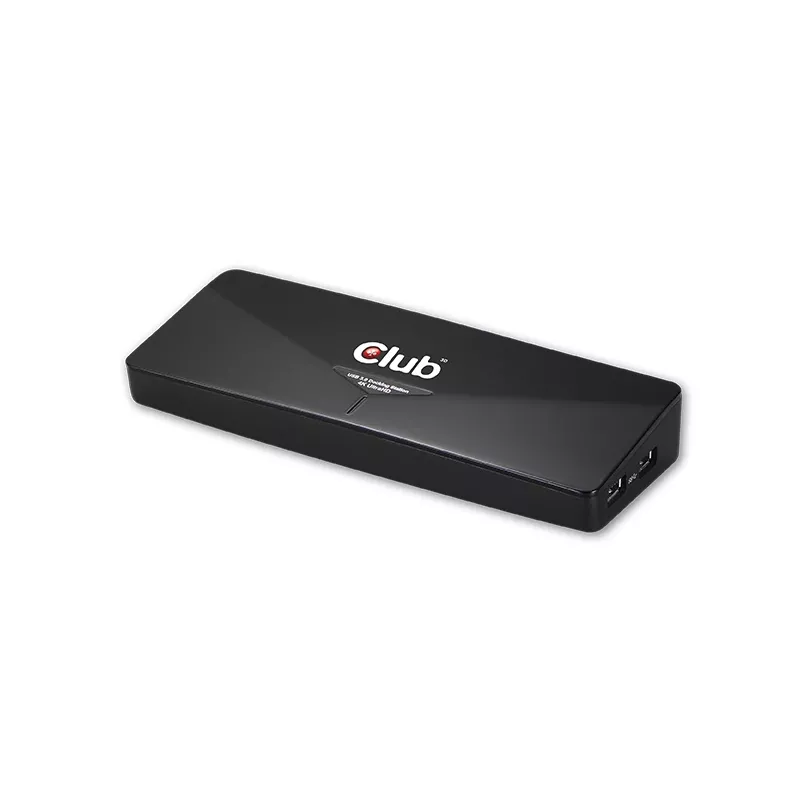

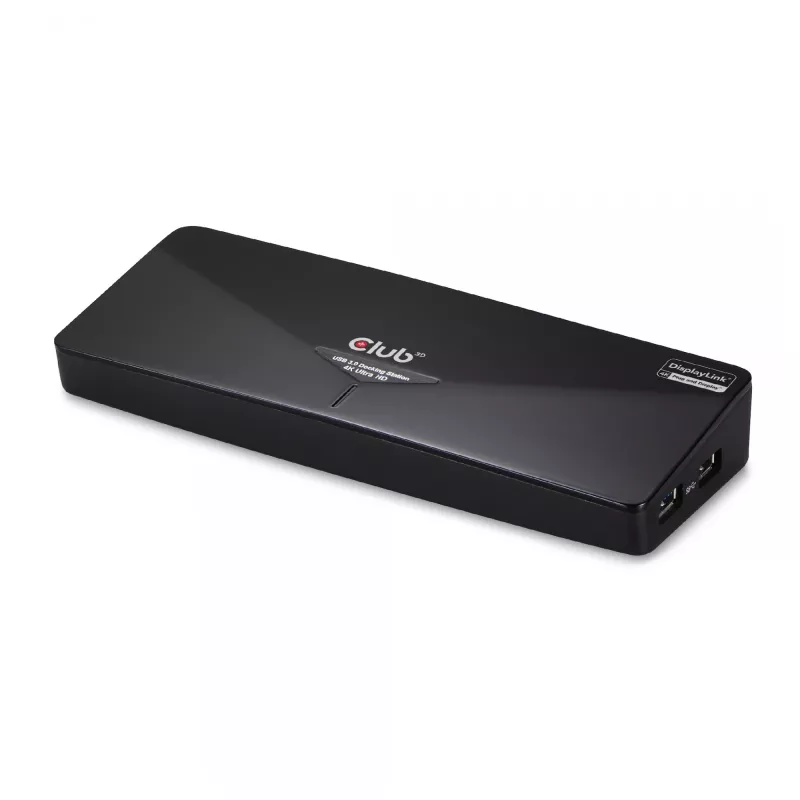

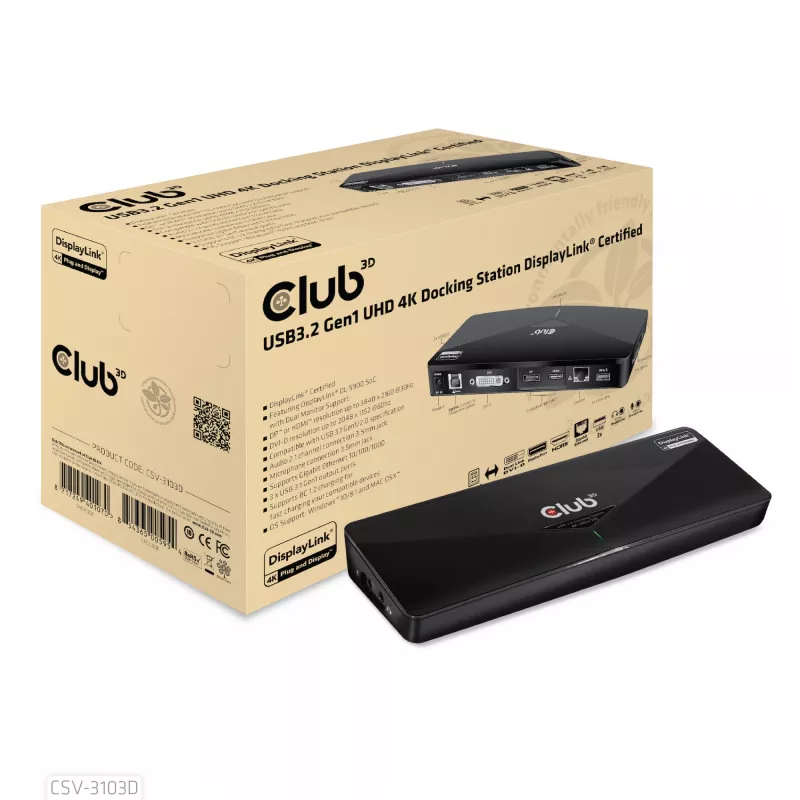

CLUB3D CSV-3103D The Club 3D Universal USB 3.1 Gen 1 UHD 4K Docking Station DisplayLink™

The Club 3D CSV-3103D is a Universal USB 3.1 Gen 1 (USB 3.2 Gen 1) UHD 4K docking station with DisplayLink technology, designed to extend connectivity for notebooks and tablets through a single USB Type-A uplink. It provides USB 3.0 data transfer speeds up to 5 Gbps, wired Gigabit Ethernet, audio I/O, and multiple video outputs including HDMI and DVI for flexible display setups.

Advantages

This docking station consolidates peripherals and display connections into one compact unit, reducing cable clutter while offering high-speed USB 3.0 ports, BC1.2 fast charging for mobile devices, and a Gigabit RJ-45 Ethernet port for stable network connectivity. Video outputs support up to 4K@30Hz for a single display and Full HD@60Hz in dual-monitor configurations (functionality depends on host and connected devices).

Suitable for

• Expanding laptop or tablet ports via a single USB 3.0 Type-A connection
• Connecting external displays using HDMI and DVI outputs
• Providing wired Gigabit Ethernet for faster, more reliable network access

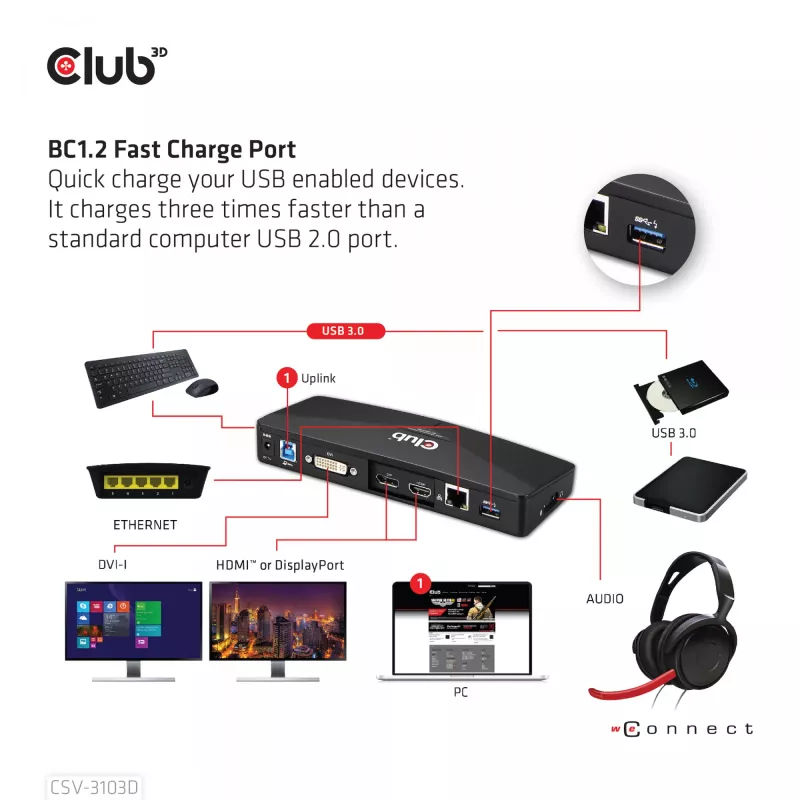

• Charging mobile devices quickly via BC1.2 fast charge port

Key specifications

• Model: Club 3D CSV-3103D
• Host interface: USB 3.2 Gen 1 (USB 3.1 Gen 1) Type-A (uplink)

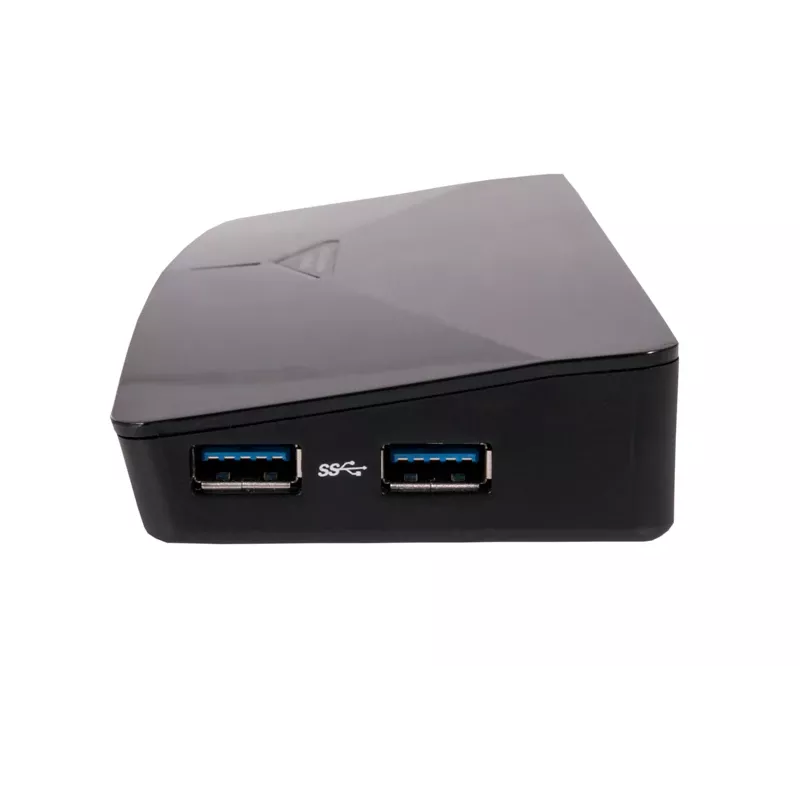

• USB ports: 3 × USB 3.2 Gen 1 (Type-A)

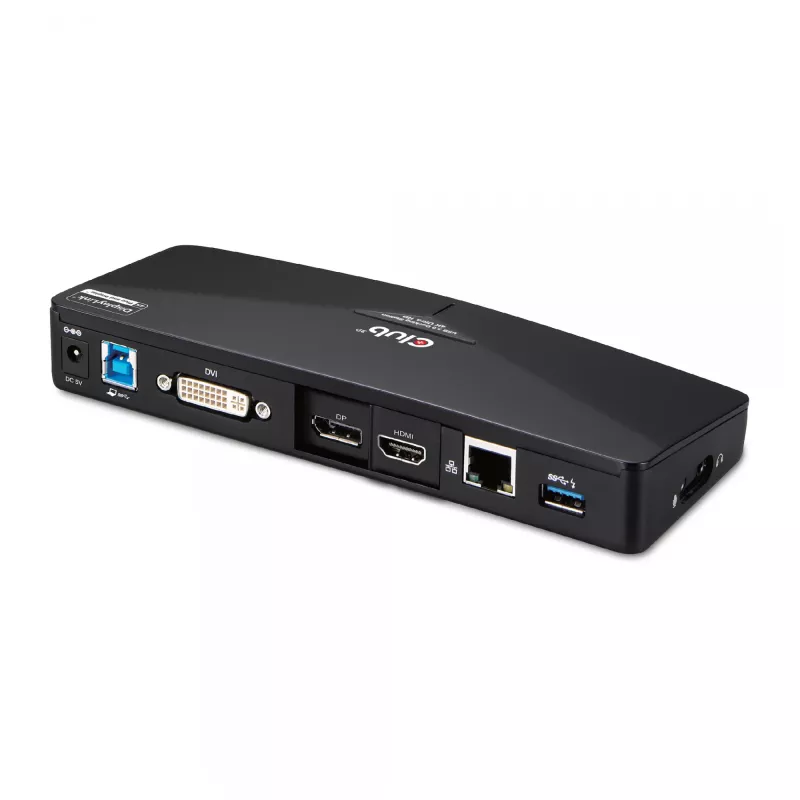

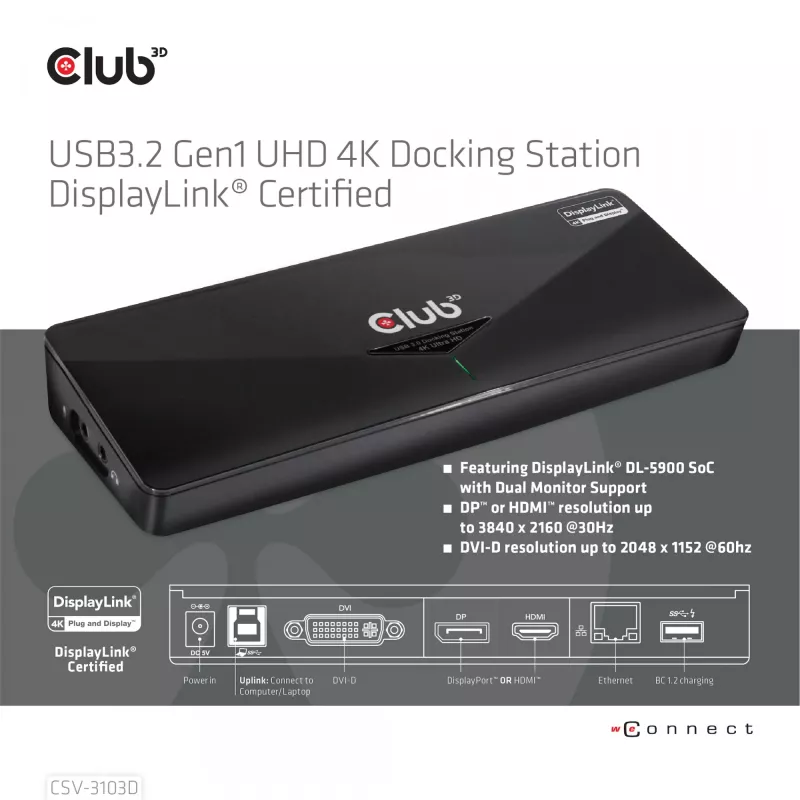

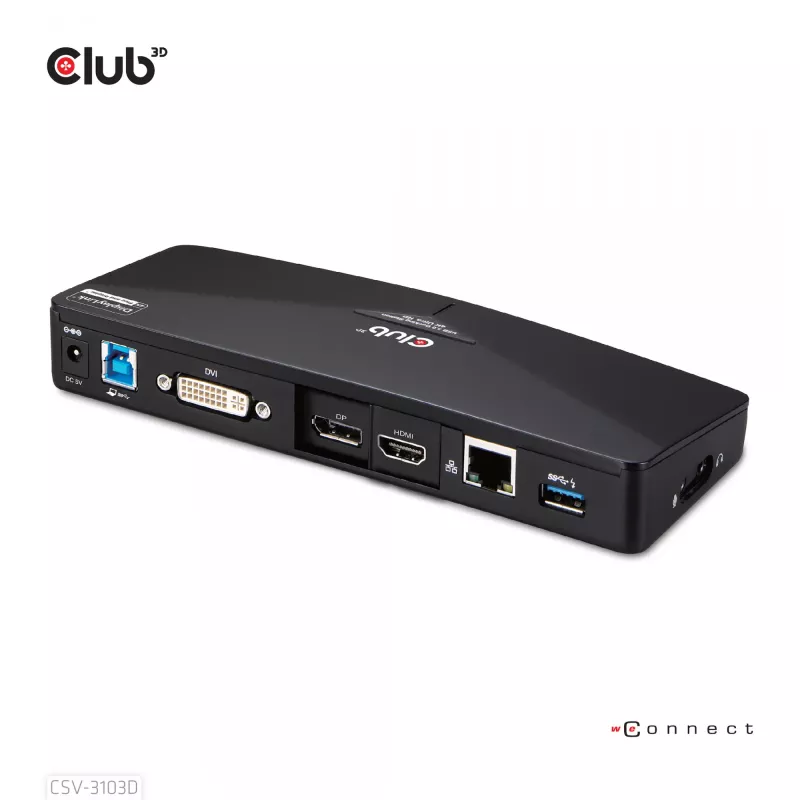

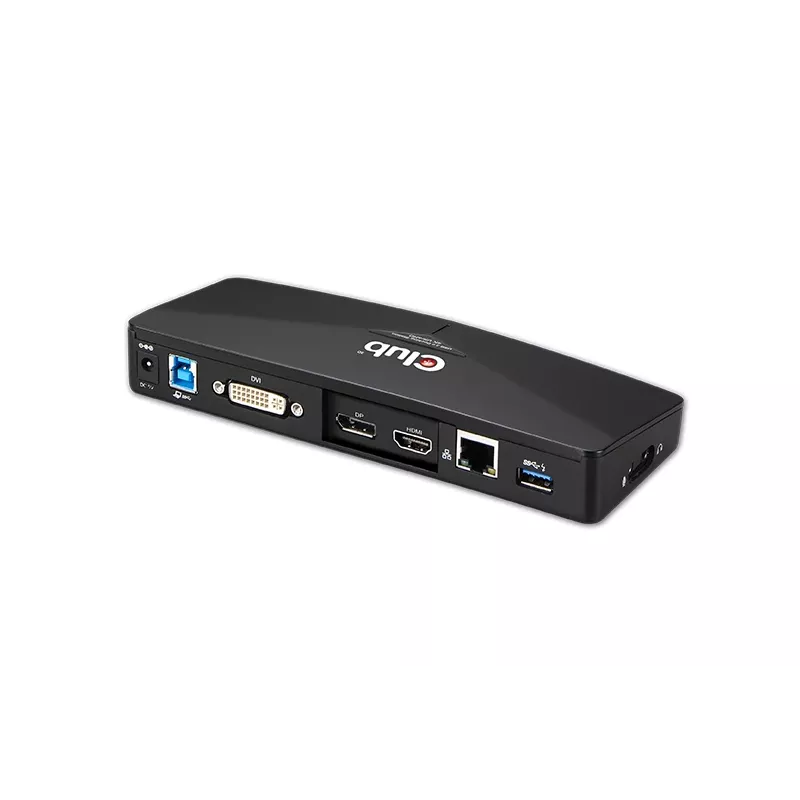

• Video outputs: 1 × HDMI 1.4a, 1 × DVI-I (supports DisplayPort-over-USB via DisplayLink)
• Maximum digital resolution: up to 3840 × 2160 (4K) at 30 Hz (single display)
• Dual-monitor support: Full HD (1920 × 1080) at 60 Hz for extended displays (dependent on host)
• Ethernet: 1 × RJ-45, 10/100/1000 Mbit/s (Gigabit LAN)

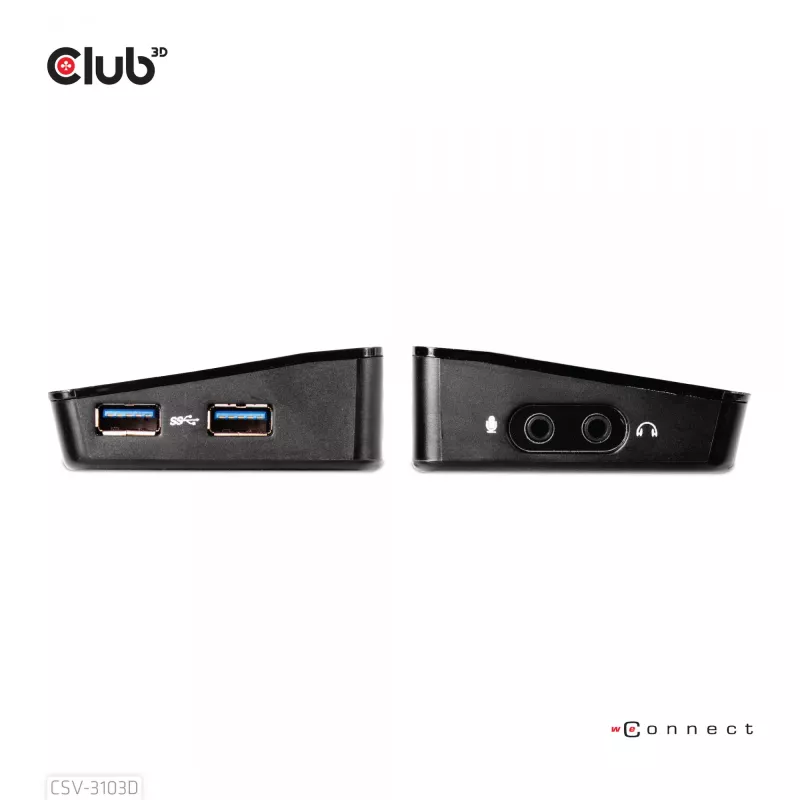

• Audio: Separate headset/speaker and microphone connections
• Power: AC powered

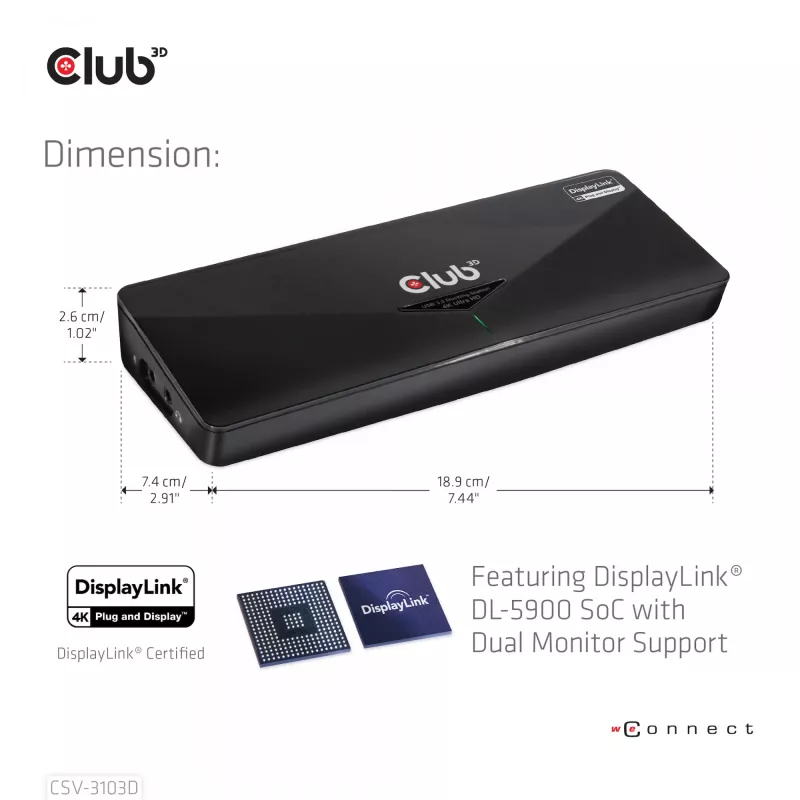

• Colour and weight: Black, approx. 0.2 kg

How to use

Connect the docking station to a Windows notebook or tablet using the supplied USB 3.0 Type-A cable. Attach displays to the HDMI and/or DVI outputs and connect network, audio devices, and USB peripherals to the appropriate ports. Plug in the AC adapter to power the unit. Install DisplayLink drivers if required by your operating system to enable video and extended desktop features. Functionality and supported resolutions may vary depending on the host device and installed drivers.

Recommendations

For optimal performance, use a USB 3.0 (or higher) Type-A port on the host device, keep DisplayLink drivers up to date, and connect high-resolution content to the HDMI port when using a single 4K display. Ensure the host OS is compatible with DisplayLink and that the power adapter is connected when using multiple high-power peripherals.
