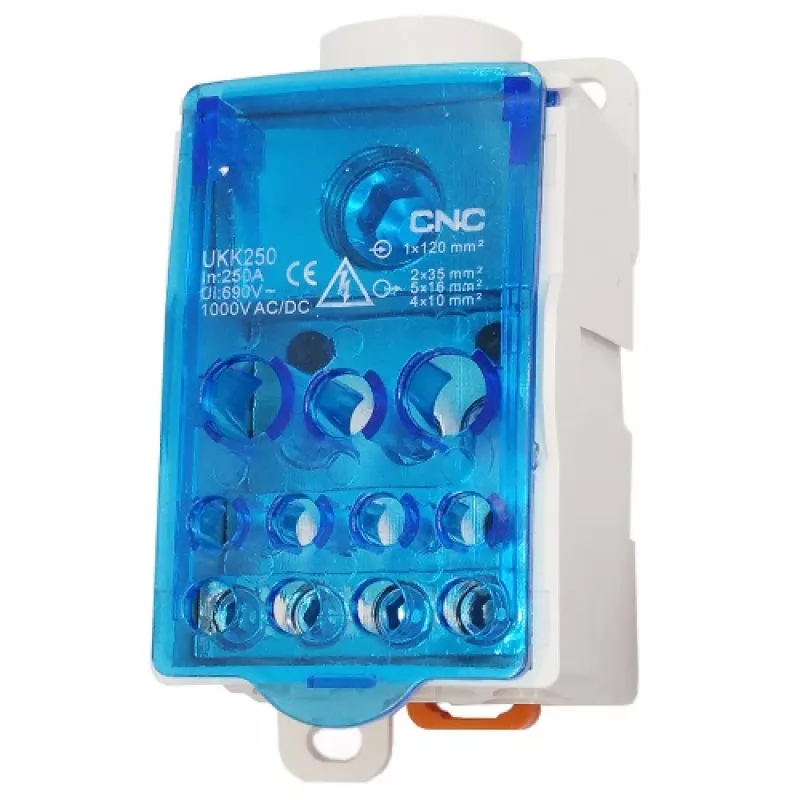

HiSmart NV821792 bloque de distribución 250 A

The HiSmart NV821792 distribution terminal is a 250 A electrical cable distribution terminal designed for cable connections or branches, enabling tidy power distribution systems. It is suitable for use in electrical panels and is mounted on a DIN rail. The transparent cover allows inspection of cable connections.

Key features

• Electrical cable distribution terminal for connections or branches
• Suitable for use in electrical panels
• DIN rail mounting
• Transparent cover for cable connection inspection
• Housing made of flame-retardant PA nylon, resistant to high temperatures and with strong insulating properties
• Brass-plated terminals: sturdy, long-lasting, corrosion-resistant, with good conductivity
• Safety class: V0 UL94 (flame-retardant)

Specifications

• Brand: CNC
• MPN: NV821792
• Nominal current: 250 A
• Voltage: AC/DC 690-1000 V AIEC
• Connectable cable cross-sectional area: 1x (35-120 mm²) / 2x (6-35 mm²) / 5x (2.5-16 mm²) / 4x (2.5-10 mm²)
• Installation: on DIN rail
• Terminals: brass-plated
• Housing material: PA nylon
• Safety class: V0 UL94 (flame-retardant)
• Dimensions: 49 x 95 x 49 mm
