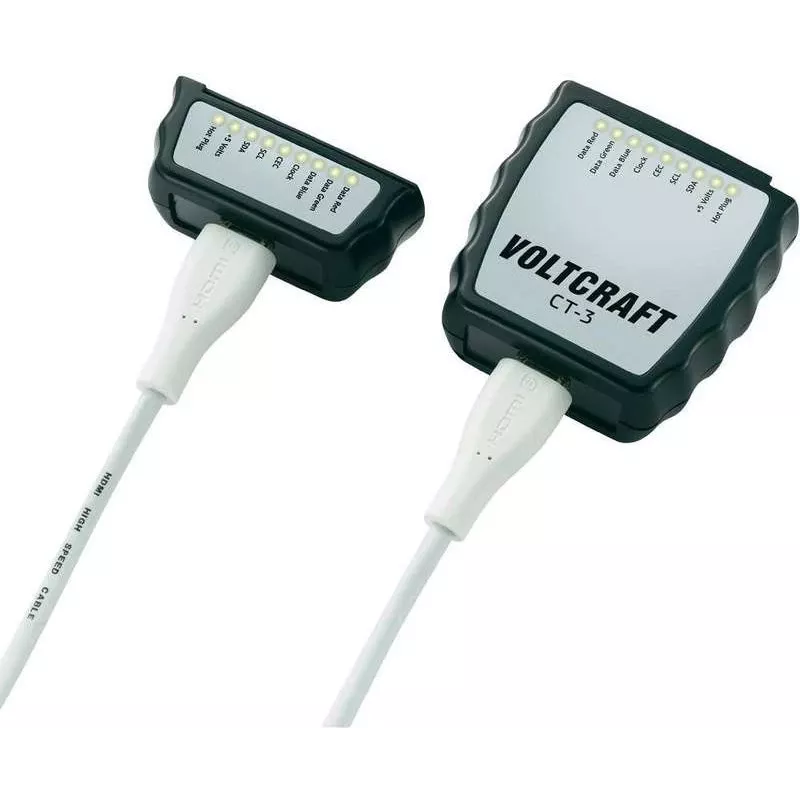

Comprobador de cables Voltcraft CT-3 para HDMI Tipo A (compatibilidad HDMI 1.0 / 1.1)

The Voltcraft CT-3 for HDMI Type A is a compact cable tester that checks wiring continuity and pin assignments for HDMI Type A leads compatible with HDMI 1.0 and 1.1 standards. It is designed to help technicians, installers and AV professionals verify signal wiring, detect open circuits, short circuits and miswired pins in HDMI cables. The unit’s portable size makes it convenient for on-site troubleshooting, setup verification and routine maintenance of display and AV connections.

Advantages

The tester provides clear pass/fail feedback on each contact within the HDMI Type A connector and quickly identifies common wiring faults without requiring complex setup. Its compatibility with older HDMI 1.0/1.1 wiring layouts ensures correct verification where legacy equipment is used. The compact housing and straightforward operation reduce testing time and allow technicians to carry the device easily between jobs.

Suitable for

• AV installers and integrators verifying HDMI cable wiring during installation
• Service technicians troubleshooting HDMI signal issues between sources and displays
• Maintenance teams performing routine checks on HDMI cabling in conference rooms or home theaters
• Retailers and resellers checking cable integrity before sale

Key specifications

• Connector type tested: HDMI Type A
• HDMI compatibility: HDMI 1.0 and HDMI 1.1 wiring layouts
• Functions: continuity check and pin assignment verification
• Fault detection: open circuit, short circuit and miswiring indication
• Form factor: compact, handheld design for portability

How to use

Connect one end of the HDMI cable to the main unit and the other end to the remote terminator. Power the tester according to the manufacturer’s instructions and initiate the test using the device’s control. Observe the indicators to determine continuity and correct pin mapping; the device will reveal open, shorted or miswired pins. Interpret the indicator pattern against the tester’s reference guide to locate the specific fault and decide whether repair or replacement of the cable is required.

Recommendations

Use the Voltcraft CT-3 in a dry environment and avoid exposing the contacts to dust or moisture. For reliable results, ensure both connector ends are fully seated and free of debris before testing. When working with legacy HDMI equipment, verify that the cable wiring corresponds to HDMI 1.0/1.1 conventions. Store the tester in protective storage when not in use to prevent mechanical damage.
