Comprobador de red ShiverPeaks 75617 — comprobador de cables y puertos RJ45 para máxima conectividad

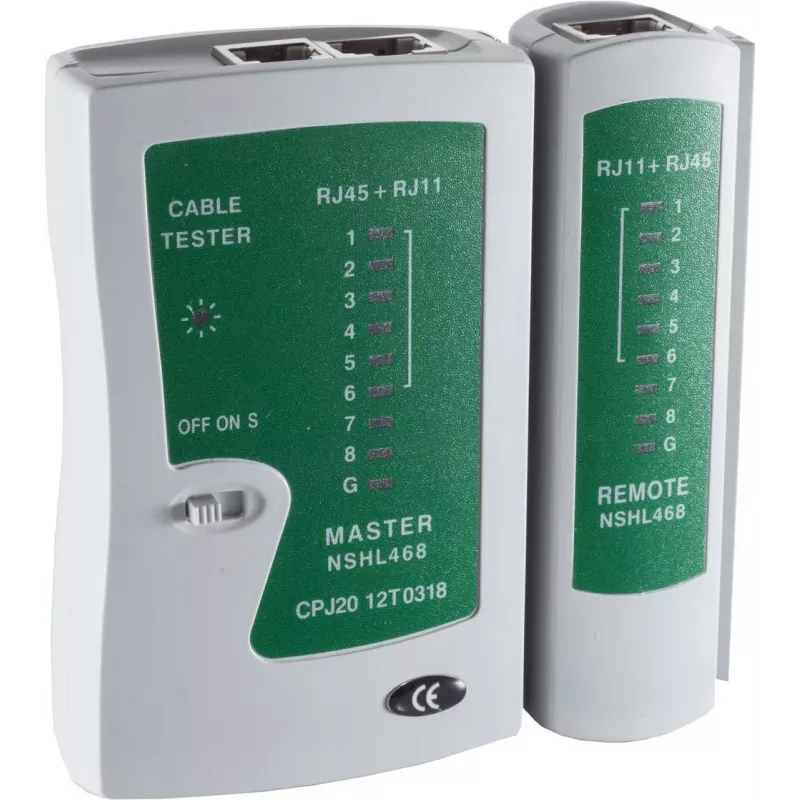

The ShiverPeaks 75617 handheld network tester is designed to verify connectivity and basic wiring integrity of RJ45 cables and Ethernet ports. It performs continuity checks, pinout verification and helps identify common wiring faults such as open circuits, shorts and split pairs. The compact form factor and straightforward operation make the tester suitable for field use by installers and IT technicians performing on-site cable validation, troubleshooting and maintenance of local area network links.

Advantages

This RJ45 cable and port tester offers fast verification of Ethernet connections without requiring a laptop or specialized software. Its portable design enables quick diagnostics at patch panels, wall outlets and network devices. The unit provides clear indications of continuity and pinout issues to reduce time spent tracing faults and to support systematic maintenance of structured cabling.

Suitable for

• Field testing of Ethernet patch cables during installation and commissioning
• Verifying wall jacks and switch ports for connectivity
• Routine network maintenance and fault isolation in LAN environments
• On-site troubleshooting by IT technicians and network installers

Key specifications

• Cable interface: RJ45 (8P8C) connectors
• Functions: continuity check, pinout verification, detection of open circuits, shorts and split pairs
• Power: battery-powered for portable operation
• Form factor: handheld, ruggedized for field use
• Display/indication: visual LED indicators for wiring status and faults

How to use

Connect one end of the Ethernet cable to the tester’s RJ45 port and the other end to the remote unit or port under test as required. Power the device using the installed batteries and initiate the test following the device’s control interface. Observe the visual indicators to determine continuity and correct pinout, and interpret any fault indication (open, short, split pair) to guide further troubleshooting. For port testing, connect the main unit to the switch or wall jack and use the remote or loopback function as applicable.

Recommendations

Use the tester as part of a structured verification workflow: test cables after termination, re-check connections after patching changes, and document identified faults. Replace batteries before extended field use and store the tester in a dry, dust-free environment to preserve functionality.
