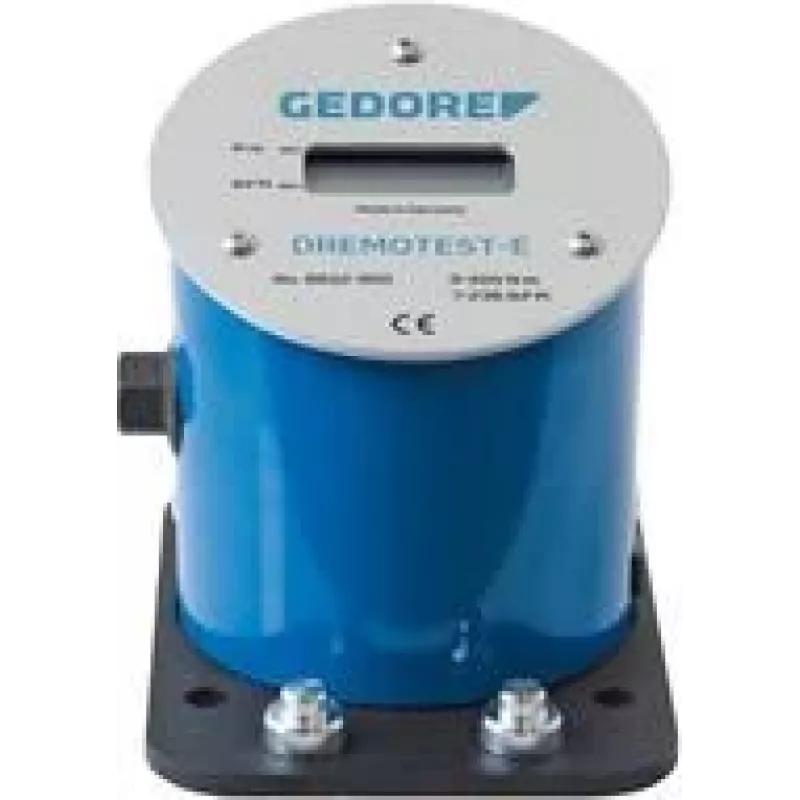

Comprobador digital de par Gedore 8612-050 5-50 N·m con RS232 y certificado de calibración 1947699

In a busy workshop or quality-control lab, technicians need to verify that torque wrenches and screwdrivers deliver exactly the specified tightening force. The Gedore 8612-050 digital torque tester provides a reliable way to check and adjust these tools across a range of 5 to 50 N·m, ensuring consistent assembly quality and preventing over- or under-tightening.

Key specifications

• Measurement range: 5 - 50 N·m
• Accuracy: ±1% of indicated value
• Units: N·m, lbf·ft, lbf·in
• Operating modes: Track (current value), Peak (peak value)
• Display: Large digital LCD
• Drive size: 1/2 inch square drive
• Power supply: Mains adapter (230V) or 9V battery
• Interface: RS232 for PC connection
• Memory capacity: 999 measurements
• Housing material: Robust aluminum
• Measurement direction: Clockwise and counter-clockwise
• Overload protection: Yes
• Calibration certificate: Included (traceable to national standards)
• Operating temperature: +5°C to +40°C
• Storage temperature: -20°C to +50°C
• Software compatibility: PC software for documentation (available)

Why choose it

This tester combines high accuracy with user-friendly features like peak hold and data logging. The RS232 interface allows connection to a PC for detailed analysis and record-keeping, while the included calibration certificate gives confidence in traceable measurements.

Ideal use cases

• Calibration and adjustment of torque wrenches in industrial maintenance
• Quality assurance in production lines where torque control is critical
• Testing torque screwdrivers in electronics or precision assembly
• Documentation of torque tool performance for audits

Good to know

The robust aluminum housing protects the internal electronics in demanding workshop environments. The device can be powered either by the included mains adapter or a standard 9V battery, offering flexibility for bench or field use.
