Conceptronic EMRICK tarjeta PCIe 2 puertos USB 3.2 Gen 2 Type-C

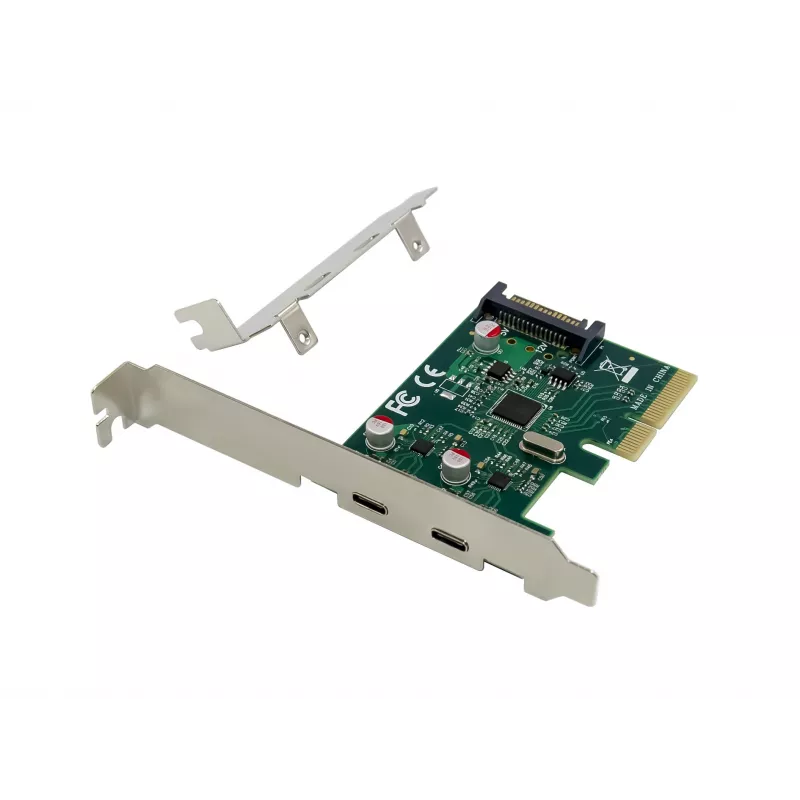

The Conceptronic EMRICK 2-Port USB 3.2 Gen 2 Type-C PCIe Card adds two SuperSpeed USB 3.2 Gen 2 Type-C ports to a desktop PC via a PCIe host interface. It supports a maximum data transfer rate of 10 Gbit/s and is designed for internal installation in standard PCI Express slots. The card is compact (58 × 80 × 20 mm), comes in green, and is compatible with common Windows operating systems including Windows 7 and Windows 10.

Advantages

This PCIe card provides two additional USB 3.2 Gen 2 Type-C ports with up to 10 Gbit/s transfer speeds, suitable for fast file copying and connecting modern USB-C devices. Its internal PCIe host interface ensures direct, low-latency connection to the motherboard. The compact form factor fits standard desktop PC slots and the package includes drivers for installation.

Suitable for

• Adding USB-C ports to a desktop PC
• High-speed data transfer for external SSDs and backups
• Connecting USB-C peripherals such as hubs, docks, and storage

Key specifications

• Model: Conceptronic EMRICK (MPN: EMRICK07G)
• Interface: PCIe host interface (internal installation)
• Output: 2 × USB 3.2 Gen 2 Type-C ports (10 Gbit/s)
• Compatibility: Windows 10, Windows 7 (driver required)
• Dimensions: 58 mm (W) × 80 mm (D) × 20 mm (H)
• Weight: 0.032 kg
• Colour: Green
• EAN: 4015867227985

How to use

Power off and unplug the desktop PC, open the case, and locate an available PCI Express slot. Insert the Conceptronic EMRICK PCIe card firmly into the slot and secure it with the slot bracket screw. Close the case, reconnect power, and start the PC. Install the included drivers for your Windows version to enable the USB 3.2 Gen 2 Type-C ports, then connect USB-C devices to the new ports for immediate use.

Recommendations

Use high-quality USB-C cables and ensure the host PCIe slot meets your motherboard specifications. For maximum 10 Gbit/s performance, connect devices and drives that support USB 3.2 Gen 2. Install the latest drivers and Windows updates for stable operation.
