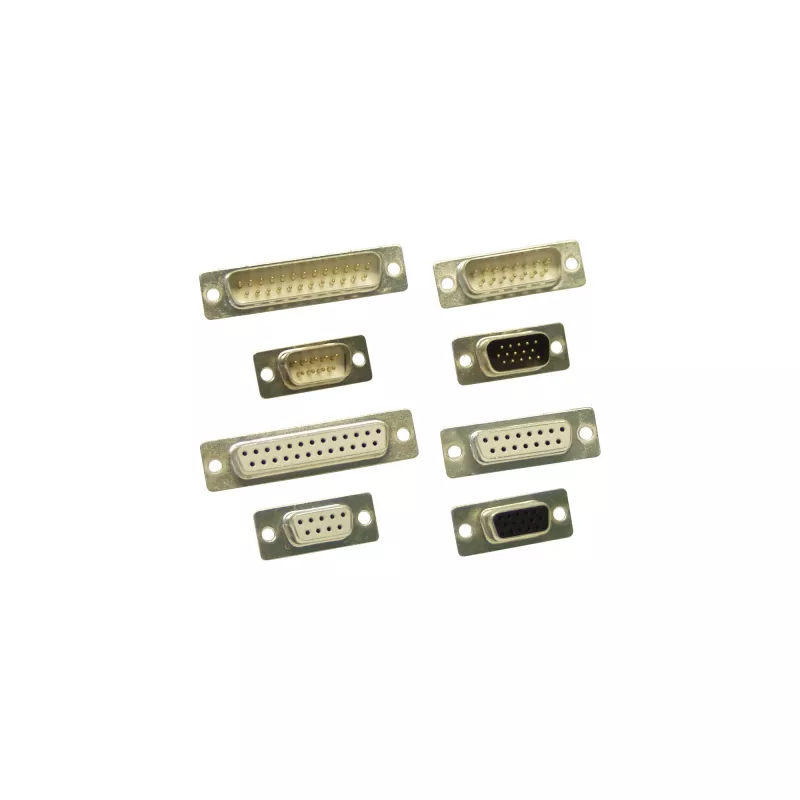

Conector a soldar serie InLine DB9 hembra 42969

The InLine Serial DB9 Female Soldering Plug 42969 is a DB9F connector intended for serial communication connections. It is designed to be soldered to a printed circuit board or to the terminals of a cable, providing a compact, durable interface for devices that use DB9 serial ports. The connector is finished in silver colour and is suitable for integration into equipment or for repair and DIY electronics work.

Advantages

The soldering-style DB9 female plug offers a secure electrical and mechanical connection when mounted on a PCB or wired to a cable. Its standard DB9F form factor ensures compatibility with common serial devices and adapters. The metal/silver finish provides corrosion resistance and a consistent appearance in industrial and consumer applications.

Suitable for

• Mounting a DB9 female connector on a PCB
• Soldering to cable terminals for serial connections
• Repairing or replacing DB9 serial ports on equipment
• Use in industrial integration and DIY electronics projects

Key specifications

• Connector type: DB9 female (DB9F)
• Mounting method: soldering to PCB and/or cable terminals
• Colour: Silver
• Brand: InLine
• Manufacturer part number (MPN): 42969
• EAN: 4043718000661

How to use

Prepare the PCB pads or cable conductors for soldering by stripping and tinning as appropriate. Position the DB9 female soldering plug so its solder pins align with the PCB pads or cable terminals, then solder each pin to form reliable joints. Verify mechanical stability and correct pin connections before powering the device or connecting other equipment.

Recommendations

Use appropriate soldering equipment and safety precautions. Verify pin numbering and wiring against the target device’s serial pinout to avoid miswiring. For industrial installations, consider strain relief and shielding where needed to maintain connection reliability.
