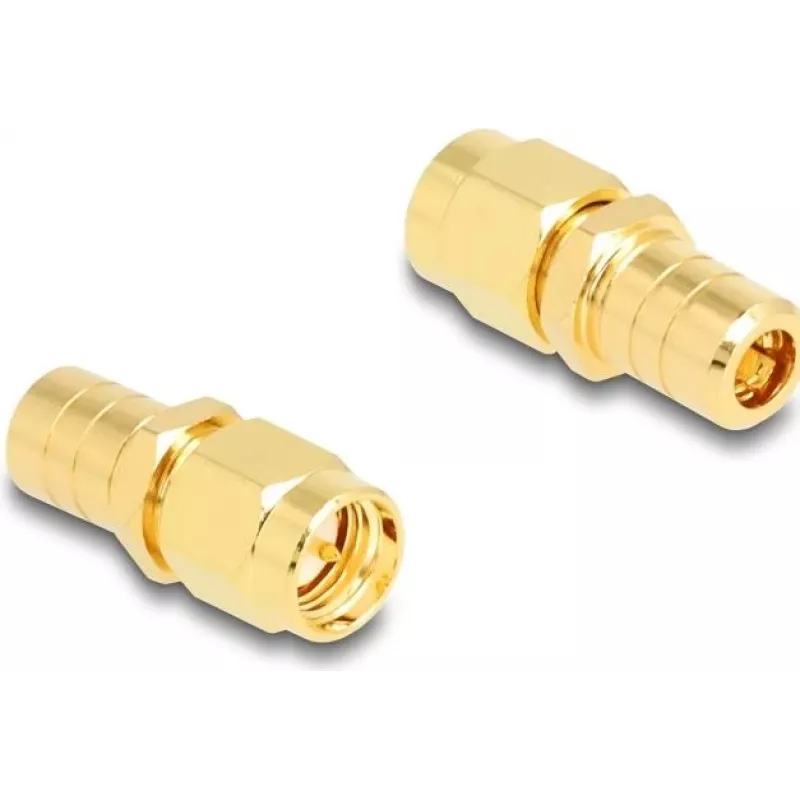

Conector coaxial DeLOCK 90205

The DeLOCK 90205 coaxial connector is designed to provide reliable signal transmission for audio, video and RF applications. Constructed for durability, the connector supports stable connections between coaxial cables and equipment, reducing signal degradation and ensuring consistent performance in home entertainment systems, surveillance installations, and professional AV setups.

Advantages

This coaxial connector offers a robust mechanical design that resists wear from repeated mating cycles and maintains good contact integrity. Its construction minimizes insertion loss and preserves signal quality across a range of frequencies common to audio and video systems. The compact form factor allows for easy integration into tight spaces and standard cabling installations.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket, dielectric and inner conductor to match the connector's assembly requirements. Insert the prepared cable into the connector and secure it according to the connector's attachment method, ensuring the central conductor and shield make firm contact. After assembly, check the connection for mechanical stability and verify signal continuity with appropriate test equipment before final installation.

Recommendations

To maintain optimal signal quality, use the connector with properly prepared cables of compatible impedance and avoid excessive bending or mechanical stress near the connection point. Periodically inspect the connector for corrosion or loose contacts, especially in environments exposed to moisture or dust.
