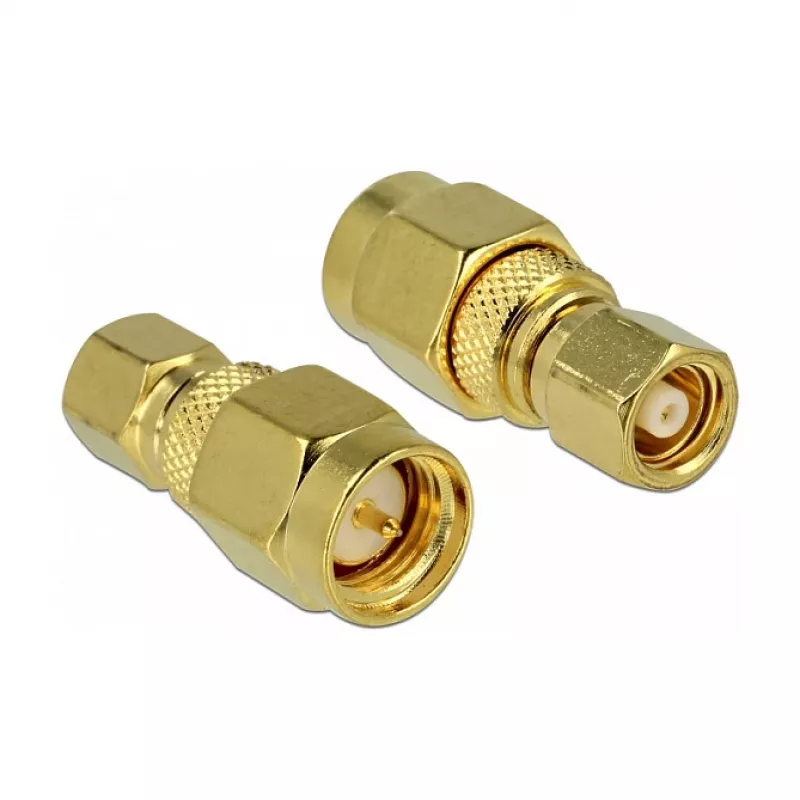

Conector coaxial SMA DeLOCK 65856

The DeLOCK 65856 SMA coaxial connector is a single-piece adapter designed for radio frequency connections. It has a characteristic impedance of 50 Ω and a depth of 24.7 mm, providing a compact interface for reliable signal transmission in RF and related applications.

Advantages

The connector uses the SMA type interface compatible with standard SMA equipment, offers a defined 50 Ω impedance for controlled signal transfer and has a compact 24.7 mm depth for installations with limited space. Supplied as one piece, it is suitable for individual replacement or integration into small setups.

Suitable for

• RF test setups and measurement equipment
• Antenna connections and small RF modules
• Laboratory and prototype assemblies

Key specifications

• Type: SMA coaxial connector
• Brand: DELOCK
• Model / MPN: 65856
• EAN: 4043619658565
• Impedance: 50 Ω
• Depth: 24.7 mm
• Quantity: 1 piece

How to use

Align the SMA connector with the mating SMA socket and carefully screw it in until hand-tight. Avoid over-tightening to prevent damage to the threads or inner contact. Ensure connectors are clean and free of debris before making the connection to maintain optimal signal quality.

Recommendations

For best performance, use with compatible 50 Ω SMA components and avoid frequent mechanical stress; store the connector in a dry, dust-free environment when not in use.
