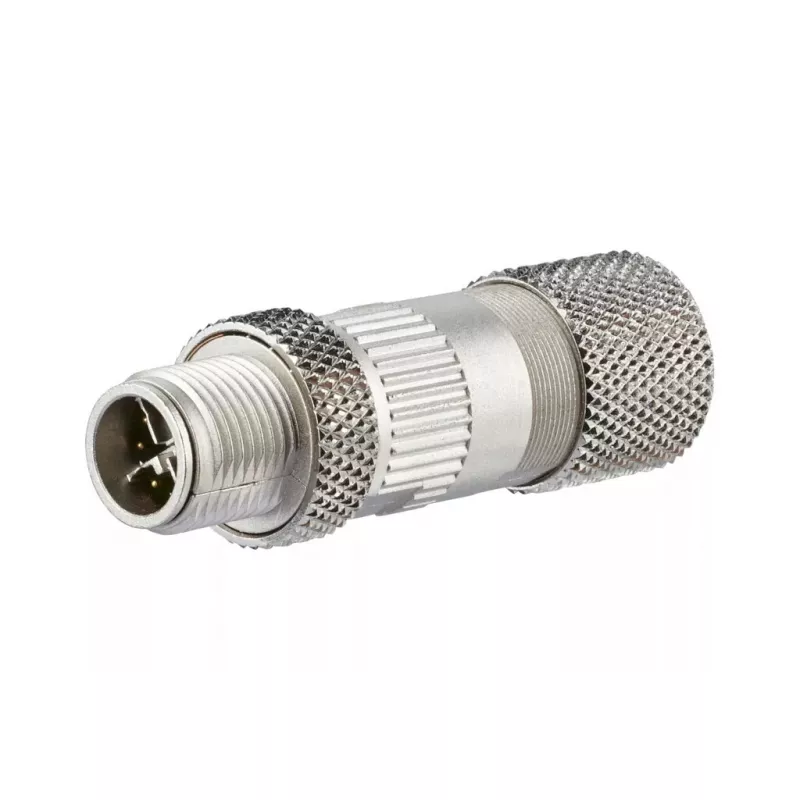

Conector de cables METZ CONNECT MNF881A315-0001

Conector de cables METZ CONNECT MNF881A315-0001
Conector de cables METZ CONNECT MNF881A315-0001
27,85 €
PDF
PDF
Stock 12 Código 2569084 Modelo MNF881A315-0001 Garantía 3 años

Envíos y devoluciones

Entrega estimada lunes, 14 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

The METZ CONNECT MNF881A315-0001 is a metallic M12 male wire connector designed for reliable electrical and signal connections in industrial environments. The compact metallic housing provides mechanical robustness while the halogen-free materials ensure reduced risk in case of fire. Packaged in quantities of ten, this connector is suitable for projects requiring multiple identical terminations and straightforward installation.

Advantages

The metallic construction offers enhanced durability and shielding compared with non-metallic alternatives, supporting stable signal transmission in electrically noisy environments. Compliance with RoHS and cUL standards confirms adherence to established safety and material requirements. The connector's compact dimensions make it suitable for tight installations where space is limited, and the pack quantity simplifies procurement for larger jobs.

Suitable for

  • Industrial sensor and actuator connections
  • Automation equipment and control cabinets
  • Fieldbus and industrial Ethernet cabling
  • Machine retrofits and maintenance tasks

Key specifications

  • Connector type: M12 male, metallic housing
  • Material properties: halogen-free construction
  • Safety and compliance: RoHS and cUL compliant
  • Dimensions: approximately 16.8 mm (width) × 16.8 mm (height) × 52 mm (depth)
  • Pack size: 10 pieces per pack

How to use

Prepare the cable end according to the wire gauge and insulation stripping requirements for M12 terminations. Insert conductors into the mating terminals following the connector's pin assignment and tighten the coupling nut or fastening mechanism to secure the connection. Ensure that the mating equipment uses the corresponding M12 pin configuration and that any sealing or strain-relief measures are applied if the installation requires environmental protection. Verify continuity and correct wiring before powering the system.

Recommendations

For durable performance, use this metallic M12 connector in conjunction with compatible mating connectors and maintain recommended torque values on the coupling nut. Apply appropriate cable glands or sealing compounds when installing in wet or dusty environments, and follow local wiring and safety standards during installation.

Aspectos destacados
  • Industrial sensor and actuator connections
  • Automation equipment and control cabinets
  • Fieldbus and industrial Ethernet cabling
  • Machine retrofits and maintenance tasks
  • Connector type: M12 male, metallic housing
  • Material properties: halogen-free construction
  • Safety and compliance: RoHS and cUL compliant
  • Dimensions: approximately 16.8 mm (width) × 16.8 mm (height) × 52 mm (depth)
  • Pack size: 10 pieces per pack

Especificaciones

Especificaciones
Altura
16.8 mm
Ancho
16.8 mm
Apantallamiento del conector
Sí
Calibre AWG del cable
22
Cantidad por paquete
10 pc(s)
Certificados de conformidad
cUL, RoHS
Código de protección internacional (IP)
IP67
Color del producto
Metálico
Conectores
M12
Corriente
0.5 A
Estándar del cable
Cat6a
Formato del conector
Recto
Fuerza de extracción
30 N
Fuerza de inserción
30 N
Género del conector
Macho
Material
Zinc, níquel
Material del apantallamiento del conector
Aleación de cobre
No contiene
Halógena
Profundidad
52 mm
Recubrimiento de los contactos del conector
Níquel/oro
Resistencia de aislamiento
100 MΩ
Resistencia de contacto
5 mΩ
Rigidez dieléctrica
500 V
Tamaño del núcleo
1.6 mm²
Temperatura de almacenamiento (T-T)
-40 - 85
Temperatura de funcionamiento (T-T)
-40 - 85
Tensión
50/60
Tipo de embalaje
Caja
Vida útil (ciclos)
100
