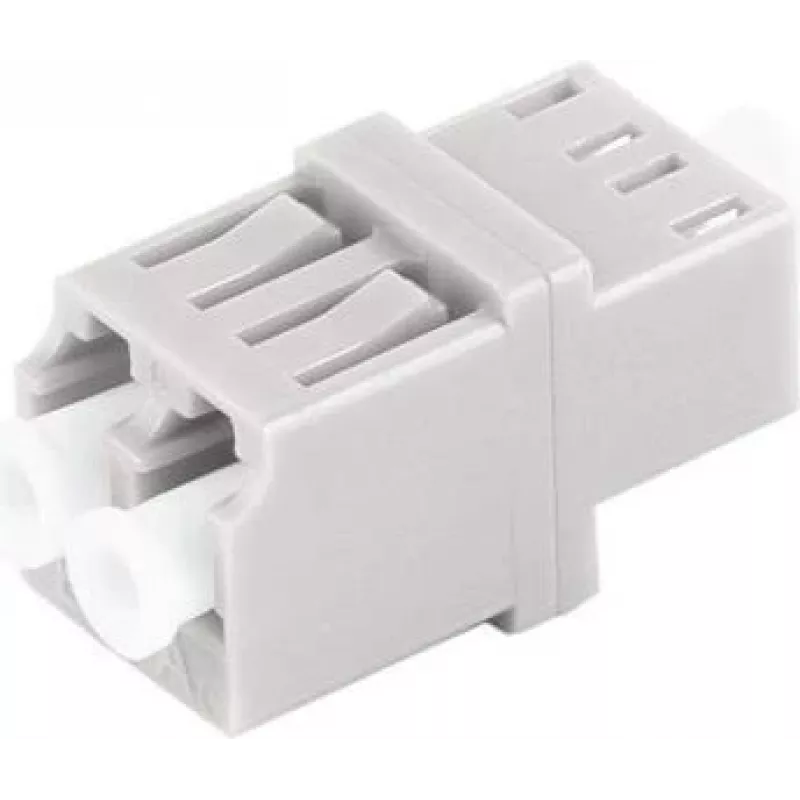

Conector de fibra óptica LC/LC hembra/hembra ShiverPeaks BS07-60024

The ShiverPeaks BS07-60024 LC/LC Female/Female fibre optic connector is a bulkhead-style adapter created to join two LC-terminated fibre cables in patch panels, wall plates or rack-mounted enclosures. This single-unit connector provides a stable optical path between LC plugs while maintaining alignment and minimizing insertion loss. It is intended for use where space-efficient LC terminations and straightforward installation are required in data centres, telecommunications cabinets and network distribution points.

Advantages

The bulkhead LC/LC female/female design enables easy panel or bracket mounting and provides a secure mechanical interface for LC duplex connectors. Its precision-aligned ferrules reduce return loss and insertion loss, supporting consistent signal quality. Sold as an individual unit, the adapter is compact and suitable for high-density installations where reliable, repeatable connections are needed.

Suitable for

• Joining two LC-terminated fibre optic patch cables
• Panel or bulkhead mounting in racks, enclosures or wall plates
• Fiber patching in data centres and telecommunication rooms
• Lab testing and temporary network extensions

Key specifications

• Connector type: LC to LC, female/female
• Mounting style: bulkhead / panel adapter
• Optical interface: duplex LC
• Compatibility: singlemode and multimode LC plugs depending on fibre type used
• Construction: compact, low-profile adapter suitable for high-density panels

How to use

Install the bulkhead adapter into a compatible cut-out or panel hole and secure it according to the panel or chassis mounting method. Align and insert LC plugs from both sides until each connector latches into place. Verify the physical connection by checking the cable routing and then test the optical link with appropriate loss/test equipment to confirm acceptable insertion loss and continuity before putting the link into service.

Recommendations

Handle fibre connectors and adapters carefully to avoid contaminating the ferrule endfaces; use proper cleaning tools and dust caps when connectors are disconnected. For consistent performance, inspect and clean connector endfaces before mating and perform optical loss testing after installation.
