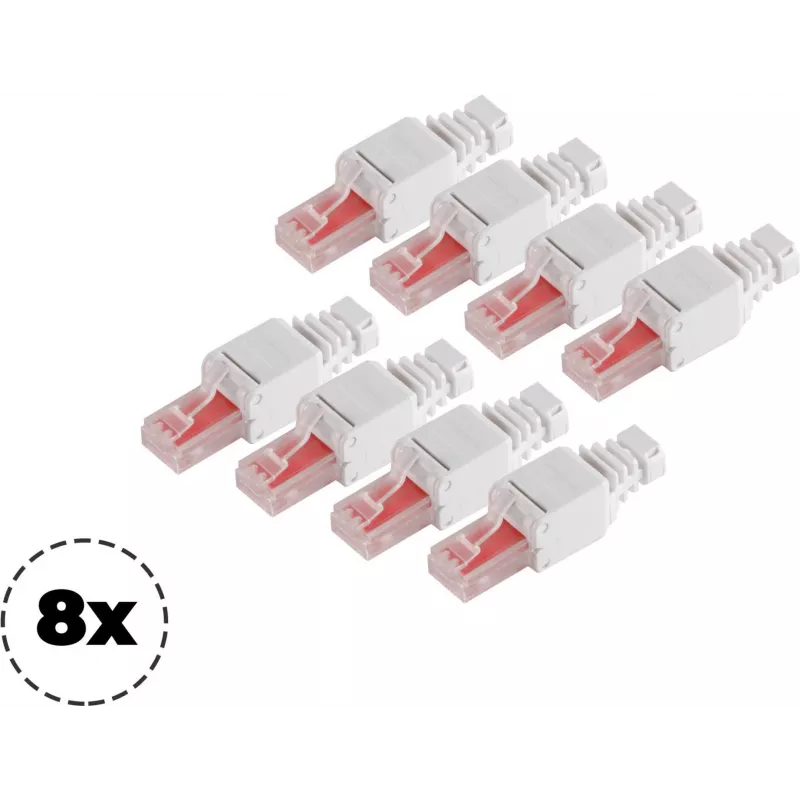

Conector de red ShiverPeaks 75011-8 Cat.6 conector RJ45 sin herramientas, 8P8C

The ShiverPeaks 75011-8 Cat.6 tool-less RJ45 connector is a compact solution for fast 8P8C network terminations on Cat.6 cables. Designed for quick, solder-free and screw-free assembly, this unshielded plug supports straightforward field terminations and small-scale installations. The connector includes an integrated strain relief to protect the cable jacket and conductors during and after assembly.

Advantages

This tool-less Cat.6 RJ45 connector simplifies cable termination with no special tools required, reducing time on site and enabling reliable contacts for data transmission. Its design accommodates typical Cat.6 cable diameters and conductor layouts, while the built-in strain relief improves mechanical stability. The compact body and clear assembly process make it suitable for quick repairs, patch cable manufacturing and extension work without crimping equipment.

Suitable for

• On-site network cable repairs and replacements
• Creating Cat.6 patch cables and short links
• Small office or home network installations
• Temporary or rapid deployments requiring quick RJ45 terminations

Key specifications

• Connector type: 8P8C unshielded RJ45 tool-less plug
• Cable category compatibility: Category 6 (Cat.6)
• Assembly method: tool-less, solder-free, screw-free termination
• Mechanical features: integrated strain relief / bend protection
• Typical use: patch cords, on-site terminations, repairs

How to use

Strip the outer jacket of the Cat.6 cable to the length recommended by the connector manufacturer, arrange the individual conductors according to the target wiring standard (T568A or T568B), insert the conductors fully into the connector until they reach the contact positions, then secure the connector body to engage the contacts and strain relief. Verify each conductor is seated correctly and test the terminated cable with an appropriate network tester to confirm continuity and correct pair mapping.

Recommendations

Use the connector with Cat.6 stranded or solid cable types within the supported diameter range and avoid excessive cable twisting when seating conductors. After termination, perform a basic continuity and pair-split test; for critical installations consider additional certification with a Cat.6 tester to ensure performance requirements are met.
