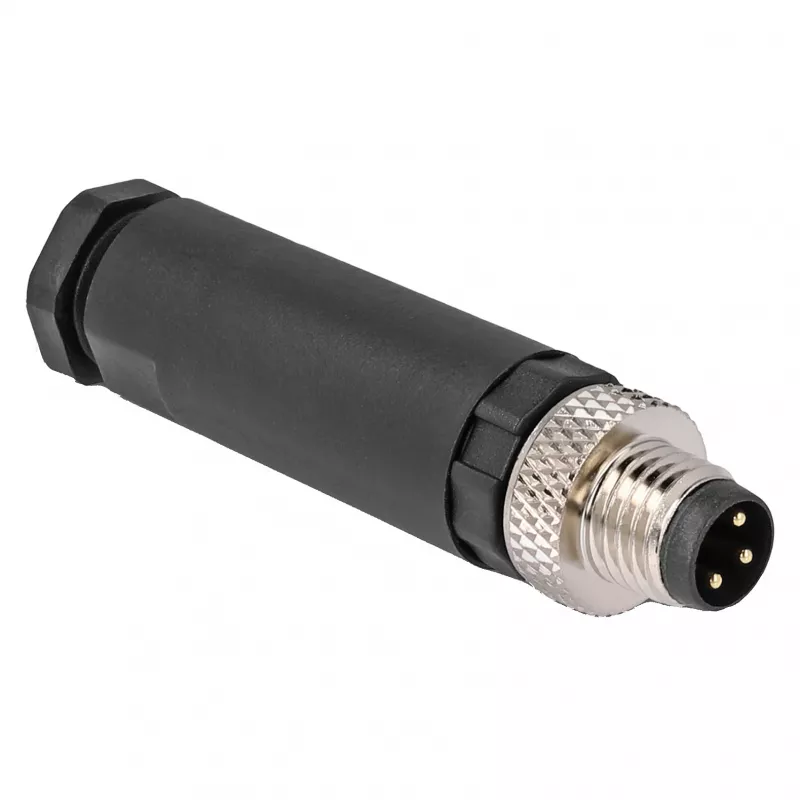

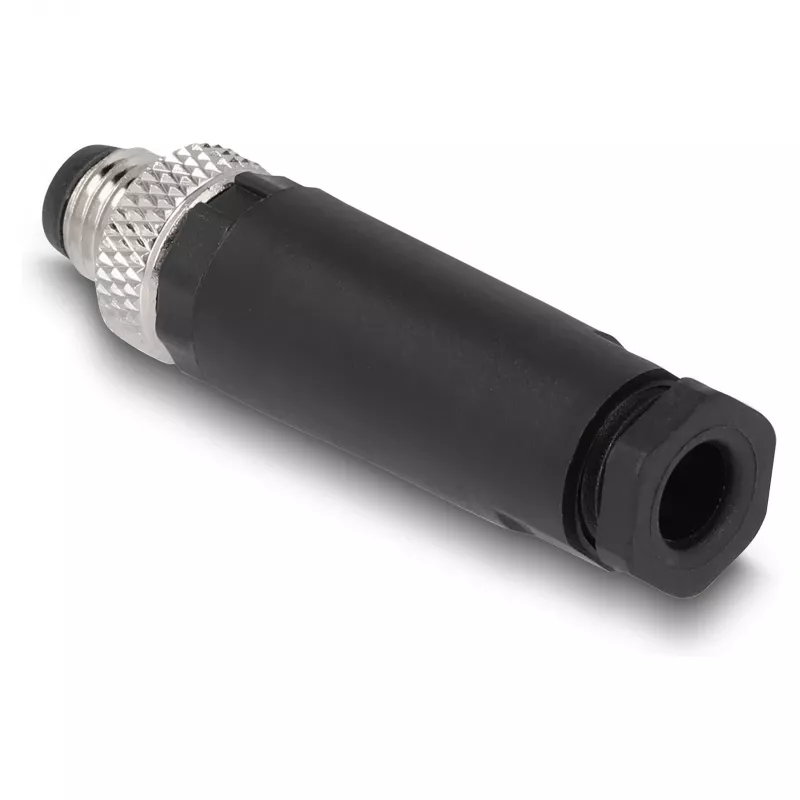

Conector DeLOCK M8 codificación A 3 polos conector macho conexión por tornillo negro

The DeLOCK M8 Connector A-coded 3 pin male screw connection in black provides a compact, CE-certified interface for connecting a cable to an M8 connector via screw terminals. Designed for industrial and automation environments, the connector combines a small footprint (outer diameter 1.21 cm, width 45 mm) with a secure mechanical screw termination for reliable signal and control connections.

Advantages

This M8 connector offers a robust screw terminal connection that prevents accidental wire disengagement and ensures stable contact in vibration-prone applications. Its A-coding and 3-pin male configuration make it compatible with standard M8 A-coded sockets. The compact dimensions and black housing allow easy installation in confined panels or control cabinets. CE certification indicates compliance with relevant safety and electromagnetic standards.

Suitable for

• Machine control and automation systems
• Sensors and actuator connections
• Industrial signal and control wiring
• Panel and cabinet installations with limited space

Key specifications

• Brand: DELOCK
• Model / MPN: 60529
• EAN: 4043619605293
• Connector type: M8 A-coded, 3 pin, male
• Termination: Screw terminal connection
• Color: Black
• Outer diameter: 1.21 cm
• Width: 45 mm
• Certification: CE

How to use

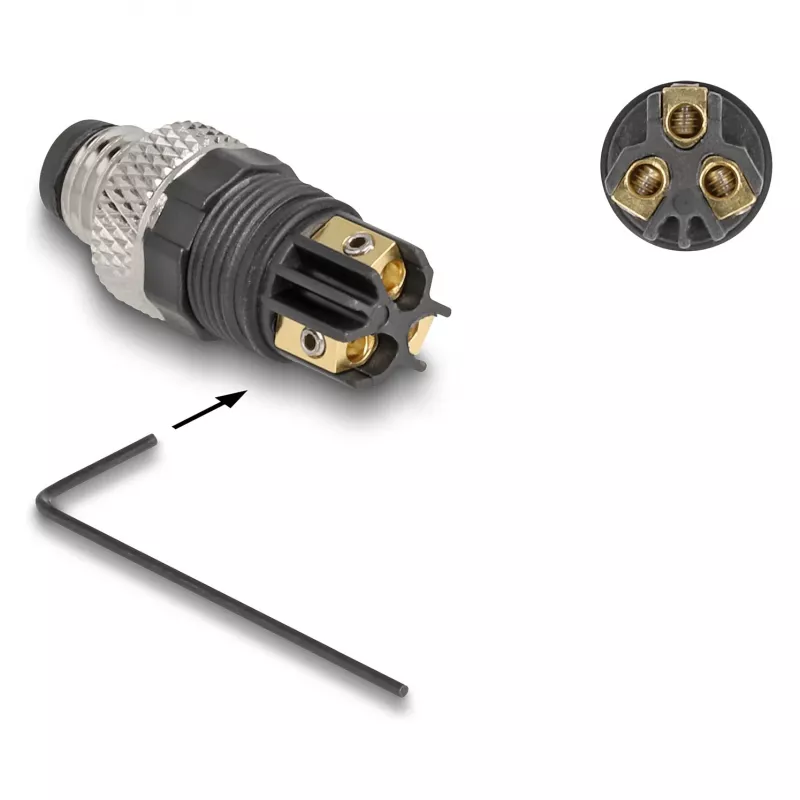

Strip the cable conductors to the appropriate length, insert each conductor into the corresponding screw terminal and tighten the screws to secure the connection. Align the male M8 connector with the mating A-coded socket and screw or lock into place according to the socket’s mounting method. Verify correct pin assignment and tighten firmly to ensure reliable contact before powering the system.

Recommendations

Use appropriate wire cross-section for the screw terminals, avoid over-tightening to prevent conductor damage, and follow device-specific wiring diagrams. Ensure connections are made with power off and verify mechanical fastening to withstand expected vibration levels.
