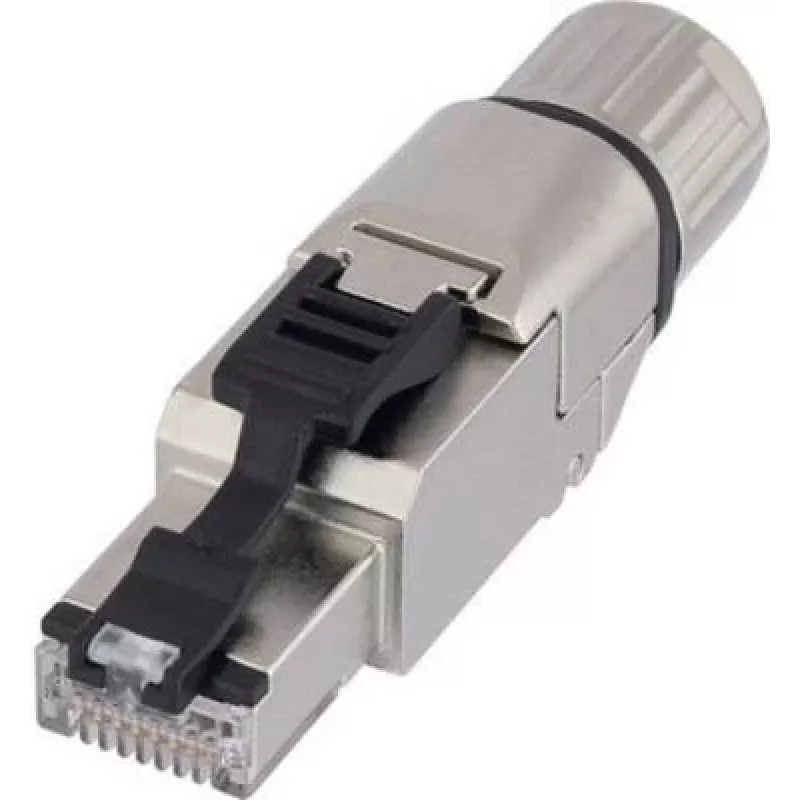

Conector Ethernet Lapp ED-IE-AXS-6A-B-20-FD-FC Recto, RJ45 6A en línea, apantallado, 21700655

Straight Ethernet connector Lapp ED-IE-AXS-6A-B-20-FD-FC (MPN 21700655) is an inline, shielded RJ45 6A connector designed for industrial and network cabling. The connector provides compact, robust termination for data cables and supports high-speed Ethernet up to Category 6A. It is intended for use where a space-saving, shielded inline connection is required in switches, patch panels and field installations.

Advantages

The connector is shielded to reduce electromagnetic interference and maintain signal integrity. Its straight inline design simplifies installation in confined spaces and allows secure termination of Ethernet cables without bulky adapters. Manufactured by Lapp, the component follows industry standards for reliable performance in commercial and industrial networks.

Suitable for

Key specifications

How to use

Prepare the Ethernet cable by stripping the outer jacket and arranging pairs according to the required wiring standard. Insert the prepared cable into the inline RJ45 connector until the conductors are correctly seated. Follow Lapp’s installation instructions or standard termination procedures for Cat6A shielded connectors to ensure proper shielding contact and reliable connection. Confirm continuity and signal integrity with appropriate test equipment after termination.

Recommendations

Use the connector with Cat6A or compatible shielded Ethernet cable and maintain proper grounding of the shield. Test each terminated link to verify performance and replace connectors that show mechanical damage or compromised shielding.
