Conector Harting Han C-Modul inserto de contactos 09 14 008 3001 — 8 contactos de señal + PE, crimp

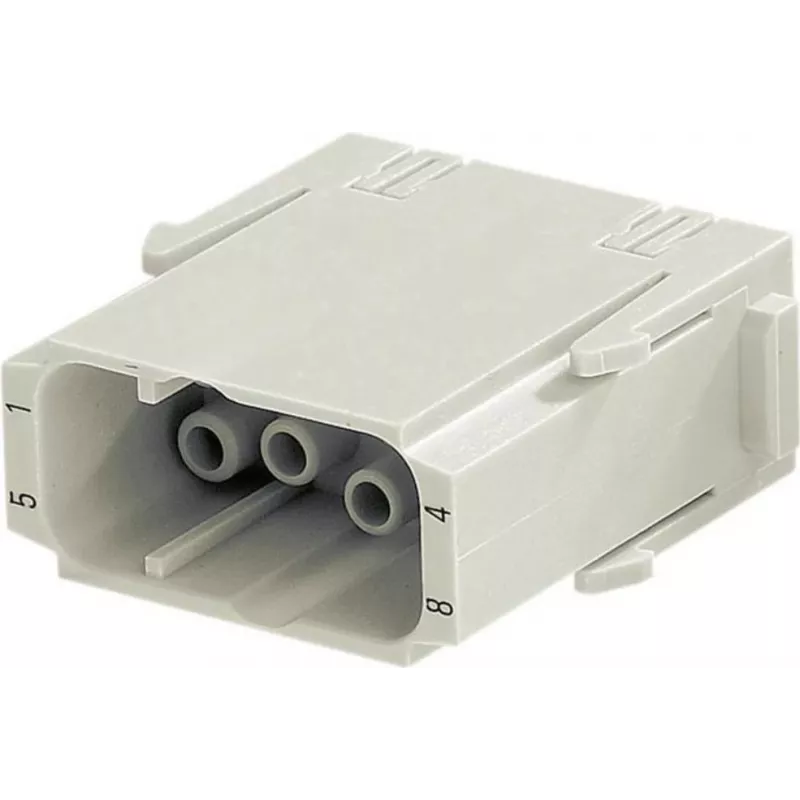

Contact insert designed for the Harting Han C-module, providing eight signal contacts plus a protective earth (PE) contact with crimp termination. This contact insert is intended for installation into Harting Han C housings to create a compact, serviceable connection module for industrial applications, control cabinets and machinery. The crimp-style contacts allow reliable electrical contact and straightforward replacement during maintenance without soldering.

Advantages

The insert combines multiple signal channels with a dedicated PE contact in a single compact unit, reducing wiring complexity and saving space within enclosures. Crimp termination ensures consistent contact quality and mechanical strain relief when used with appropriate crimp ferrules and tooling. The design is compatible with standard Han C housings, enabling quick assembly, modular upgrades and simplified spare-part management.

Suitable for

• Control cabinet wiring and distribution
• Industrial machinery signal connections
• Fieldbus and sensor/actuator wiring requiring multiple signal lines
• Applications that require a dedicated protective earth connection

Key specifications

• Number of signal contacts: 8
• Protective earth: 1 PE contact integrated
• Contact termination type: crimp contacts
• Intended housing type: Han C-module compatible insert
• Mounting: insert for module-style housing

How to use

Terminate conductor ends with the correct crimp contacts and recommended ferrules using a compatible crimping tool to ensure reliable mechanical and electrical connection. Insert the crimped contacts into the contact insert until they click or lock according to the manufacturer’s fitment instructions. Place the assembled insert into the corresponding Han C housing and secure according to the housing guidance. Verify continuity and correct PE connection before commissioning the system.

Recommendations

Use crimp contacts and tools recommended by the connector manufacturer, select conductor cross-sections that match the contact rating, and follow applicable wiring and earthing standards. Inspect contacts periodically for signs of corrosion or mechanical wear and replace the insert if contact resistance increases or locking features are damaged.
