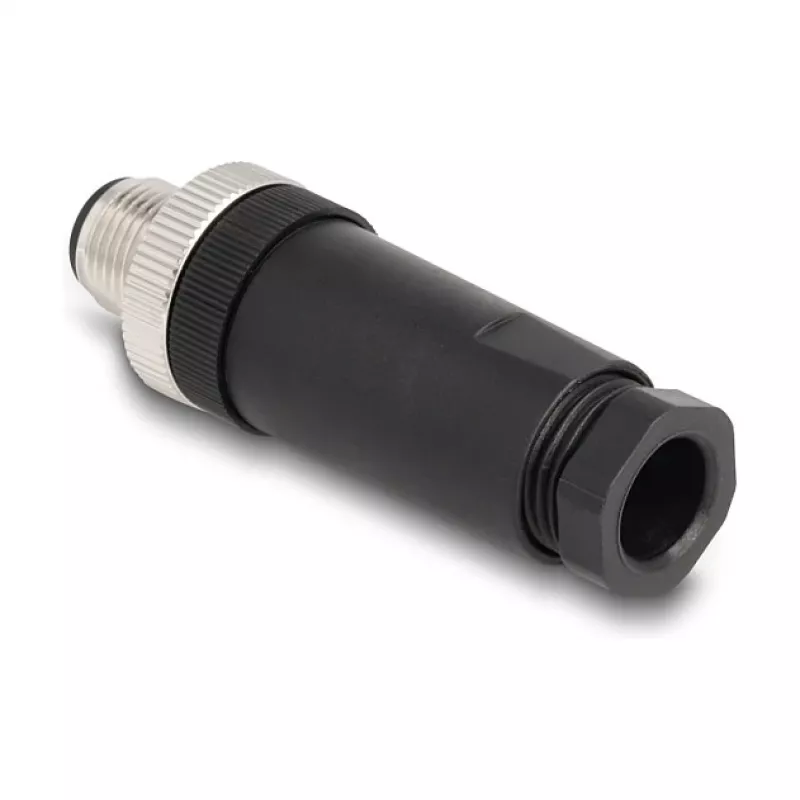

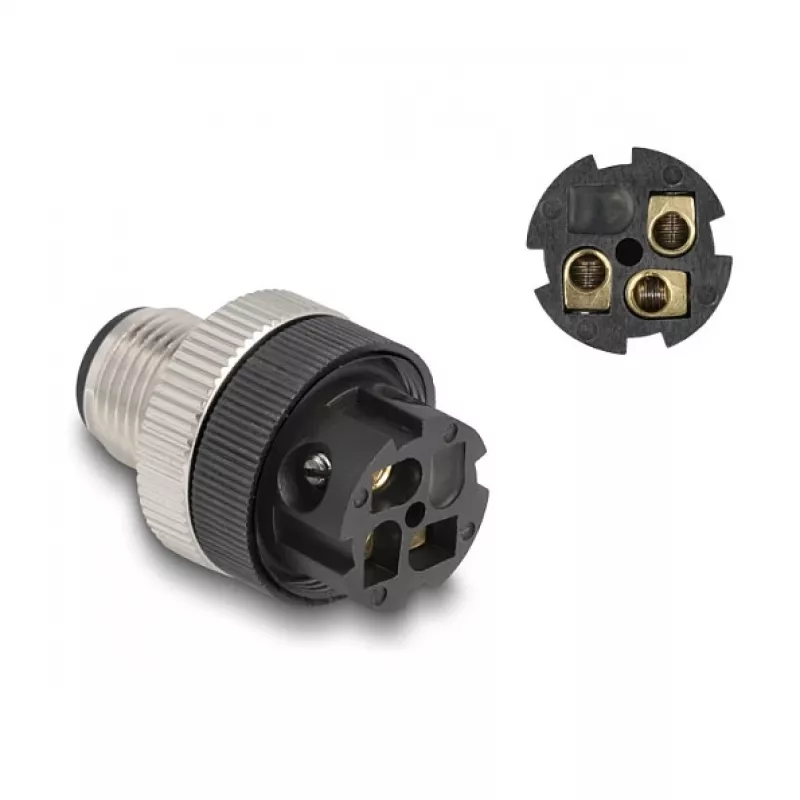

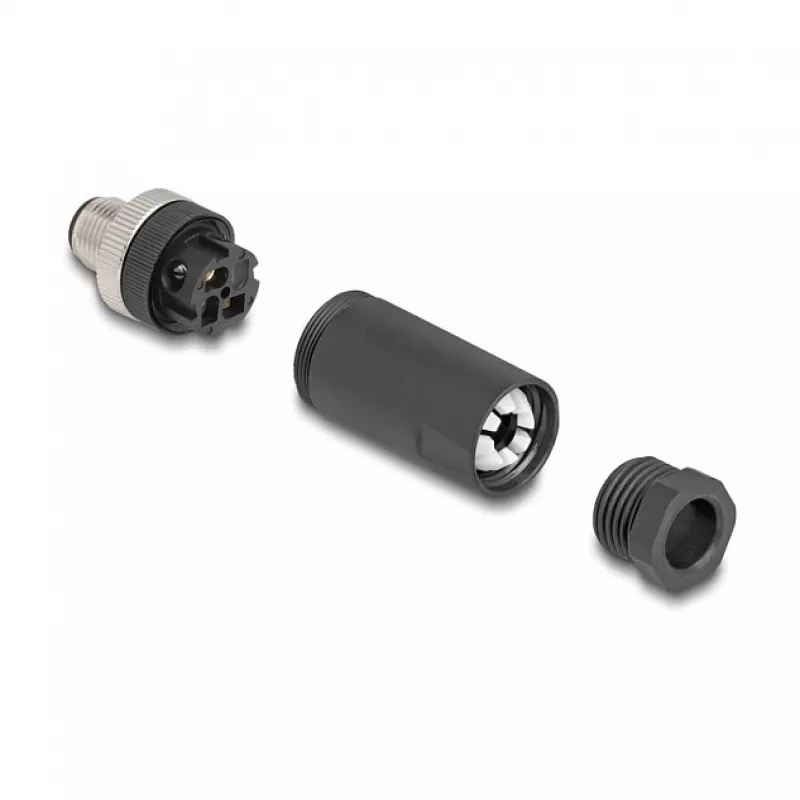

Conector M12 codificación A 3 polos macho DeLOCK 60566 conexión por tornillo negro

The DeLOCK M12 Connector A-coded 3 pin male (model 60566) provides an A-coded M12 interface with a screw terminal connection for attaching cable conductors. Designed for industrial and automation environments, this black connector enables a secure electrical connection between field wiring and devices with an M12 female port.

Advantages

The screw connection allows tool-secured, reliable wiring without soldering, and the A-coded M12 form factor ensures compatibility with standard A-coded M12 female ports. The compact, black housing offers robust mechanical protection and straightforward installation in machine control and automation setups.

Suitable for

• Machine control systems
• Industrial automation and sensors
• Field wiring to devices with A-coded M12 female connectors

Key specifications

• Connector type: M12 A-coded
• Gender: 3 pin male
• Connection type: Screw terminal
• Manufacturer: DELOCK
• Model/MPN: 60566
• EAN: 4043619605668
• Colour: Black

How to use

Strip the cable conductors to the recommended length, insert each conductor into the corresponding screw terminal, and tighten the screws to secure the connection. Then mount the M12 male connector into the mating A-coded M12 female port and screw the coupling nut to lock the connection. Ensure correct pin assignment and that screws are tightened to appropriate torque for reliable contact.

Recommendations

Use in environments where a robust screw-terminal M12 connection is required; verify cable cross-section compatibility with the screw terminals and follow device wiring diagrams and safety procedures during installation.
