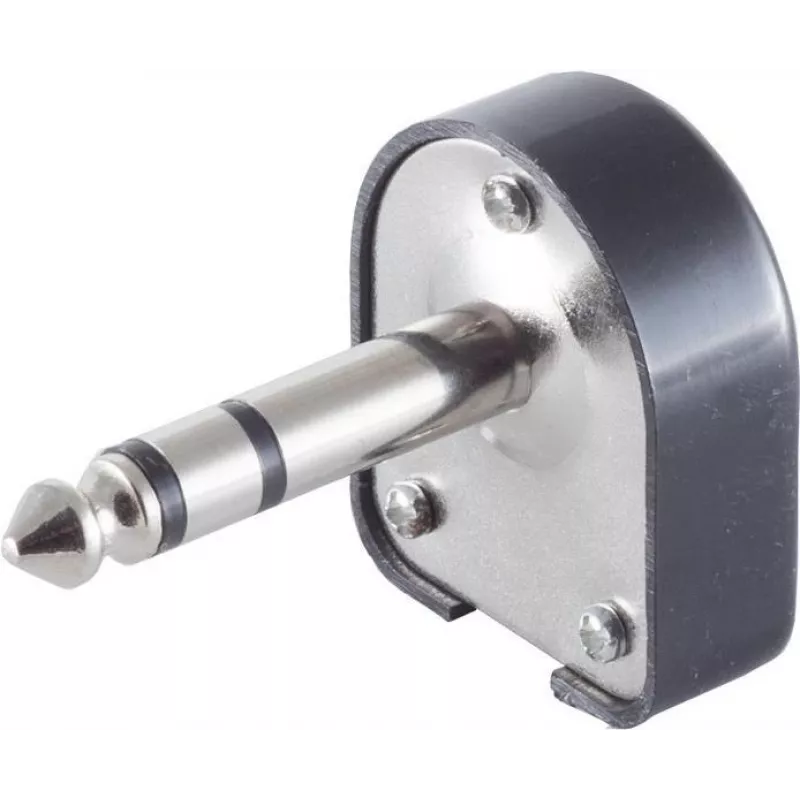

Conector macho estéreo ShiverPeaks 50100W 6,3 mm acodado – conector TRS de 6,3 mm

The ShiverPeaks 6.3 mm Right Angle Stereo Plug 50100W is a TRS connector engineered for connecting headphones, instruments and audio equipment that use standard 6.3 mm jacks. Its right-angle housing reduces the profile at the connection point, helping to minimize cable strain in tight racks, pedalboards or behind consoles while maintaining a three-conductor connection for left, right and ground channels. The connector is intended for use where a durable, low-profile stereo plug is required for reliable signal transfer.

Advantages

The right-angle design provides a compact connection that saves space and reduces stress on cable terminations. The three-conductor TRS configuration supports balanced or stereo unbalanced connections depending on the application. The construction offers stable mechanical contact and predictable audio performance when mated with standard 6.3 mm jacks. The plug is suitable for repeated insertions and for installations where an angled orientation improves cable routing and protection.

Suitable for

• Headphones and studio monitoring connections
• Guitar and keyboard outputs to amplifiers or pedals
• Patch bays and mixing console connections in confined spaces
• Portable equipment and rack-mounted gear where reduced profile is needed

Key specifications

• Connector type: 6.3 mm TRS (stereo, three-conductor)
• Orientation: right-angle
• Compatibility: standard 6.3 mm audio jacks (headphone and instrument sockets)
• Intended use: audio signal transmission for left, right and ground channels
• Mechanical design: low-profile plug for tight cable routing

How to use

Align the right-angle plug with the device's 6.3 mm socket and insert it fully until a secure connection is felt. Use standard shielded audio cable terminated to the plug's three conductors: tip for left, ring for right and sleeve for ground, following the device wiring scheme. For instrument or unbalanced stereo use, ensure correct wiring polarity and shielding to avoid noise. Remove the plug by pulling the housing rather than the cable to avoid straining the termination.

Recommendations

For reliable long-term performance, avoid bending the cable sharply at the plug exit and secure cables where possible to reduce mechanical stress. Inspect connections periodically for wear or poor contact, and replace the plug or cable if corrosion or intermittent signal occurs. Use the right-angle orientation where clearance behind gear is limited to protect both the connector and the device jack.
