Conector macho tipo F Brennenstuhl 1082050020 negro 230V 16A

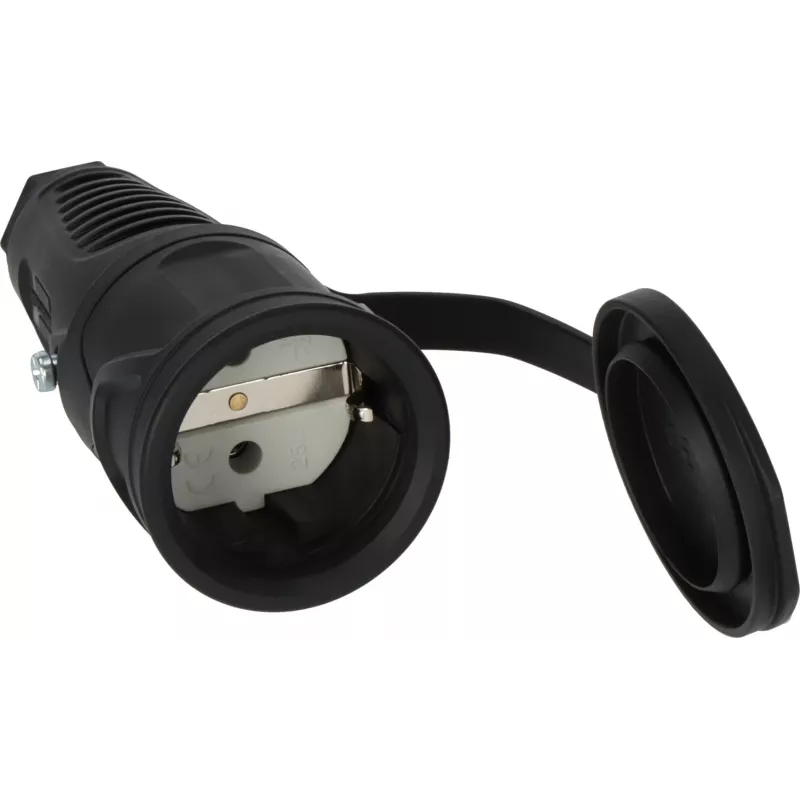

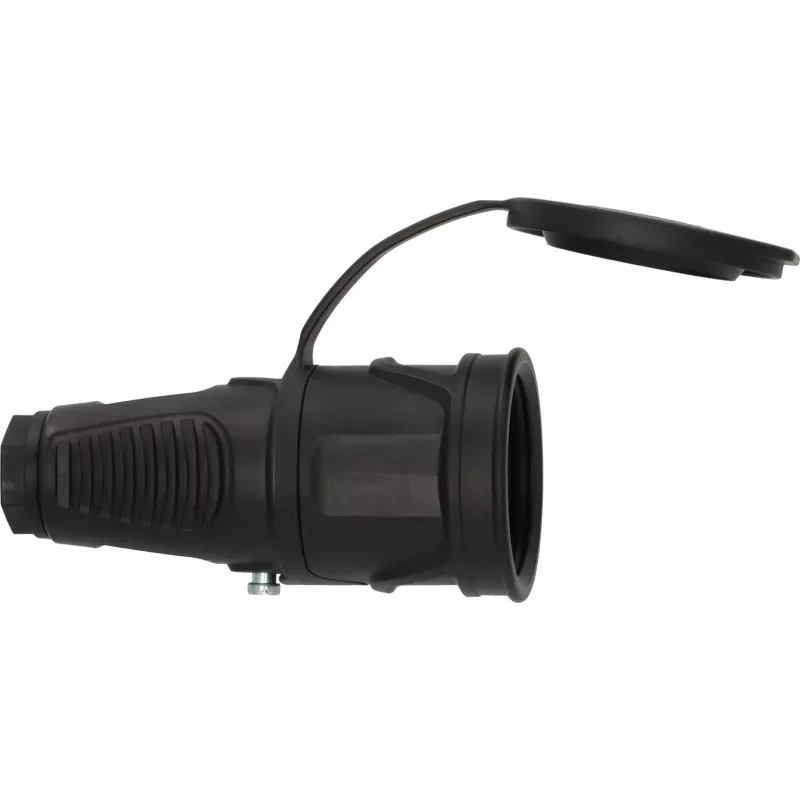

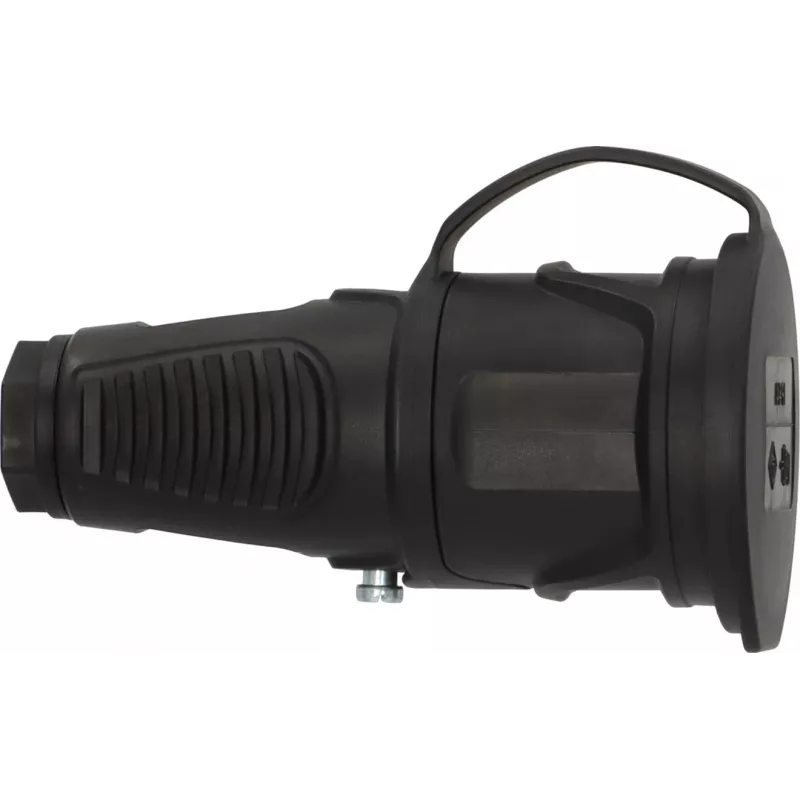

The Brennenstuhl 1082050020 earthing contact system coupling is designed to connect an extension cable or repair a damaged cable with an outer diameter of 6–13 mm. The Type F power plug supports 230 V AC and up to 16 A; its black rubber housing provides robust insulation and mechanical protection. With IP54 protection, the coupling is suitable for outdoor use where protection against dust and splashing water is required. The compact dimensions (10 mm height, 57 mm width, 71 mm depth) make it convenient for tight installations.

Advantages

The coupling offers reliable earth contact compatibility with standard Type F connectors and a durable rubber housing that improves grip and increases resistance to impacts. IP54 ingress protection helps protect internal contacts from dust and water splashes, extending service life in outdoor or workshop environments. Its compact size and straightforward design enable quick connection or repair of cables within the specified diameter range.

Suitable for

• Connecting or extending household and light-duty outdoor power cables (6–13 mm diameter)
• On-site repair of damaged Type F extension leads
• Temporary outdoor power supply where IP54 protection is sufficient

Key specifications

• Brand: Brennenstuhl
• Model / MPN: 1082050020
• EAN: 4007123688104
• Type: Type F earthing contact system coupling
• Rated voltage: 230 V AC
• Rated current: 16 A
• Cable diameter compatibility: 6–13 mm
• Housing material: rubber (black)
• Ingress protection: IP54
• Dimensions (H×W×D): 10 × 57 × 71 mm

How to use

Ensure the power is switched off before starting work. Strip the cable sheath and prepare conductors so they fit the coupling according to the specified 6–13 mm diameter range. Insert conductors into the coupling and secure them following the manufacturer's assembly method (tighten any clamps or screws until contacts are firm). Close the housing and verify that the earth contact is properly engaged. After assembly, test the connection under no-load conditions to confirm correct wiring before applying full power.
