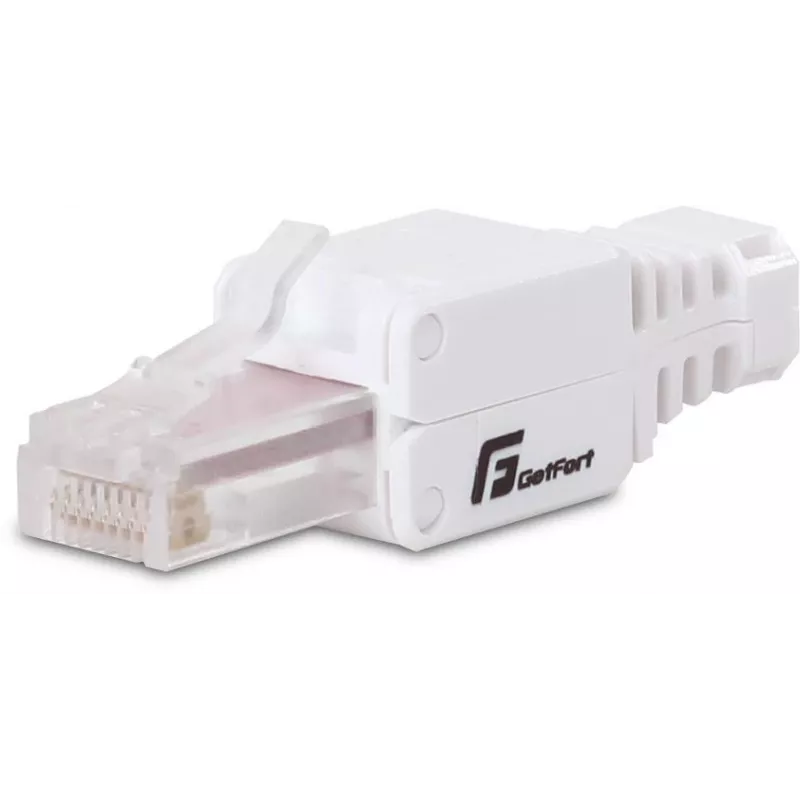

Conector modular RJ45 Cat.5e UTP 8P8C sin herramienta GETFORT GF-RJ45-5UTP-MB

This tool-less RJ45 modular connector delivers reliable Gigabit Ethernet performance for field-terminated Cat.5e UTP cabling. Its insulation-displacement contacts accept solid or stranded copper wires from 22 to 26 AWG without crimping tools, enabling fast, repeatable terminations in patch panels, wall plates, and surface-mount boxes. Gold-plated contacts and a high-impact polycarbonate housing ensure long-term signal integrity and mechanical durability.

Advantages

Tool-less IDC termination cuts installation time and eliminates the need for specialized crimp tools. The transparent housing allows visual verification of wire placement before closing, reducing rework. 50µ" gold plating over nickel resists corrosion and maintains low contact resistance through 750 mating cycles. UL 94V-0 rated material provides fire safety in structured cabling environments.

Suitable for

• Ethernet networks up to 1000 Mbps (Gigabit Ethernet)
• Data and telecommunications cabling in commercial and residential buildings
• Field termination of Cat.5e UTP solid or stranded cable, 22–26 AWG
• Patch panels, keystone wall plates, and surface-mount boxes

Key specifications

• Connector type: RJ45 (8P8C)
• Category: Cat.5e, unshielded (UTP)
• Termination: tool-less IDC, no crimp tool required
• Wire compatibility: solid and stranded copper, 22–26 AWG
• Data rate: up to 1000 Mbps, bandwidth 100 MHz
• Contact plating: 50µ" gold over nickel
• Housing: high-impact polycarbonate, UL 94V-0
• Durability: 750 mating cycles minimum
• Operating temperature: -10°C to 60°C
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Color: Transparent / Clear

Recommendations

For installers and network technicians who need fast, reliable field terminations without crimping tools, this connector is an excellent choice. Its transparent housing and robust construction make it ideal for high-volume structured cabling projects.
