Conector modular RJ45 Intellinet, Cat5e, UTP, 2 polos, para cable flexible, contactos chapados en oro de 15 µ, pack de 100

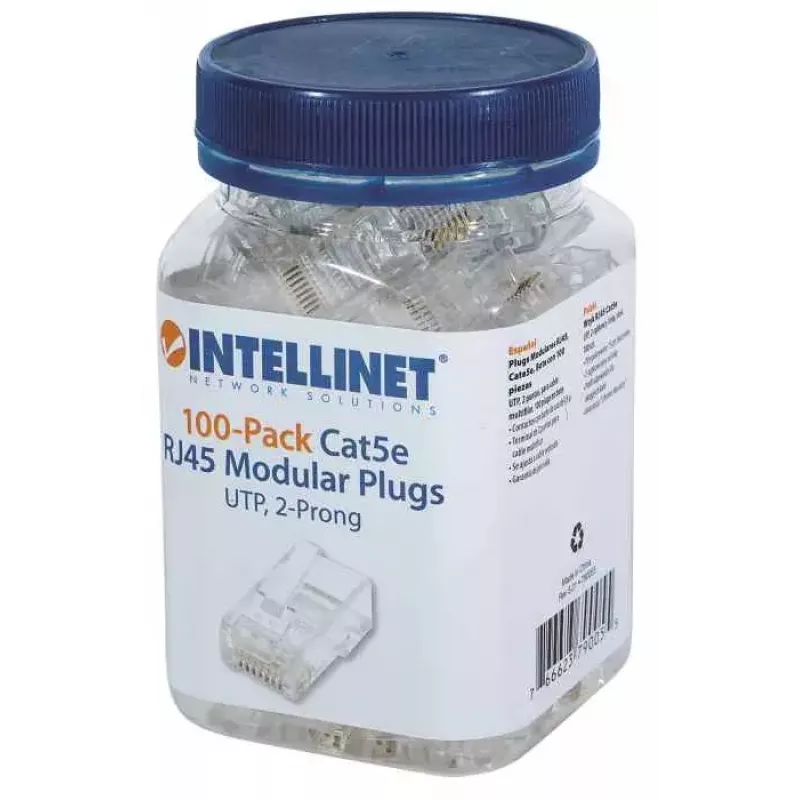

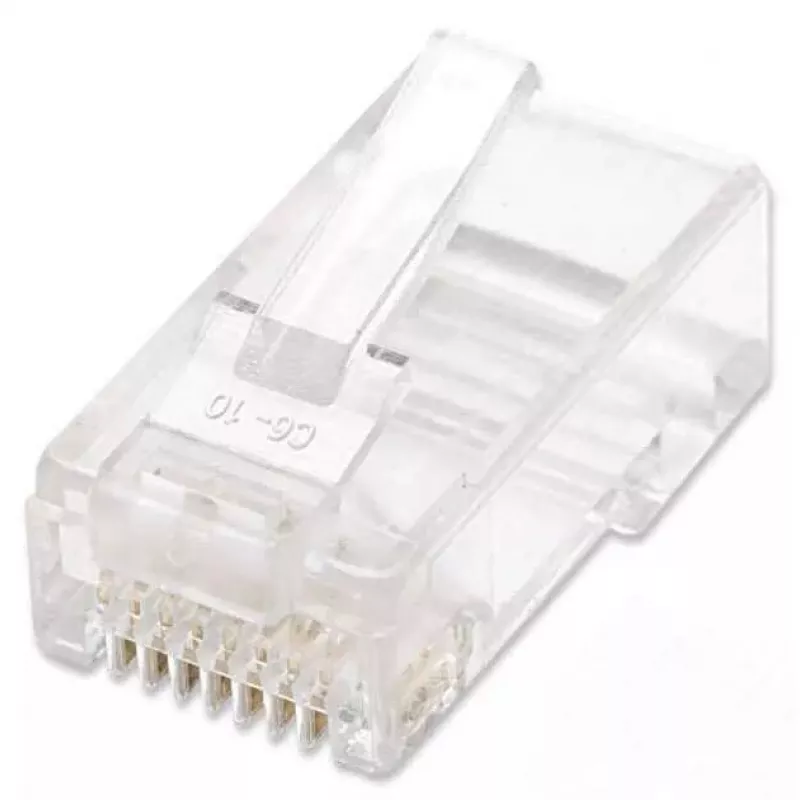

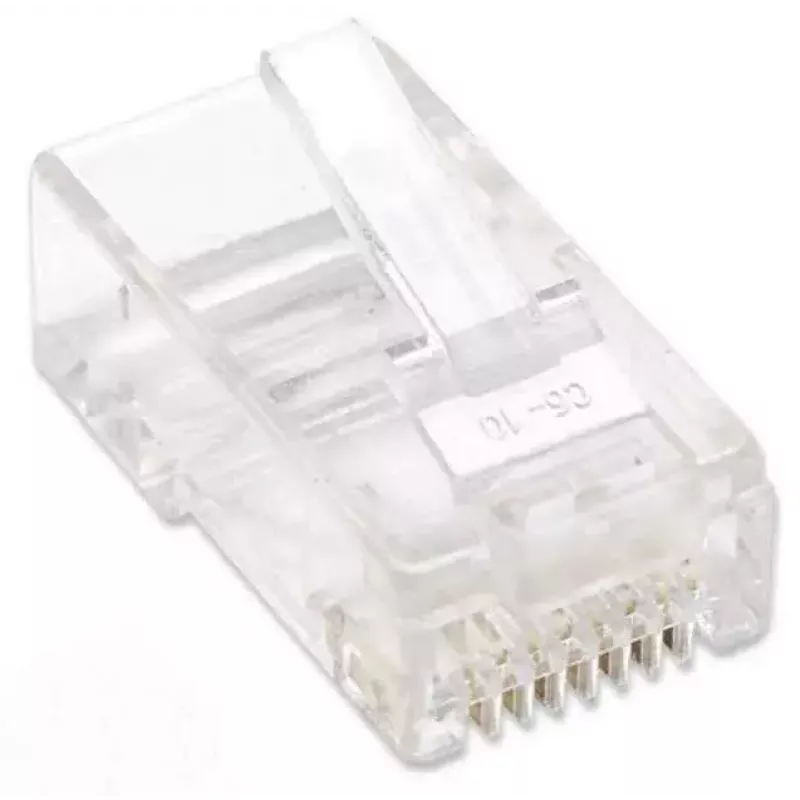

Intellinet RJ45 modular plugs are made for Cat5e UTP stranded cable and come in a pack of 100. Each plug has 15 µ gold-plated contacts for reliable electrical connection and is molded from transparent polycarbonate to provide durability and clear visibility of conductor alignment. The lightweight design (0.22 kg per pack) suits larger installation jobs and repeated termination tasks.

Advantages

These RJ45 modular plugs offer standard 8P8C compatibility with Cat5e UTP stranded wire and deliver consistent contact through 15 micron gold plating. The clear polycarbonate housing resists cracking and lets technicians verify wire order before insertion and crimping. Supplied in a 100-piece pack, they reduce the need for frequent reorders during medium to large projects.

Suitable for

• Termination of Cat5e UTP stranded network cables
• LAN installations and repairs
• Structured cabling projects requiring bulk connectors
• Tool-based crimping in office or data-center environments

Key specifications

• Connector type: RJ-45 (8P8C)
• Cable compatibility: Cat5e UTP stranded
• Contacts: 15 µ gold plating
• Material: Transparent polycarbonate
• Quantity: 100 plugs per pack
• Weight: 0.22 kg (pack)
• Brand: INTELLINET, MPN 790055

How to use

Strip the cable jacket to expose the twisted pairs, arrange conductors according to the chosen wiring standard (T568A or T568B), insert the wires fully into the plug until the conductor ends reach the contacts, then crimp using a compatible RJ45 crimping tool. Verify the pair order and continuity with a cable tester after termination to ensure correct wiring and reliable connectivity.

Recommendations

Use these plugs with stranded Cat5e UTP cable and a matching crimp tool designed for modular RJ45 connectors. Avoid using on solid core cable or on shielded cable unless the plug specification explicitly supports those types. Inspect each terminated plug visually and electrically to confirm secure contact and correct pair sequencing.
