Lanview LVN127095 Conector de hilo

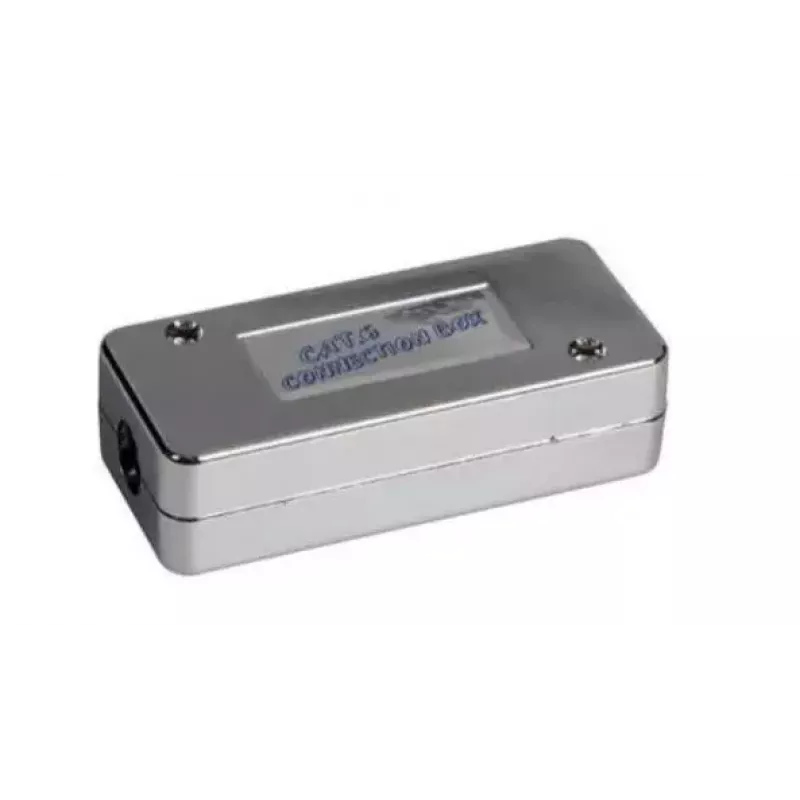

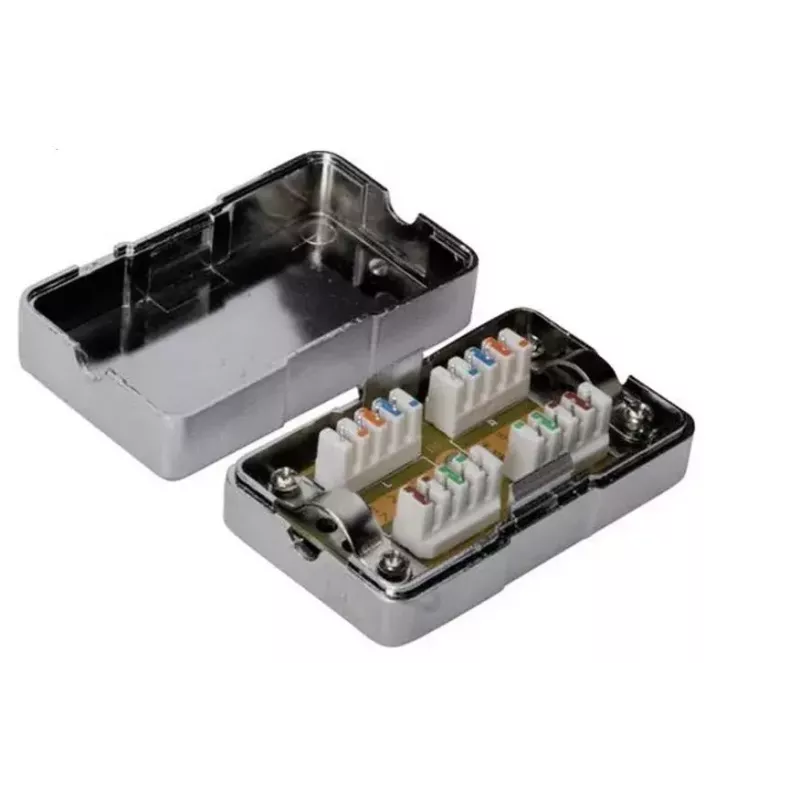

Using LSA clamps this UTP Cat6 connection box is used to extend any Cat 6 4 pair unshielded cables. The Lanview LVN127095 wire connector supports U/UTP cable termination and provides IP20 protection. Its compact dimensions of 37 x 83.7 x 23 mm and lightweight 52 g design make it suitable for installation in confined spaces and standard network cabinets.

Advantages

The Lanview LVN127095 offers a standardized LSA clamp termination for Cat6 U/UTP cables, ensuring consistent contact and straightforward installation. IP20 protection guards against solid objects, while the small form factor and low weight simplify handling and mounting in patch panels, distribution boxes, or wall-mounted enclosures.

Suitable for

• Extending or repairing Cat6 U/UTP (4 pair) Ethernet cabling
• Patch panel and distribution box installations
• Small server rooms, office networks, and residential LAN wiring

Key specifications

• Brand: Lanview
• Model / MPN: LVN127095
• EAN: 5704174318804
• Cable type: U/UTP Cat6 (4 pair, unshielded)
• Termination: LSA clamp
• Protection rating: IP20
• Dimensions: 37 x 83.7 x 23 mm
• Weight: 52 g
• Made in: China

How to use

Prepare the Cat6 U/UTP cable by stripping the outer sheath to expose the four twisted pairs. Follow standard color coding and insert each conductor into the corresponding LSA clamp slot in the connector, then press or punch down the clamp to secure the conductors. Close the connection box according to the manufacturer's instructions and mount the box in the desired location. Verify connectivity and signal quality after installation.

Recommendations

Use the Lanview LVN127095 for indoor installations only and maintain IP20-rated environmental conditions. Avoid exposure to moisture and extreme temperatures. For best performance, use with standard Cat6 U/UTP cables and verify pairs and pinout before finalizing the termination.
