Conector modular RJ45 Intellinet, Cat6A, UTP, 2 puntas, para cable flexible, contactos chapados en oro de 15 µ, pack de 80

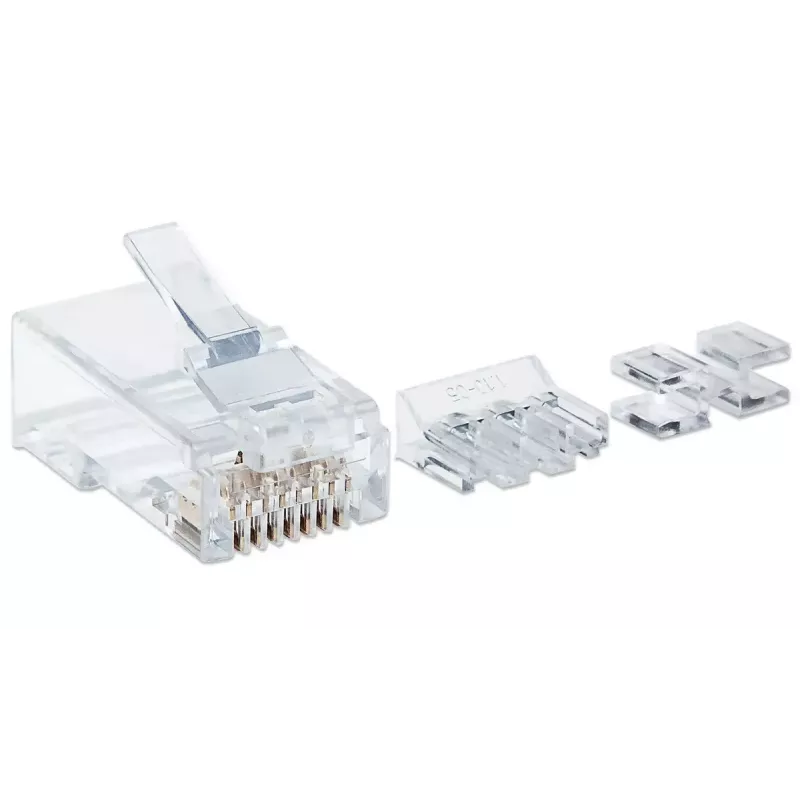

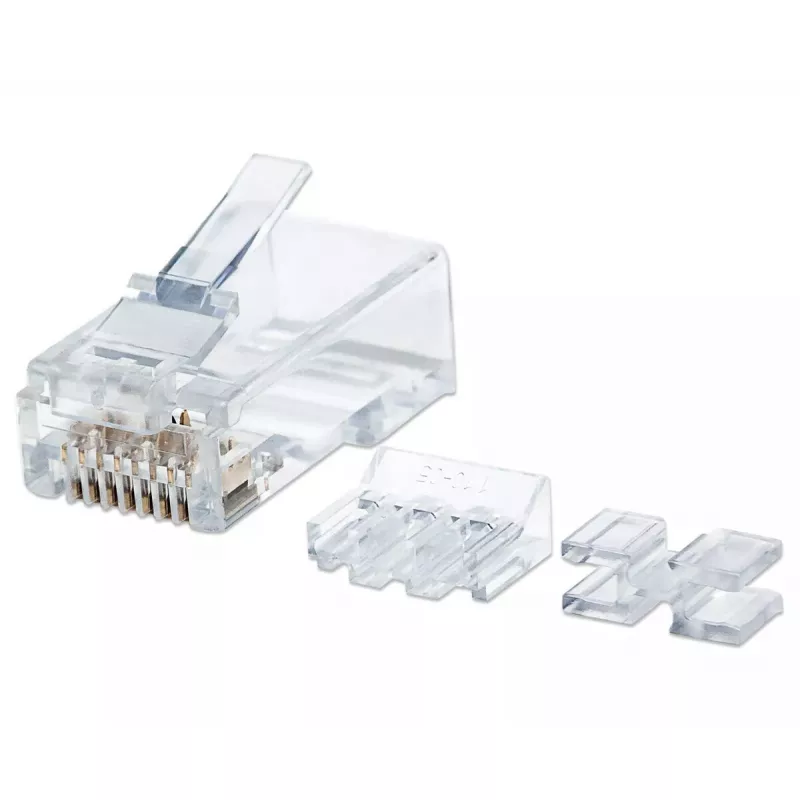

Intellinet Modular Plugs model 790666 are Cat6A UTP 8P8C (RJ45) connectors designed for stranded network cable. Each plug has 15 µ gold-plated contacts and a two-prong termination that supports 22–26 AWG stranded conductors. Supplied in an 80-piece pack with a transparent housing, these modular plugs are intended for unshielded twisted-pair installations and are compatible with standard RJ45 network ports and crimping tools.

Advantages

The modular plugs provide Cat6A performance for UTP cabling with 15 µ gold-plated contact surfaces to ensure reliable signal transmission and corrosion resistance. A two-prong terminal design accommodates stranded wire reliably, and the 8P8C standard form factor ensures compatibility with Category 3 through Category 6A applications. The plugs fit round cables and are covered by a lifetime warranty.

Suitable for

• Termination of Cat6A UTP stranded network cables
• Bulk installations and patch panel work
• Field or workshop crimping with standard RJ45 crimp tools
• Upgrading or repairing Ethernet connections supporting Cat3–Cat6A standards

Key specifications

• Model: Intellinet 790666
• Connector type: RJ45 (8P8C)
• Cable type: UTP, stranded wire, round cable
• Contact plating: 15 µ gold
• Termination: two-prong terminal for stranded conductors
• Supported conductor sizes: 22–26 AWG

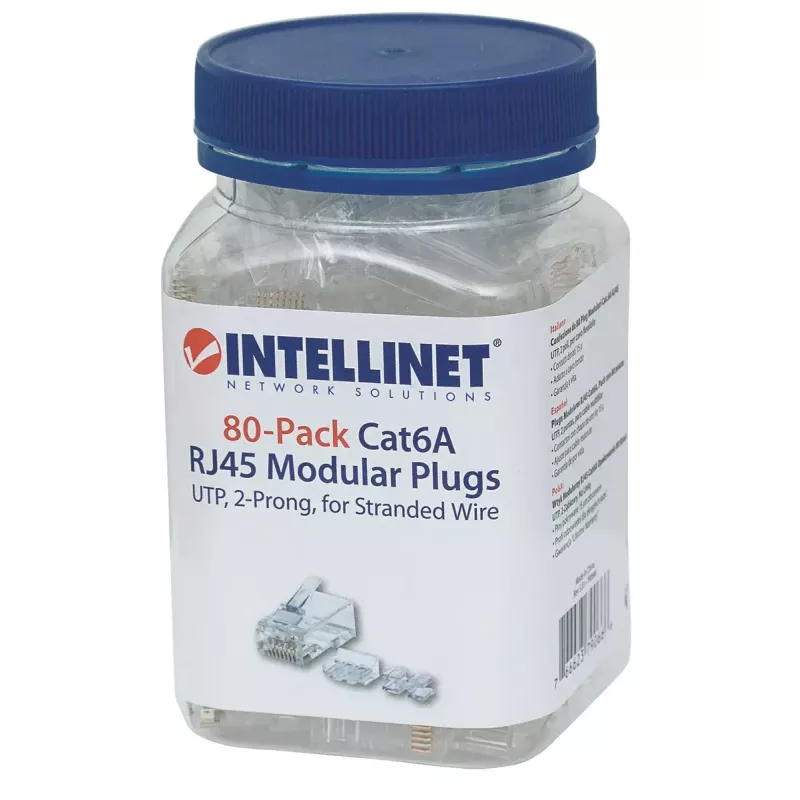

• Pack quantity: 80 pcs
• Colour: Transparent
• Compatibility: Category 3, 4, 5, 5e, 6 and 6A

How to use

Prepare the stranded cable by stripping the outer jacket to expose the twisted pairs, untwist and align the conductors to the chosen wiring standard (T568A or T568B). Insert the conductors fully into the modular plug so each wire reaches its contact slot and the jacket seats inside the plug. Use a compatible RJ45 crimping tool to crimp the plug, ensuring the two-prong terminal pierces and secures the stranded conductors. Verify continuity and wiring order with a cable tester after crimping.

Recommendations

For best results, use these Cat6A UTP modular plugs with stranded cables within the 22–26 AWG range and standard RJ45 crimp tools rated for 8P8C connectors. Test each terminated cable with an Ethernet cable tester to confirm pair continuity and correct pairing before deployment.
