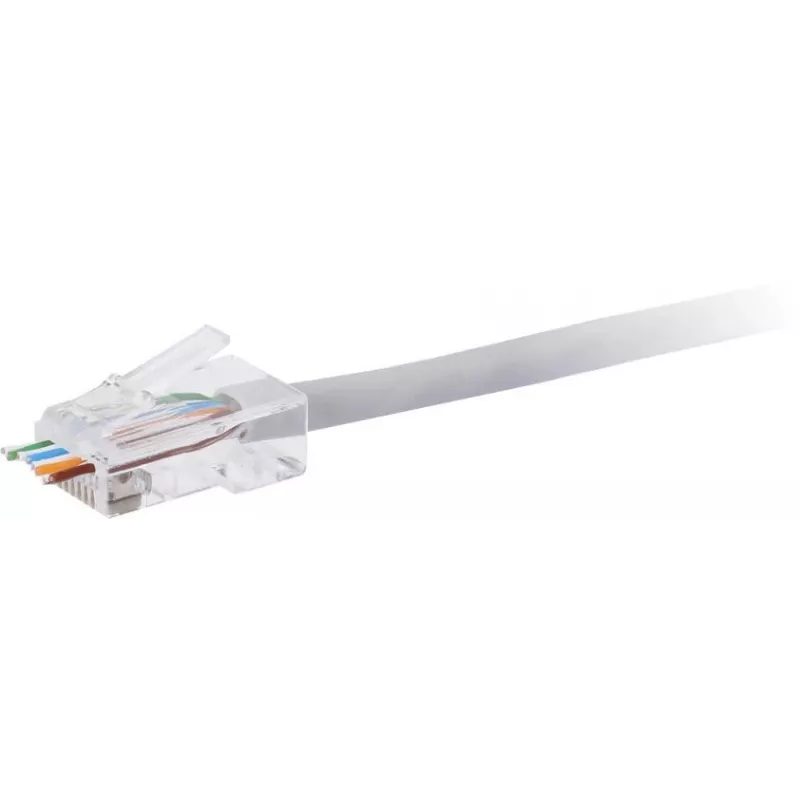

GETFORT conector pasante RJ45 Cat.5e UTP 8P8C pack de 100

The GETFORT GF-RJ45P-5UTP-100 is a high-quality RJ45 pass-through connector designed for professional Ethernet network installations. This pack contains 100 pieces of Cat.5e unshielded (UTP) connectors, ideal for creating custom-length patch cables with solid or stranded 23-26 AWG conductors. The pass-through design allows wires to extend through the connector for easy verification of the color code before crimping, ensuring reliable terminations every time.

Advantages

These connectors feature a transparent housing for quick visual inspection of wire placement, reducing installation errors. The 50-micron gold-plated contacts provide excellent conductivity and corrosion resistance, supporting Gigabit Ethernet speeds up to 1000 Mbps. With a durability of 750 mating cycles, they offer long-lasting performance in high-use environments.

Suitable for

• Structured cabling in offices, data centers, and home networks
• Custom Ethernet patch cable assembly
• Network maintenance and repair
• Installations requiring TIA/EIA-568-C.2 compliance

Key specifications

• Connector Type: RJ45 8P8C
• Category: Cat.5e
• Shielding: UTP (Unshielded)
• Contact Plating: 50 Micron Gold
• Housing Material: High-Impact Polycarbonate (PC)
• Conductor Compatibility: Solid and Stranded, 23-26 AWG
• Max Data Rate: 1000 Mbps (Gigabit Ethernet)
• Max Frequency: 100 MHz
• Termination Method: Crimp (Pass-Through)

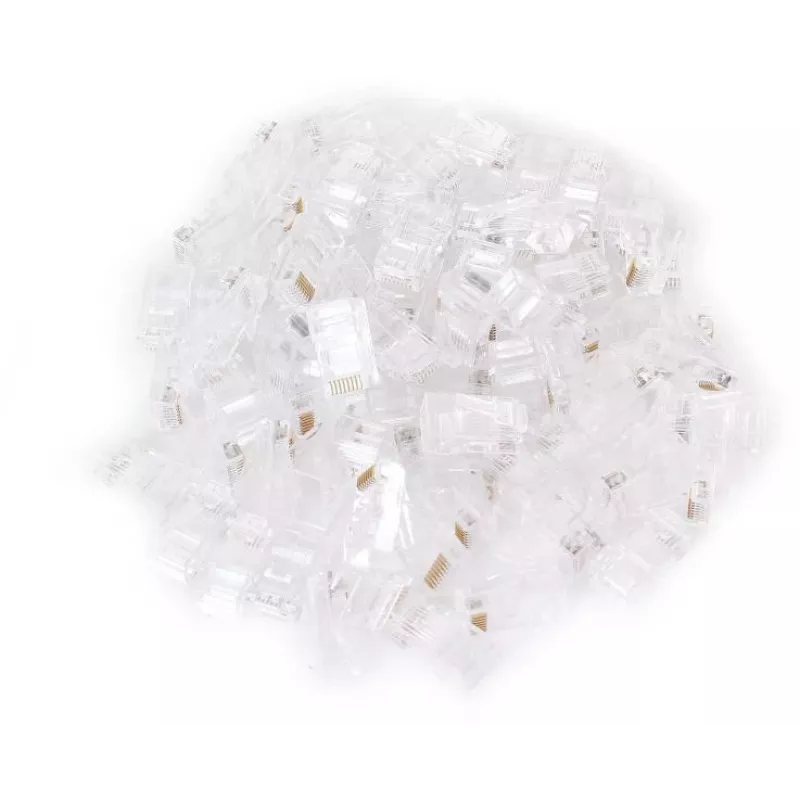

• Pack Quantity: 100 pieces
• Color: Transparent
• Compliance: TIA/EIA-568-C.2, RoHS
• Durability: 750 Mating Cycles
• Operating Temperature: -10°C to 60°C

Recommendations

For best results, use with a compatible pass-through crimping tool and Cat.5e or higher cable. Ensure proper wire sequence (T568A or T568B) before crimping. These connectors are not suitable for outdoor or shielded applications.
