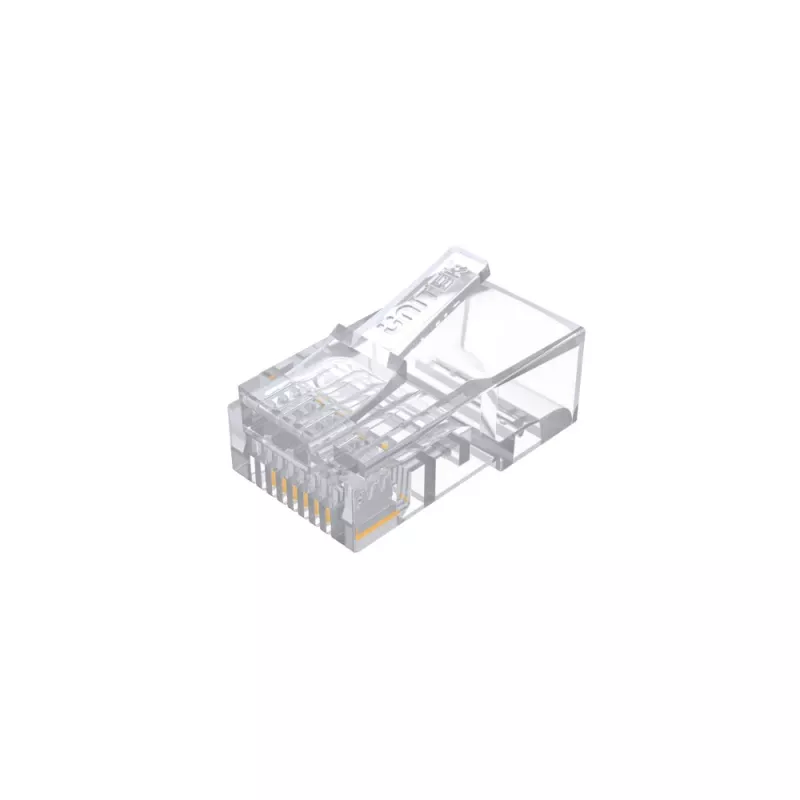

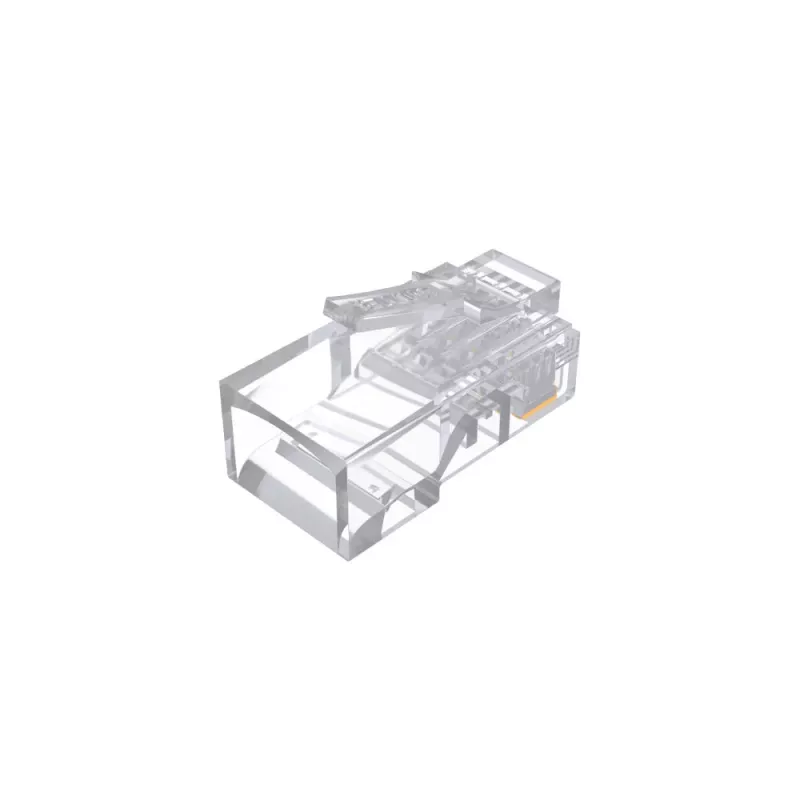

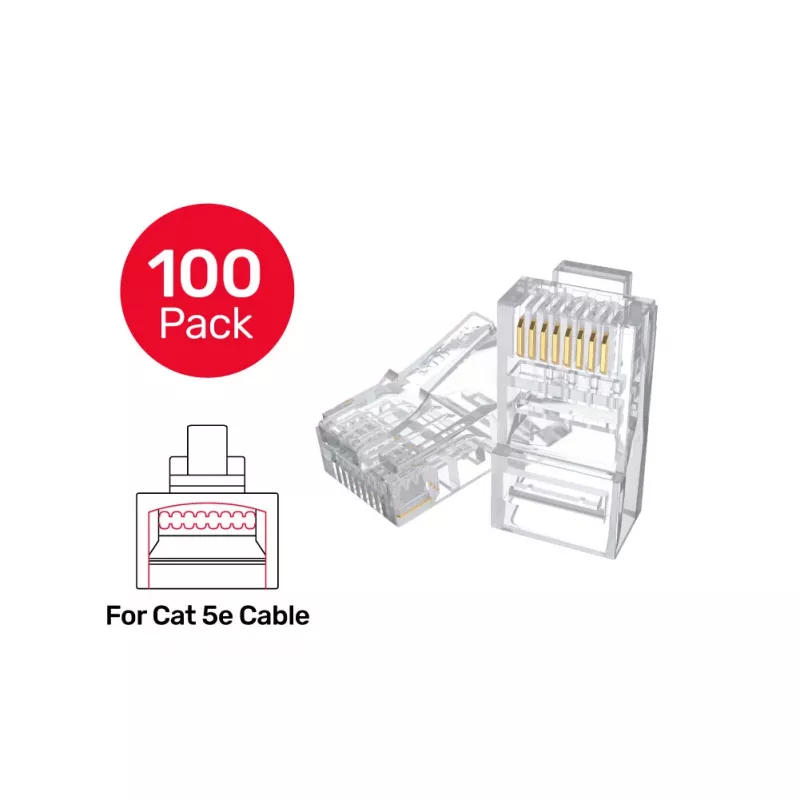

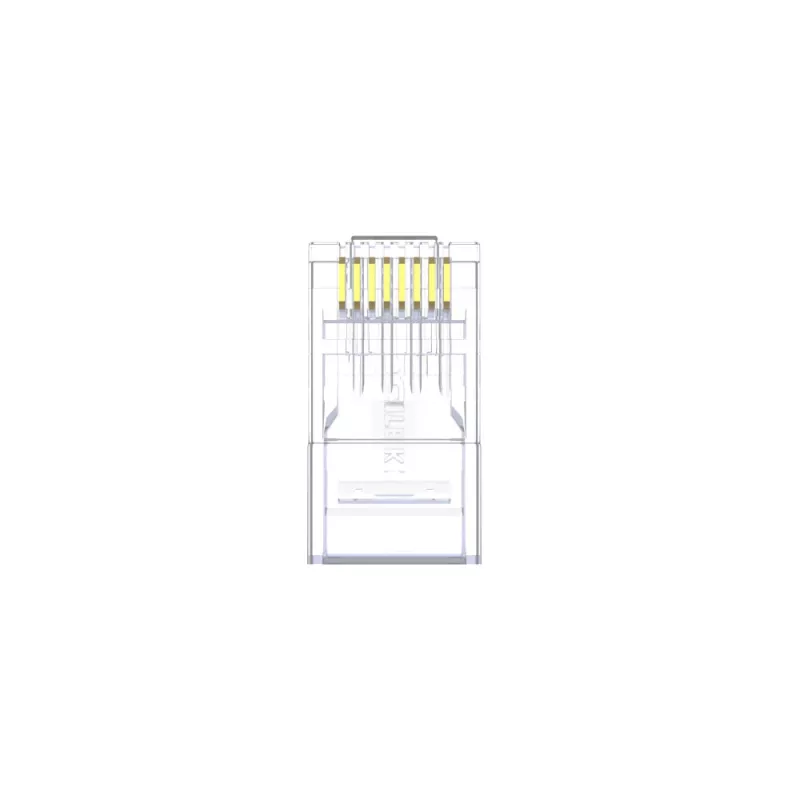

Conector modular RJ45 UNITEK (8P8C) Cat. 5e, pack de 100

Hand-crimping Ethernet cables often leads to unreliable connections and wasted connectors. The UNITEK RJ45 Modular Plug (8P8C) Cat. 5e, 100-Pack provides a bulk supply of high-quality, transparent connectors that make crimping straightforward and consistent. Each plug is engineered for solid and stranded conductors, ensuring a secure fit for your network cabling projects.

Who is it for

Network installers, IT technicians, and DIY enthusiasts who need a dependable, cost-effective solution for creating custom-length patch cables or repairing existing ones. Whether you're wiring a home office, a small business, or a data center, these plugs deliver the performance required for Gigabit Ethernet.

Main features

• 100 pieces per pack – ample quantity for large projects or ongoing maintenance.
• Cat. 5e rated – supports up to 1000BASE-T Gigabit Ethernet and frequencies up to 100 MHz.
• 8P8C configuration – standard RJ45 interface with 8 positions and 8 gold-plated contacts.
• Unshielded (UTP) design – ideal for UTP cable installations where shielding is not required.
• Transparent polycarbonate housing – allows visual inspection of wire order before crimping, reducing errors.
• Gold-plated phosphor bronze contacts – 3µm plating ensures low contact resistance and corrosion resistance for over 750 mating cycles.
• Accepts 24-26 AWG solid or stranded conductors – versatile for various cable types.
• RoHS compliant – meets environmental standards for hazardous substances.

Specifications

• Connector Type: RJ45
• Connector Standard: 8P8C (8 Positions, 8 Conductors)
• Cable Category Compatibility: Cat. 5e
• Shielding Type: UTP (Unshielded Twisted Pair)
• Contact Material: Phosphor Bronze
• Contact Plating: Gold-plated, 3µm
• Housing Material: Polycarbonate (PC)
• Conductor Compatibility: Solid and Stranded
• Wire Gauge Compatibility: 24-26 AWG
• Number of Contacts: 8
• Quantity per Pack: 100 pieces
• Color: Transparent
• Termination Method: Crimp
• Application: Ethernet Network Cabling
• Compliance: RoHS
• Durability (Mating Cycles): >750 cycles

Tips

For best results, use a quality crimping tool and verify wire order through the transparent housing before crimping. These plugs are compatible with standard Cat. 5e UTP cables and are ideal for patch cable assembly.
